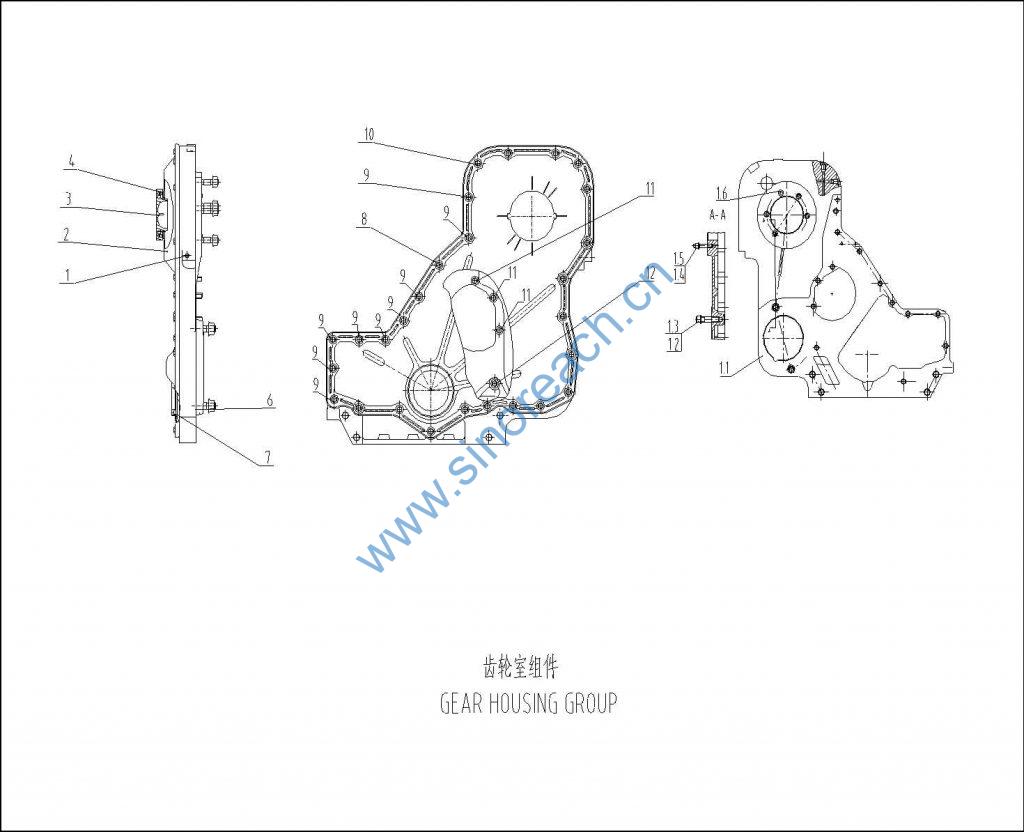

D02B-000-47 齿轮室组件 GEAR HOUSING GROUP

1 D02B-001-40 齿轮室装配部件 GEAR HOUSING ASSY 1
1.1 S00011222 齿轮室螺塞装配部件 SCREW PLUG ASSEMBLY, GEAR HOUSING 1
1.2 B00000836 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 2 GB/T6177-M12-Y
1.3 B00001125 双头螺柱 STUD 2 GB/T899-GM12-M1240-8.8-Y 1.4 B00000833 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 4 GB/T6177-M10-Y 1.5 B00001104 双头螺柱 STUD 4 GB/T899-GM10-M1035-8.8-Y
1.6 B00001391 O形橡胶密封圈 O-RING 1 GB3452.1-92.65 2 D02B-102-40 齿轮室罩盖 COVER 1 3 D02B-108-01B 齿轮室加油螺盖 GEAR HOUSING OIL FILL SCREW CAP 1 4 D02B-109-03 螺盖密封圈 SEALING RING 1 5 D02B-106-40 PTO接口垫片 PTO GASKET 1 6 D02B-104-02A 曲轴前端油封 CRANKSHAFT FRONT SEAL 1 7 B00002147 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 1 Q/SC622-M845
8 B00002150 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 9 Q/SC622-M850 9 D02B-300-01 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 17 10 B00002135 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 3 Q/SC622-M820-10.9
11 B00002142 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 1 Q/SC622-M8*35
12 D02B-105-40 PTO接口盖板 PTO PLATE 1
