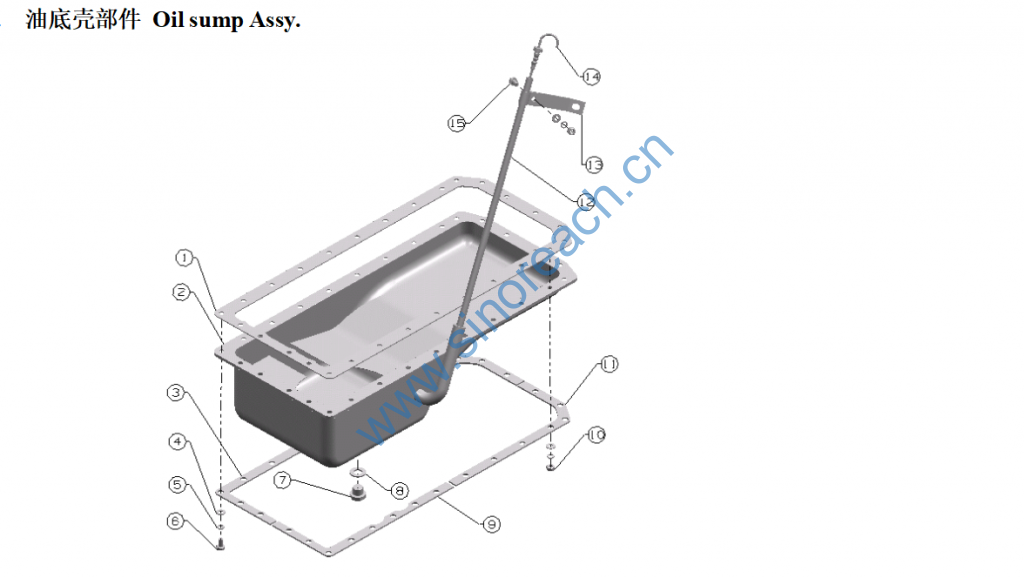

油底壳部件 Oil sump Assy.

1 HA0189 4100QB-01-054A 油底壳垫片 Oil sump washer 1
2 HA01215 4100QB-01.06F.01 油底壳焊合件 Welded oil sump seaming 1
3 HA01243 4100QB-01.06D.01-009 加强板Ⅱ Reinforced plate II 1
4 HB063T GB93-1987 垫圈 Sping washer 8 15
5 HB066P GB/T 97.1-2002 垫圈 Washer 8 15
6 HB049 GB898-88 螺柱 Bolt AM8×20 8
7 HA0140 4100QB-1A-01.06-001 放油螺塞 Oil drain plug 1
8 JB982-77 A型组合垫圈 Combination washer 18 1
9 HA01244 4100QB-01.06D.01-010 加强板Ⅲ Reinforced plate III 1
10  HB03147 GB/T 6170-2000 螺母 Nut M8 17
11 HA01242 4100QB-01.06D.01-008 加强板Ⅰ Reinforced plate I 1
12 HA01535 4100QB-01.06.03-DF 油尺套管焊合件 Welded oil dipstick sleeve 1
13 HA01562 4100QB-01.06-004-DF 支承板 Support board 1
14 HF03101 4100QB-DF 油尺合件 Oil dipstick assy 1
15 HB03290 GB-T5783_M8X16 螺栓 Bolt M8×16 1
