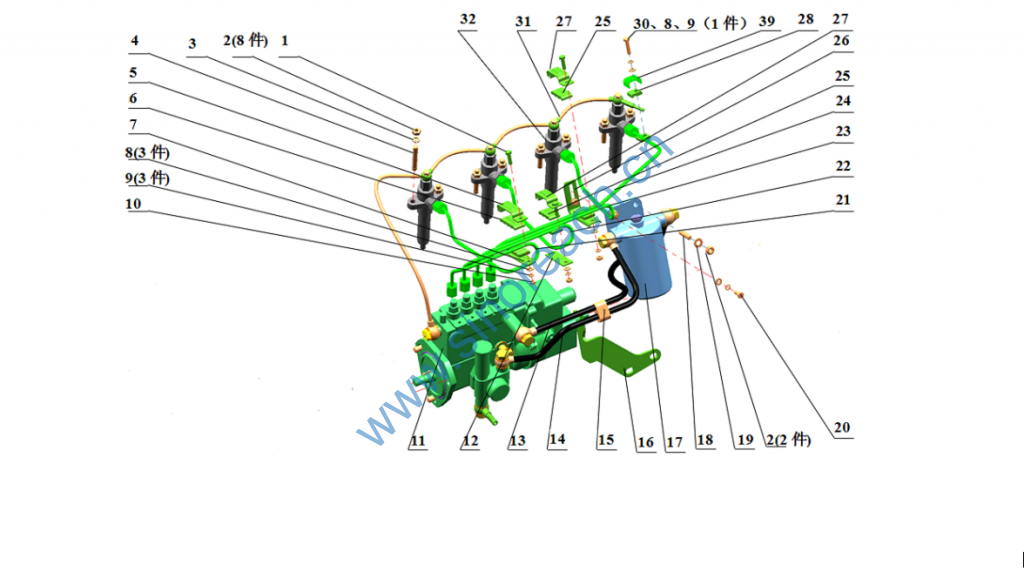

燃油系统 fuel system.

1.  GB/T 5783-2000 螺栓 Bolt M6×20 3
2.  GB/T 6170-2000 螺母 Nut M8 10
3.  GB93-1987 垫圈 Sping washer 8 8
4.  GB898-88 螺柱 Bolt AM8×45-8.8 8
5.  HA11921 4100QB-2-11.01.04-003 四缸管夹上夹板 4 cylinder pipe clamp up 1
6.  HA11165 4100QB-2-11.01.04-002 四缸管夹橡胶垫 Rubber pad, 4 cylinder pipe clamp 2
7.  HA11920 4100QB-2-11.01.04-001 四缸管夹下夹板 4 cylinder pipe clamp lower 1
8.  GB/T 97.1-2002 垫圈 Washer 6 4
9.  GB93-1987 垫圈 Sping washer 6 4
10.  GB/T 6170-2000 螺母 Nut M6 3
11.  4PL118或 BHF4A090012或 喷油泵总成 fuel pump 1
4QTF63 BH4QT85R9
12.  HA11910 4100QB-11.01.01A-001 三缸管夹下夹板 3 cylinder pipe clamp lower 2
13.  HA11560 4100QB-11.03D 柴滤出油管 Diesel filter outlet pipe 1
14.  HA11559 4100QB-11.02D 柴滤进油管 Diesel filter inlet pipe 1
15.  HA11564 4100QB-11.07A 输油胶管夹 Fuel delivery rubber tube clamp 1
16.  HA0112 4100QB-01-036B 燃油泵支撑 Fuel pump support 1
17.  HA11996 CX0708B 柴油滤清器总成 Fuel filter assy 1
18.  GB898-88 螺柱 Bolt AM8×22 2
19.  GB/T 97.1-2002 垫圈 Washer 8 2
20.  GB/T 5783-2000 螺栓 Bolt M6×12 2
21.  HA11238 4100QB-11.01-001A-PL Ⅰ缸高压油管 Ⅰcylinder High-pressure fuel pipe 1
22.  4100QB-11.01-002A-PL Ⅱ缸高压油管 Ⅱcylinder High-pressure fuel pipe 1
23.  4100QB-11.01-003A-PL Ⅲ缸高压油管 Ⅲcylinder High-pressure fuel pipe 1
24.  4100QB-11.01-004B-PL Ⅳ缸高压油管 Ⅳcylinder High-pressure fuel pipe 1
25.  HA1111 4100QB-11.01.01A-002 三缸管夹橡胶垫 Rubber pad, 3 cylinder pipe clamp 4
26.  HA1156 4100QB-11.01.02B-001 两缸管夹下夹板 2 cylinder pipe clamp lower 1
27.  HA11911 4100QB-11.01.01A-003 三缸管夹上夹板 3 cylinder pipe clamp up 2
28.  HA11160 4100QB-11.01.03A-002 单缸管夹橡胶垫 Rubber pad, single，cylinder pipe clamp 2
29.  HA11918 4100QB-11.01.03A-001 单缸管夹夹板 Single cylinder pipe clamp 1
30.  GB/T 5783-2000 螺栓 Bolt M6×25 1
31.  HA11522 4100QB-11.05-Ⅱ 喷油嘴回油管总成 Oil return pipe assy, injector 1
32.  喷油器总成 Injector assy P46-40 4
