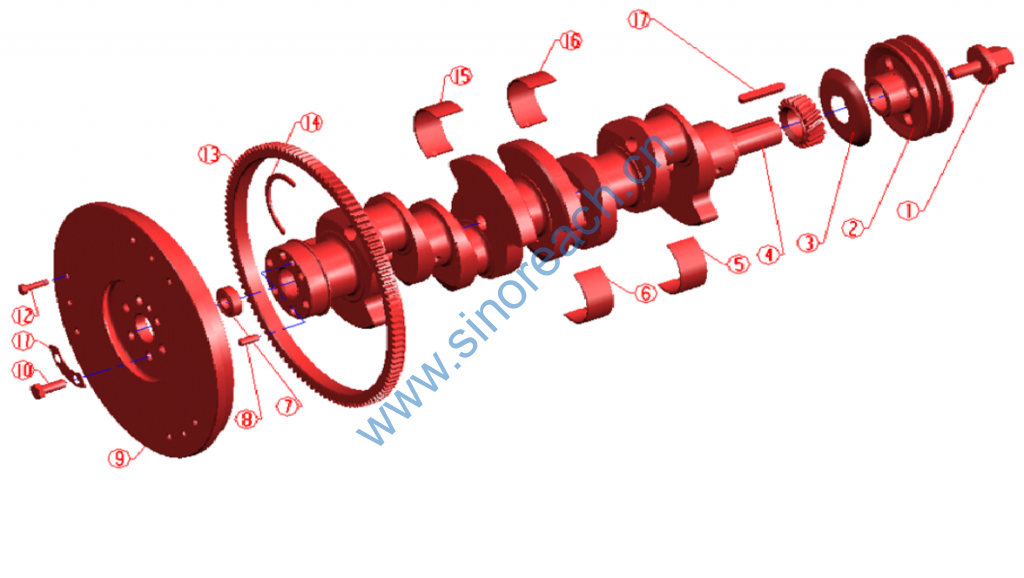

曲轴飞轮总成 Crankshaft flywheel clutch Assy.

1.  HA051 4100QB-05-001-NJ 曲轴皮带轮螺栓 Crankshaft belt pulley bolt 1
2.  HA05140 4100QB-05-003-ZXB 曲轴皮带轮(三槽) Crankshaft belt pulley 1
3.  HA0584 495QA-05-004 前挡油圈 Front oil retainer 1
4.  HA05277 4102QB-05-006A 曲轴 Crankshaft 1
5.  4102QB-01-009 前后主轴承下瓦(Ⅰ,Ⅴ) 1
6.  4102QB-01-007 中间主轴承下瓦(Ⅱ, Ⅲ, Ⅳ) 1
7.  GB278-82（60203） 轴承60203 Flywheel fixing bolt 6
8.  GB278-82（60203） 圆柱销B10×25 Anti-loose washer 3
9.  HA05012 4100GB-05-08-WJ 飞轮 Flywheel 1
10.  HA0540 5100QB-01-010-CW 飞轮紧固螺栓 Gear ring of flywheel 1
11.  HA0586 4100QB-05-009 防松垫片 Bearing 6203-RZ 1
12.  495QA-05-011 离合器压盘定位螺栓 Pin 10 h8×25 1
13.  HA05215 4100QB-05-007 飞轮齿圈 Pad bush 1
14.  4102QB-01-010 曲轴止推片 Crankshaft 1
15.  4102QB-01-006 中间主轴承上瓦(Ⅱ, Ⅲ, Ⅳ) Crankshaft belt pulley bolt 1
16.  4102QB-01-008 前后主轴承上瓦(Ⅰ, Ⅴ) Crankshaft belt pulley 1
17.  GB1096-76 平键10×60 Front oil retainer 1
