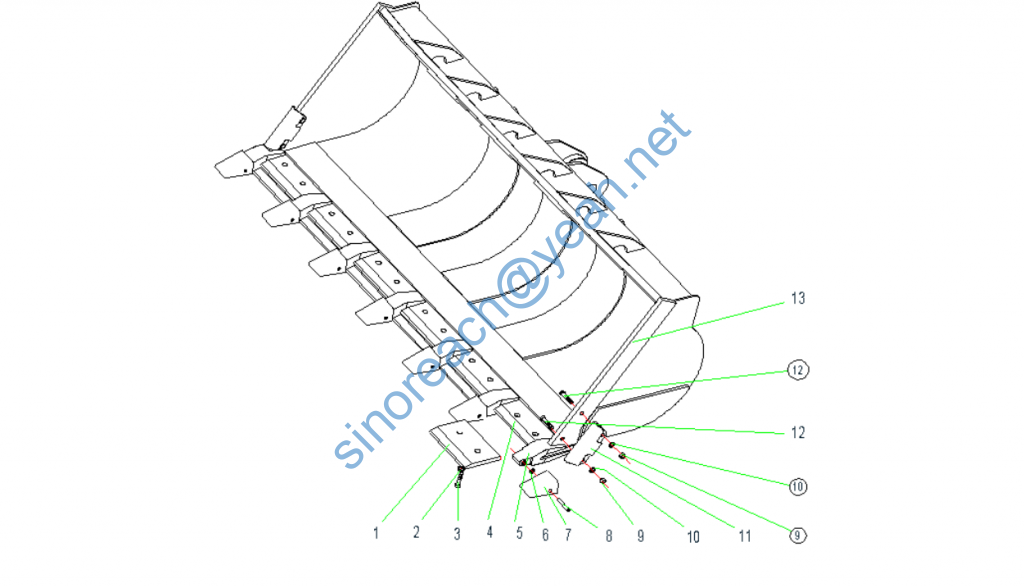

rock bucket work device assembly

1 副刃板 Sub-cutting edge Z5210401501 6
2 垫圈 24 Washer 24 B060112406 GB93-87 12
2 螺母 M24 Nut M24 B050332421 GB/T6170-2000 12
3 螺栓 M24×65-10.9 Bolt M24×65-10.9 B040962465 GB/T5783-2000 12
4 主刃板 Cutting edge Z5B104010 1
5 齿座 Adapter-tip W110008114 7
6 卡簧 Retainer W110008130 7
7 齿套 Tip W110008102 7
8 固定销 Fixed Pin W110008120 7
9 螺母 M20 Nut M20 B050332018 GB/T6170-2000 4
10 垫圈 20 Washer 20 B060112005 GB93-87 4
11 侧刃护套 Boot Z421210150 2
12 螺栓 M20×90 Bolt M20×90 B040812090 GB/T5782-2000 4
13 组件岩石斗 Bucket AS Z5B104012 1
0 卸料限位块 Limited block Z52134002 2
0 收斗限位块 Limited block Z51001127 2
0 限位块 Sub-cutting limited block Z321960200 6
0 岩石斗组件（出口配件） Buck NZ5B1040010000
