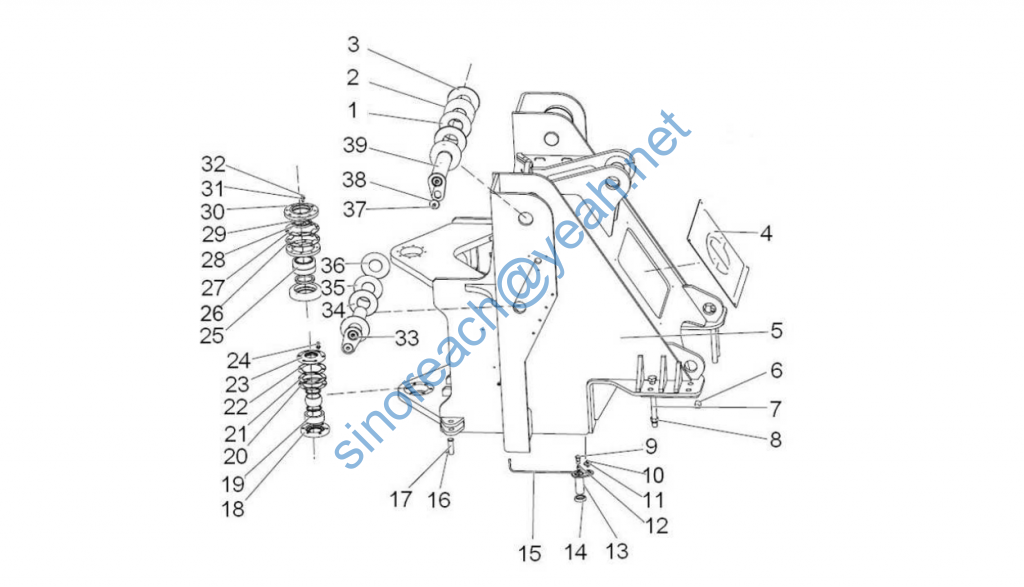

Front frame AS

1 调整垫片 Adjusting shim Z6305500200 4
2 调整垫片 Adjusting shim Z6305500300 4
3 调整垫片 Adjusting shim Z6305500400 2
3 垫圈 8 Washer 8 B060410802 GB/T97.1-2002 4
4 小盖板 The small cover Z310020481 1
5 前车架组件 The front frame assembly Z6B00200100 1
6 限位块 Spacing block Z520020870 4
7 螺栓 M30×320 Bolt M30×320 Z510020990 8
8 尼龙锁紧螺母 M30 Nylon lock nut M30 B050213024 GB/T889.1-2000 8
9 螺栓 M10×1×25 Bolt M10×1×25 B041200002 JB999-77 4
10 螺栓 M12×20 Bolt M12×20 B040911220 GB/T5783-2000 2
11 平垫 Flat pad Z640020100 2
12 组合密封垫圈 A10 The comination of sealing gaskets B060811002 JB982-77 8
13 转向缸前销轴总成 Steering cylinder front pin shaft assembly Z510020861 2
14 支承垫 Bearing pad Z520020070 2
15 前转向润滑油管(左 Front steering (left) Z620020700 2
16 开口销 6.3×50 Cotter pin 6.3×50 B080210018 GB/T91-2000 1
17 锁止销 Locking rod Z6B003040 1
18 下铰接下轴承盖 The lower hinged bearing
cover
Z6B002039 1
19 轴承 GE80ES Bearing GE80ES B120528055 GB304.

20 调整垫片δ0.7 Adjusting shim δ0.7 Z620020110 1
21 调整垫片δ0.5 Adjusting shim δ0.5 Z620020100 1
22 调整垫片δ0.3 Adjusting shim δ0.3 Z620020030 1
23 下铰接上轴承盖 The lower hinged on the bearing cap Z6B002038 1
23 骨架油封 B160420008 GB/T9877.1-1988
24 螺栓 M12×80 Bolt M12×80 B040911280 GB/T5783-2000 6
25 圆锥滚子轴承 33216X2 Tapered roller bearing B120408035 2
26 调整垫 t0.5 Adjusting shim t0.5 Z520021120 6
27 调整垫 t0.1 Adjusting shim t0.1 Z520021110 10
28 密封圈 B95 120 12 Sealing ring B160410003 GB9877.1-88 2
29 油杯 M10×1 Grease cup M10×1 B150101000 JB/T7940.1-1995 3
30 上轴承盖 On the bearing cap Z520021130 1
31 垫圈 12 Washer 12 B060411203 GB/T97.1-2002 14
32 螺栓 M12×45 Bolt M12×45 B040911245 GB/T5783-2000 8
33 举升缸后销轴总成 Lift cylinder pin shaft AS Z620020621 2
34 调整垫片δ2 Adjusting shim δ2 Z520020100 2
35 调整垫片δ1 Adjusting shim δ1 Z520020090 4
36 调整垫片δ0.5 Adjusting shim δ0.5 Z520020080 4
37 螺栓 M16×25 Bolt M16×25 B040911625 GB/T5783-2000 5
38 平垫 Flat pad Z520020890 5
39 动臂后销轴总成 Boom pin shaft assembly Z620020601
