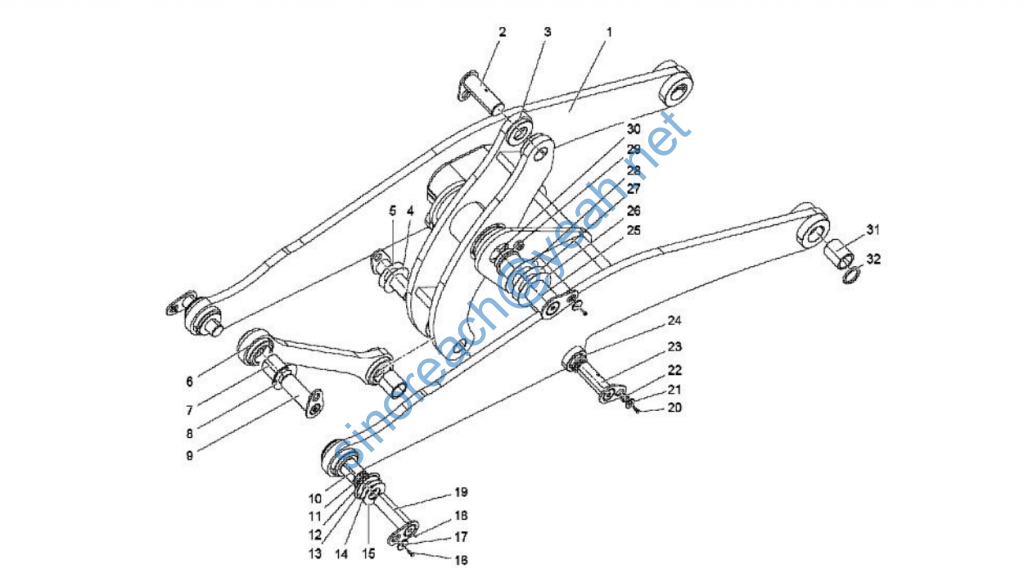

The arm assembly 动臂装置总成

1 动臂
Lift arm Z623130020 1
2 摇臂上销轴总成 Rocker upper pin assembly Z620010381 1
3 摇臂组件 Rocker arm assembly NZ6231300600 1 Include 29,30
4 调整垫片δ1 Trimmed gasket δ1 Z520010080 ZL50F.1-13 4
5 调整垫片δ0.5 Trimmed gasket δ0.5 Z520010030 ZL50F.1-8 4
6 拉杆组件
Linkage rod assembly NZ61001086000 1 7,12,32
7 拉杆两端销衬套 Tension rod ends pin Bushing Z610010021 2
8 调整垫片δ2 Trimmed gasket δ2 Z520010090 ZL50F.1-14 2
9 铲斗拉杆销轴总成 Bucket – lingkage pin assembly Z620010311 1
10 铲斗动臂销衬套 Bucket lift arm pin Bushing Z610010011 2
11 防尘圈 Dust seal Z510010860 ZL50D.1-26 4
12 防尘圈 Dust seal Z510010860 ZL50D.1-26 8
13 调整垫片δ0.5 Trimmed gasket δ0.5 Z520010010 ZL50F.1-5 4
14 调整垫片δ1 Trimmed gasket δ1 Z520010060 ZL50F.1-11 4
15 调整垫片δ2 Trimmed gasket δ2 Z520010070 ZL50F.1-12 4
16 螺栓 M16×25 Bolt M16×25 B040911625 GB/T5783-2000 6
17 平垫
Washer 6
18 油杯 M10×1
Oil cup M10×1 B150101000 JB/T7940.1-1995 8
19 动臂铲斗销轴总成
Lift arm bucket pin assembly Z620010281 2
20 螺栓 M20×40 Bolt M20×40 B040912040 GB/T5783-2000 2
21 平垫
Washer 2
22 隔套 Spacer sleeve Z510011070 2

23 摇臂主销轴总成 Tilt lever main pin assembly Z620010351 1
24 动臂中销衬套
Lift arm middle Pin bushing Z610010031 2
25 动臂中销轴总成 Lift arm middle pin assembly Z620010431 2
26 调整垫片δ2 Trimmed gasket δ2 Z520010090 ZL50F.1-18 2
27 调整垫片δ1 Trimmed gasket δ1 Z620010020 ZL50F.1-17 2
28 调整垫片δ0.5 Trimmed gasket δ0.5 Z520010030 ZL50F.1-10 4
29 防尘圈 Dust seal Z510010860 ZL50D.1-26 2
30 摇臂主销衬套 Bushing Z620010011 1
31 动臂后销衬套
Lift arm rear pin bushing Z610020151 2
32 防尘圈 Dust seal Z510010860 ZL50D.1-26 4
23 摇臂主销轴总成 Tilt lever main pin assembly Z620010351 1
24 动臂中销衬套
Lift arm middle Pin bushing Z610010031 2
25 动臂中销轴总成 Lift arm middle pin assembly Z620010431 2
