Description

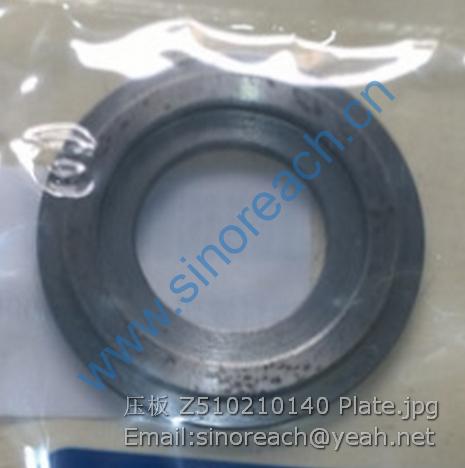

Z510210140 Clamping plate

54 输入联接盘 Input joint plate Z510210040 1
55 输入轴 Input shaft Z510210050 1
56 压板 Clamping plate Z510210060 1
57 O 型圈 38×5.7 O-ring 38×5.7 Z510210070 1
58 输入齿轮 Input Gear Z510210080 1
59 齿轮 Gear Z510210090 1
61 齿轮 Gear Z510210110 1
62 输出轴 Output shaft Z510210130 1
63 压板(输出轴)
Clamping plate (Output
shaft) Z510210140 2
64 O 型圈 41×8.6 O-ring 41×8.6 Z510210150 2
65 挡板 Baffle Z510210160 2
66 接合套 Joint sleeve Z510210170 1
67 弹簧 Spring Z200020860 1
68 轴承座 Bearing carrier Z510210190 1
69 钢球 10 Steel ball 10 B120711000 1
70 套 Sleeve Z510210210 1
71 变速箱盖 Gear box cover Z5102102201 1
72 进油盖 Inlet cover Z510210232 2
73 密封环 Ring seal Z510210240 8
74 垫片 Gasket Z510210250 8
75 封油板 Oil sealing board Z510210260 1
76 套 Sleeve Z510210270 4
77 进油盖(前进档) Inlet cover (front gear) Z510210282 1
78 输入轴盖 Input shaft Cover Z510210290 1
79 进油盖(后退档) Inlet cover (rear gear) Z510210302 1
80 密封环 Ring seal Z510210310 4

82 拉杆 Tension rod Z510210340 1
83 螺钉 Threaded screw Z510210350 1
84 螺塞 Plug Z510210360 1
85 垫片 Gasket Z510210370 1
86 法兰 Flange Z510210380
87 压板 Clamping plate Z510210390 1
88 螺母(M36×1.5) Nut (M36×1.5) Z510210400 3
89 高低速齿轮轴套 High-low speed gear bushing Z510210411 1
90 变速箱标牌 Gearbox name plate Z510210420 1
91 离合器(F、R)组 Clutch (F、R) NZ51021043000 2
92 离合器(Ⅰ、Ⅲ)组 Clutch (Ⅰ、Ⅲ) NZ51021058000 1
93 离合器(Ⅱ、Ⅳ)组 Clutch (Ⅱ、Ⅳ) NZ51021060010 1
94 蓄能器总成 Accumulator assembly Z510210640 1
95 滤油器左法兰盘 Oil filter left flange Z510210870 1
滤油器右法兰盘 Oil filter right flange Z510210880 1
96 变速箱操纵阀 Gear box control valve W031500000 1
97 挡油板总成 Oil Retainer assembly Z510211040 1
98 过渡盘 Transition case Z510211130 1
99 进油盖轴套 Inlet cover shaft sleeve Z510211230 4
100 呼吸器接头 Respirator fitting Z51021167 1
101 过油板 Oil-Through board Z51021168 1
102 后输出连接法兰 Connecting flange Z510210120 1
103 放油螺塞 Purge cock Z640060320 1
104 滤网总成(120 目)50D Screen assembly Z510210890 1
105 O 形圈 71×5.3 O-ring71×5.3 B160140710 2
106 销 Pin B080121040 1

1 挡圈 190 Retainer190 B070150001 GB893.1-86 1
2 挡圈 80 Retainer80 B070158003 GB893.1-86 2
3 挡圈 110 Retainer110 B070250001 GB894.1-86 1
4 挡圈 50 Retainer50 B070255002 GB894.1-86 1
5 开口销 6.3×55 Cotter pin6.3×55 B080210027 GB/T91-2000 1
6 轴承 208 Bearing 208 B120124018 GB/T276-1994 2
7 轴承 2222E Bearing 2222E B120320001 GB/T283-1994 1
8 钢球φ5 Steel ball φ5 B120710500 GB/T308-2002 1
9 齿轮 Gear Z510210090 1
10 离合器轴(Ⅱ、Ⅳ) Clutch shaft (Ⅱ、Ⅳ) Z510210100 1
11 垫片 Gasket Z510210250 1
12 密封环 Ring seal Z510210310 1
13 压板 Clamping plate Z510210390 1
14 螺母(M36×1.5) Nut (M36×1.5) Z510210400 1
15 活塞 Piston Z510210440 1
16 活塞外封环 Piston outer seal ring Z510210450 1
17 压板 Clamping plate Z510210470 1
18 挡环 Snap ring Z510210500 1
19 单向阀座 Check valve seat Z510210520 1
20 离合器主动片 Clutch driving disc Z510210560 6
21 弹簧 Spring Z51021158 1
22 弹簧座 Spring Retainer Z51021159 1
23 齿轮 Gear Z51021162 1
24 齿轮套 Gear sleeve Z51021163 1
25 离合器被动片 Clutch driven disc Z510210460 5
离合器（Ⅱ Ⅳ） Clutch（Ⅱ Ⅳ） NZ51021060010

1 挡圈 190 Retainer 190 B070150001 GB893.1-86 1
2 挡圈 80 Retainer 80 B070158003 GB893.1-86 2
3 挡圈 40 Retainer 40 B070214002 GB894.1-86 1
4 挡圈 50 Retainer 50 B070255002 GB894.1-86 1
5 轴承 208 Bearing 208 B120124018 GB/T276-1994 2
6 轴承 2408 Bearing 2408 B120344027 GB/T283-1994 1
7 钢球φ5 Steel ball φ5 B120710500 GB/T308-2002 1
8 离合器轴 Clutch shaft Z510210020 1
9 垫片 Gasket Z510210250 1
10 密封环 Ring seal Z510210310 1
11 活塞 Piston Z510210440 1
12 活塞外封环 Piston outer seal ring Z510210450 1
13 压板 Clamping plate Z510210470 1
14 挡环 Snap ring Z510210500 1
15 单向阀座 Check valve seat Z510210520 1
16 离合器主动片 Clutch driving disc Z510210560 6
17 齿轮套 Gear sleeve Z51021156 1
18 弹簧 Spring Z51021158 1
19 弹簧座 Spring retainer Z51021159 1
20 齿轮 Gear Z51021160 1
21 离合器被动片 Clutch driven disc Z510210460 5
离合器(F.R)组 Clutch (F.R) assembly NZ51021043000
