Description

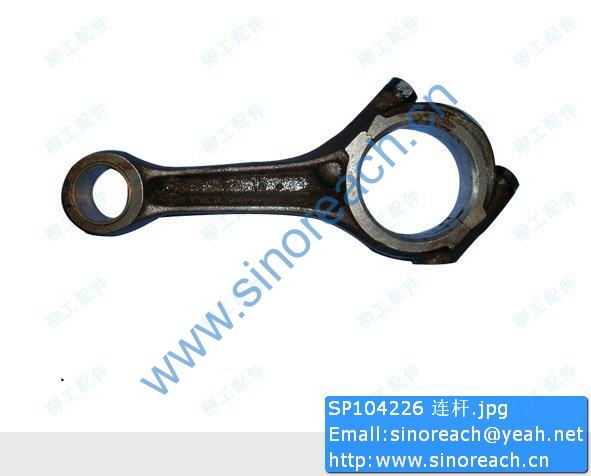

SP104226 connecting rod for LIUGONG spare parts

B00000790 SP121524 I type hexagon nut 1 D19-000-80
B00000913 SP121533 Hexagon socket head screw 2 D19-000-80
B00001252 SP121556 Spring washer 1 D19-000-80
B00002178 SP121676 Hinge bolt 1 D19-000-80
B00002193 SP111426 Washer 2 D19-000-80
D19-105-01+A SP111393 Suction pipe bracket 1 D19-000-80
D19-107-02A+A SP111394 connecting hose 1 D19-000-80
D19-110-01C+B SP101481 turbocharger oil inlet pipe 1 D19-000-80
D19-113-02+A SP101483 Gasket 1 D19-000-80
D19-118-01+B connector 1 D19-000-80
B00000505 SP121505 Hexagon head bolt 2 D19-000-80
B00001567 SP121588 hose clamp 2 D19-000-80
D19-002-46+A SP122007 turbocharger return pipe welding parts 1 D19-000-80
D19-112-02+B Turbocharger return pipe flange 1 D19-002-46
D19-111-46+A Turbocharger oil return pipe 1 D19-002-46
D19-114-01A+A SP111397 Suction pipe flange gasket 1 D19-000-80
B00002118 SP121652 Hexagon flange bolt 1 D19-000-80
B00001297 Flat washer 2 D19-000-80
B00001275 Flat washer 2 D19-000-80
D28-000-32+C Injector assembly 6 D6114ZG9B+DB0790-ZJ
D28-001-32+A SP101540 Injector parts 1 D28-000-32
D28-002-32+A Fuel injector coupler 1 D28-001-32
D28-101-02+A SP122058 oil return pipe joint 1 D28-000-32
D28-104-01+A Anti-fouling ring 1 D28-000-32
D28-102-03+A SP122060 Injector gasket 2 D28-000-32
D638-000-02+A SP101561 Fuel filter assembly 1 D6114ZG9B+DB0790-ZJ
D638-001-02+A SP122083 Filter seat part 1 D638-000-02
D638-101-03+A Fuel filter seat 1 D638-001-02
D638-102-03+A Hollow bolt 1 D638-001-02
D638-002-02+B SP101562 fuel filter 1 D638-000-02
D03-000-40+C Oil pan assembly 1 D6114ZG9B+DB0790-ZJ
D03-110-02+A SP121903 Composite sealing hard washer 1 D03-000-40
D02A-164-01+B Hexagon socket screw plug (Z1/2) 1 D03-000-40
B00001728 SP121603 Hexagon head plug 1 D03-000-40
B00002137 SP121660 Hexagon flange bolt 32 D03-000-40
D03-001-40A+A SP121898 Oil pan welding parts 1 D03-000-40
D03-105-03+A Oil temperature gauge installation joint 1 D03-001-40A
D03-103-01+A Oil drain connector 1 D03-001-40A
D03-300-04+A Return pipe 1 D03-001-40A
D03-308-01+A Ω-shaped bead 1 D03-001-40A
D03-101-34A+B Oil pan 1 D03-001-40A
WG-08-000+A SP122113 exhaust tail pipe assembly 1 D6114ZG9B+DB0790-ZJ
B00000553 Hexagon head bolt 1 WG-08-000
B00000773 SP121523 I type hexagon nut 1 WG-08-000
B00001240 spring washer 1 WG-08-000
B00001279 Flat washer 1 WG-08-000
WG-08-001+A clamp 1 WG-08-000
WG-08-002+A take over 1 WG-08-000
WG-08-003+A long tube 1 WG-08-000
WG-08-004+A Elbow 1 WG-08-000
D00-000-600+A variant matching components 1 D6114ZG9B+DB0790-ZJ
B00001996 SP121623 Hexagon flange bolt 3 D00-000-600
B00002132 SP121656 Hexagon flange bolt 3 D00-000-600
D00-145-01+A SP101263 Air filter indicator connector 1 D00-000-600
D00-172-04A+A SP121780 Rear ring 1 D00-000-600
B00000793 Type I Hexagon Nut 8 D00-000-600
B00001856 SP121619 Copper washer 1 D00-000-600
B00002465 SP121686 rubber water pipe 1 D00-000-600
D00-117-18+A SP121767 intake elbow 1 D00-000-600
D00-135-01+A SP111327 dipstick takeover 1 D00-000-600
B00000768 SP121520 I type hexagon nut 4 D00-000-600
D00-121-01+A SP121770 Seal ring 2 D00-000-600
B00002139 SP121662 Hexagon flange bolt 2 D00-000-600
D00-140-01+A SP111328 Spacer 2 D00-000-600
D00-118-29+B SP121769 Exhaust elbow 1 D00-000-600
D00-154-07+A Heat insulation board 1 D00-000-600
D00-173-01+A SP121781 Exhaust elbow gasket 1 D00-000-600
B00001586 SP121595 hose clamp 2 D00-000-600
D00-014-08+A SP121756 Muffler bracket welding parts 1 D00-000-600
D00-146-01+A SP101264 Air intake elbow gasket 1 D00-000-600
D00-222-01+A SP111336 Press block 2 D00-000-600
D00-006-01+A SP101255 dipstick assembly 1 D00-000-600
D00-007-01+A Dipstick handle part 1 D00-006-01
D00-133-01+A Dipstick cover 1 D00-007-01
D00-132-01+A dipstick handle 1 D00-007-01
D00-134-01A+A SP111326 Oil dipstick seal 1 D00-006-01
D00-131-01+A scale 1 D00-006-01
D00-005-30+C SP121750 Air filter bracket welding parts 1 D00-000-600
D00-129-14+A Support rib 1 D00-005-30
D00-126-17+A Support rib 1 D00-005-30
D00-127-30+A Supporting strength 1 D00-005-30
D00-125-13+B Air filter support plate 1 D00-005-30
D00-034-01+A SP101257 Oil-water separator assembly parts 1 D00-000-600
B00001993 Hexagon flange bolt 8 D00-000-600
B00002004 SP121629 Hexagon flange bolt 4 D00-000-600
D00-163-14+A SP121776 Heating water transition joint 1 D00-000-600
D00-165-16+A Fixed throttle cable bracket 1 D00-000-600
D00-230-05B+B Connecting elbow handle 1 D00-000-600
D00-240-03+A SP121793 oil feed pump oil inlet pipe 1 D00-000-600
D00-241-11+A Fuel return pipe 1 D00-000-600
761G-26-062+A SP106298 Low pressure oil pipe 1 D00-000-600
D00-143-28+A SP111296 bracket 1 D00-000-600
D04-150-01+B clamp band 1 D00-000-600
D26-000-119+D Fuel line assembly 1 D6114ZG9B+DB0790-ZJ
D26-003-30B+A SP111313 high pressure oil pipe parts (third cylinder) 1 D26-000-119
D26-112-01+A union nut 2 D26-003-30B
D26-101-30B+A High pressure oil pipe 1 D26-003-30B
D26-103-01+A Sheath 2 D26-003-30B
D26-125-01+A High pressure oil pipe anti-fouling cap 2 D26-003-30B
D26-105-02+A SP122048 Upper clip 2 D26-000-119
D26-117-01+C SP111413 clamp band 2 D26-000-119
D26-001-30C+A SP111311 High pressure oil pipe components (first cylinder) 1 D26-000-119
D26-103-01+A Sheath 2 D26-001-30C
D26-101-30B+A High pressure oil pipe 1 D26-001-30C
D26-112-01+A union nut 2 D26-001-30C
D26-125-01+A High pressure oil pipe antifouling cap 2 D26-001-30C
B00002108 SP121648 Hexagon flange bolt 9 D26-000-119
D26-114-30A+C Fuel injection pump inlet pipe parts 1 D26-000-119
D26-117-32+C clamp band 1 D26-000-119
B00000582 SP121510 Hexagon head bolt 2 D26-000-119
D26-034-01+A SP111458 Upper clip welding part 2 D26-000-119
B00000840 Hexagon flange nut 2 D26-034-01
D26-105-30+A Upper clip 1 D26-034-01
B00001545 SP111422 Composite sealing hard washer 1 D26-000-119
D26-117-30+D Clamp band 2 D26-000-119
