Description

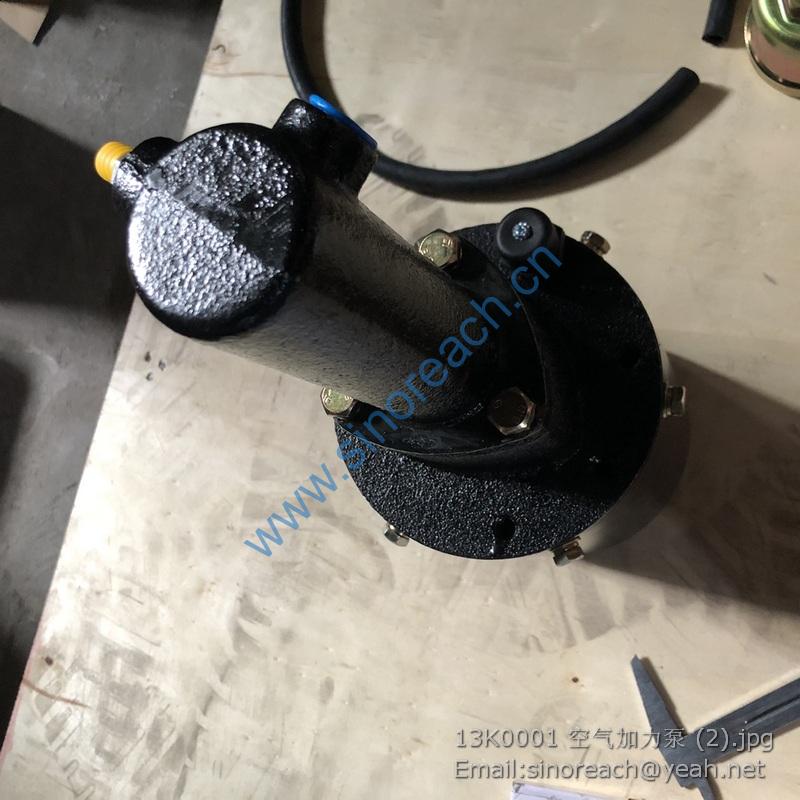

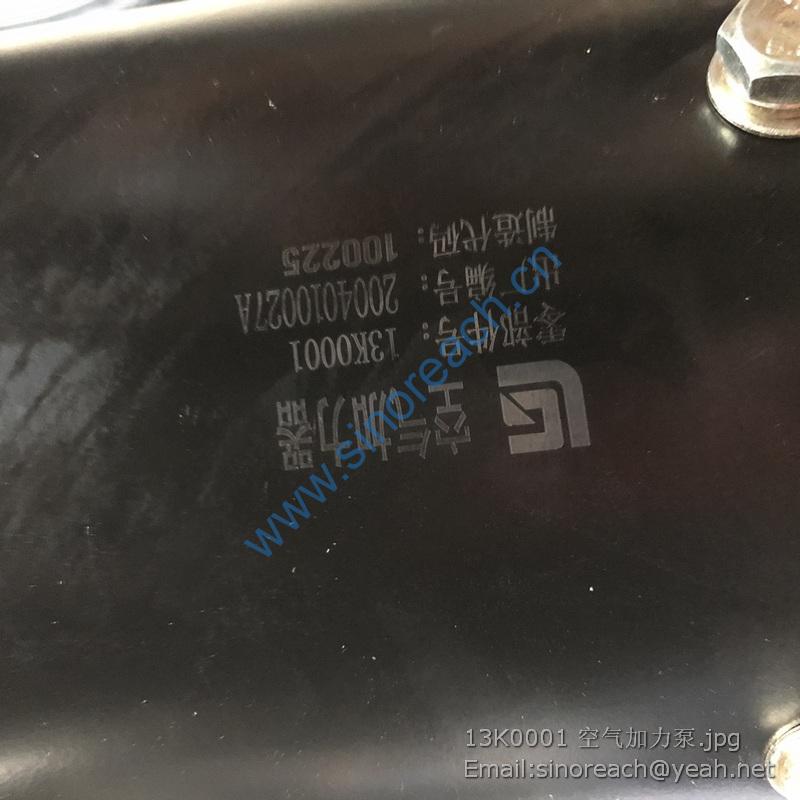

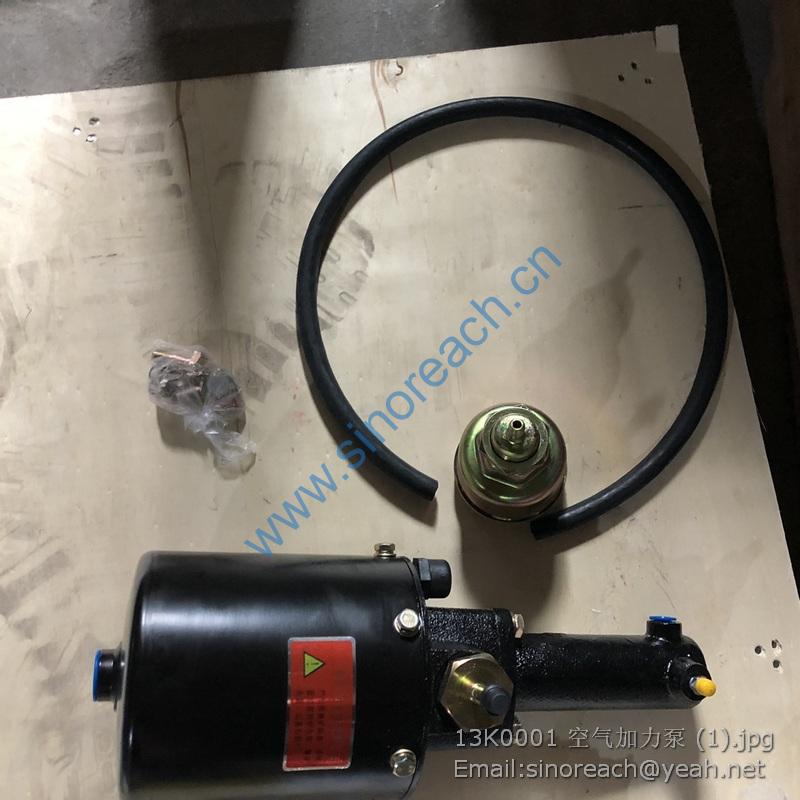

13K0001 Air booster pump
05C1723 000 软管总成 HOSE AS 1
2 03C0101 000 尼龙管 NYLON HOSE 2
3 00B0085 000 螺栓 BOLT 4 GB5783-86
4 06B0348 000 垫圈 WASHER 6
5 01C0218 000 钢管总成 TUBE AS 1
6 82A0028 000 垫 SHIM 6
7 13C0004 000 气制动阀总成 BRAKE VALVE AS 1
8 81A0009 000 垫 SHIM 6
9 04C0183 000 软管总成 HOSE AS 1
10 04C0184 000 软管总成 HOSE AS 1
11 13K0002 000 调压阀
PRESSURE
REGULATOR
1
12 00A0034 000 接头 CONNECTOR 3
13 00B0054 000 螺栓 BOLT 2
14 06B0003 000 垫圈 WASHER 2 GB93-87
15 13K0004 000 单向阀 CHECK VALVE 1
16 00B0026 000 螺栓 BOLT 2
17 27H0009 000 支架 BRACKET 1
18 03C0102 000 尼龙管 NYLON HOSE 1
19 04C0185 000 波纹管 CORRUGATED PIPE 1
20 00H0007 000 接头 CONNECTOR 1
21 05K0004 000 制动软管 HOSE 1
22 00B0011 000 螺栓 BOLT 2 GB5783-86
23 06B0349 000 垫圈 WASHER 2
24 23A5857 000 支座 BRACKET 1
25 00B0012 000 螺栓 BOLT 3 GB5783-86
26 06B0347 000 垫圈 WASHER 3
27 10D3017 000 钢管总成 TUBE AS 1
28 13K0012 000 储气罐总成 AIR RESERVOIR AS 1
29 12B0242 000 O 形密封圈 O-RING 4
30 15L0007 000 接头 CONNECTOR 1
31 13K0003 000 安全阀 SAFETY VALVE 1
32 03B0215 000 锁紧螺母 LOCKNUT 4
33 00H0044 000 接头 CONNECTOR 1
34 02A0257 000 三通接头 TEE 1
35 34B0010 000 气制动灯开关 BRAKE LIGHT SWITCH 1
36 02H0015 001 四通接头 CONNECTOR 1
37 05H0003 000 堵头 PLUG 1
38 13K0006 000 轮胎充气阀 CHARGE VALVE 1
39 13K0001 000 空气加力泵 BOOSTER PUMP 1
1 13C0109 000 手动放水阀 WATER DRAIN VALVE 1
2 00B0019 000 螺栓 BOLT 4
3 06B0002 000 垫圈 WASHER 4 GB93-87
4 06B0001 000 垫圈 WASHER 4 GB97.1-85
5 05L0005 002 储气罐 AIR RESERVOIR 1
1 11L0015 003 销 PIN 3
2 56H0005 001 垫片 SHIM 4
3 10B0014 000 油杯 GREASE FITTING 3
4 06B0351 000 垫圈 WASHER 3
5 06B0012 000 垫圈 WASHER 3 GB97.1-85
6 00B0093 000 螺栓 BOLT 3
7 22D0549 000 铲斗 BUCKET 1
8 86A0258 001 油杯护套 BOOT 3
1 21L0010 001 摇臂 LEVER 1
2 21D0371 000 动臂 BOOM 1
2 21L0009 001 动臂 BOOM 1
3 16L0007 001 拉杆 LINKAGE 1
4 00B0017 000 螺栓 BOLT 2
5 06B0007 000 垫圈 WASHER 2 GB97.1-85
6 55H0014 000 垫套 BUSHING 2
7 11L0016 003 动臂缸销 PIN 2
8 55A0288 000 衬套 BUSHING 2
9 34C0052 001 防尘圈 DUST RING 4
10 55A0286 000 斗杆钢套 BUSHING 2
11 11L0014 002 摇臂销 PIN 2
12 55A0287 000 动臂下钢套 SLEEVE 4
13 34C0034 001 密封圈 SEAL RING 12
14 11L0009 002 摇臂中销 PIN 1
15 06B0015 000 垫圈 WASHER 3 GB93-87
16 06B0012 000 垫圈 WASHER 3 GB97.1-85
17 00B0093 000 螺栓 BOLT 3
18 10B0014 000 油杯 GREASE FITTING 5
19 80A0092 001 密封圈 SEAL RING 2
20 55A0285 000 摇臂钢套 BUSHING 1
21 28C0115 000 调整垫片 ADJUSTING GASKET 2
22 28C0116 000 调整垫片 SHIM 2
23 86A0258 001 油杯护套 BOOT 5
24 03B0592 000 碟形螺母 NUT 2
25 02B0097 000 双头螺柱 STUD BOLT 2
26 83A0304 000 胶套 BOOT 2
27 24C0446 000 举升动臂支撑 SUPPORT 1
