Description

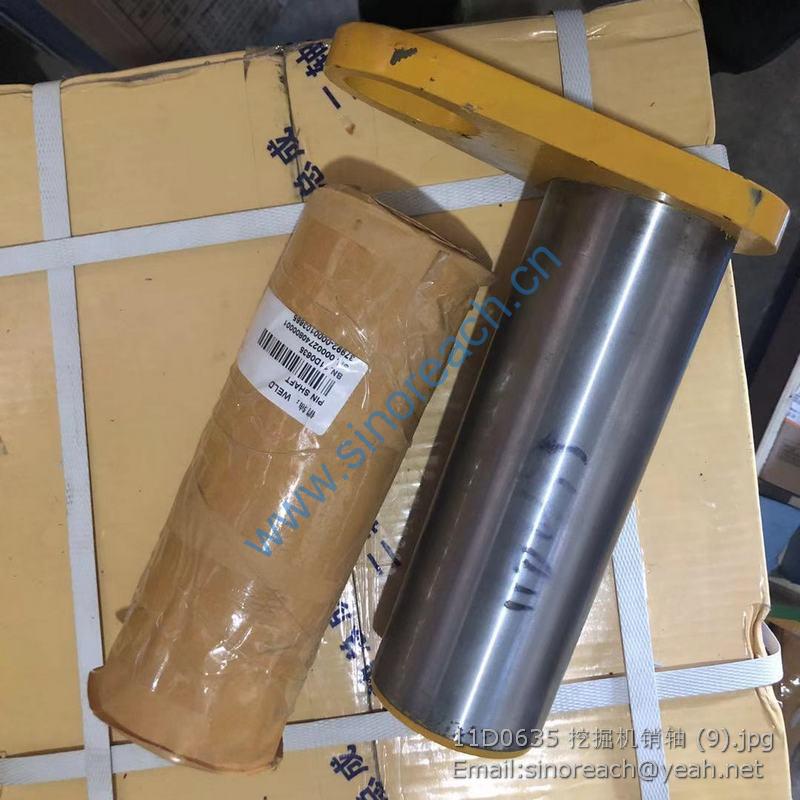

11D0635 PIN CLG922D

LIUGONG EXCAVATOR

00 43C0754 000 斗杆 ARM 1
01 03B0656 000 螺母 NUT 12
03 86A0258 001 油杯护套 BOOT 8
04 10B0014 000 油杯 GREASE FITTING 8
05 28C0057 001 调整垫 SHIM 2
06 12B0513 000 O 形圈 O-RING 4
07 60A0384 000 销轴 PIN 1
08 01B0496 000 螺栓 BOLT 4
08 01B0497 000 螺栓 BOLT 2
09 60A0510 000 销轴 PIN 1
10 60A0796 000 销轴 PIN 1
11 60A0398 000 销轴 PIN 1
12 28C0042 001 调整垫 SHIM 3
13 28C0024 002 调整垫 SHIM 3
14 15A0697 002 垫板 PLATE 1
15 11D0637 000 销轴 PIN 1
16 12A0487 000 垫板 PLATE 7
17 06B0016 000 垫圈 WASHER 7
18 00B0231 000 螺栓 BOLT 7
19 15A0695 001 垫板 PLATE 4
20 11D0635 000 销轴 PIN 2
21 43C0270 002 连杆 LINK 1 Z
00A 55A0642 000 衬套 BUSHING 2
00B 13B0260 000 防尘圈 DUST RING 2
00C 13B0258 000 防尘圈 DUST RING 2
00D 55A1445 001 衬套 BUSHING 2
00E 13B0259 001 防尘圈 DUST RING 4
00F 55A0646 002 T 形套 T-SLEEVE 2

00 43C1491 000 动臂 BOOM AS 1
01 10B0014 000 油杯 GREASE FITTING 8
02 86A0258 001 油杯护套 BOOT 8
03 28C0023 002 调整垫 SHIM 2
04 11D0633 000 销轴 PIN 1
05 12A0487 000 垫板 PLATE 7
06 06B0016 000 垫圈 WASHER 7
07 00B0231 000 螺栓 BOLT 7
08 28C0024 002 调整垫 SHIM 3
09 15A0695 001 垫板 PLATE 4
10 11D0634 000 销轴 PIN 2
11 03B0656 000 螺母 NUT 12
12 55A0268 001 定位套 SLEEVE 2
13 01B0496 000 螺栓 BOLT 4
14 60A0025 000 销轴 PIN 1
15 28C0042 001 调整垫 SHIM 3
16 15A0698 001 垫板 PLATE 1
17 11D0636 000 销轴 PIN 1
18 11D0635 000 销轴 PIN 2
19 00C0392 000 黄油管路 GREASE LINES 1 Z
00A 13B0260 000 防尘圈 DUST RING 2
00B 55A0641 000 衬套 BUSHING 2
00C 21D0567 000 动臂 BOOM 1

00 43C1492 000 斗杆 ARM AS 1
01 03B0656 000 螺母 NUT 12
02 01B0497 000 螺栓 BOLT 2
03 86A0258 001 油杯护套 BOOT 8
04 10B0014 000 油杯 GREASE FITTING 8
05 28C0057 001 调整垫 SHIM 2
06 12B0513 000 O 形圈 O-RING 4
07 60A0384 000 销轴 PIN 1
08 01B0496 000 螺栓 BOLT 4
09 60A0510 000 销轴 PIN 1
10 60A0796 000 销轴 PIN 1
11 60A0398 000 销轴 PIN 1
12 28C0042 001 调整垫 SHIM 3
13 28C0024 002 调整垫 SHIM 3
14 15A0697 002 垫板 PLATE 1
15 11D0637 000 销轴 PIN 1
16 12A0487 000 垫板 PLATE 7
17 06B0016 000 垫圈 WASHER 7
18 00B0231 000 螺栓 BOLT 7
19 15A0695 001 垫板 PLATE 4
20 11D0635 000 销轴 PIN 2
21 43C0270 002 连杆 LINK 1 Z
00A 55A0642 000 衬套 BUSHING 2
00B 13B0260 000 防尘圈 DUST RING 2
00C 13B0258 000 防尘圈 DUST RING 2
00D 55A1445 001 衬套 BUSHING 2
00E 13B0259 001 防尘圈 DUST RING 2
00F 55A0646 002 T 形套 T-SLEEVE 2
