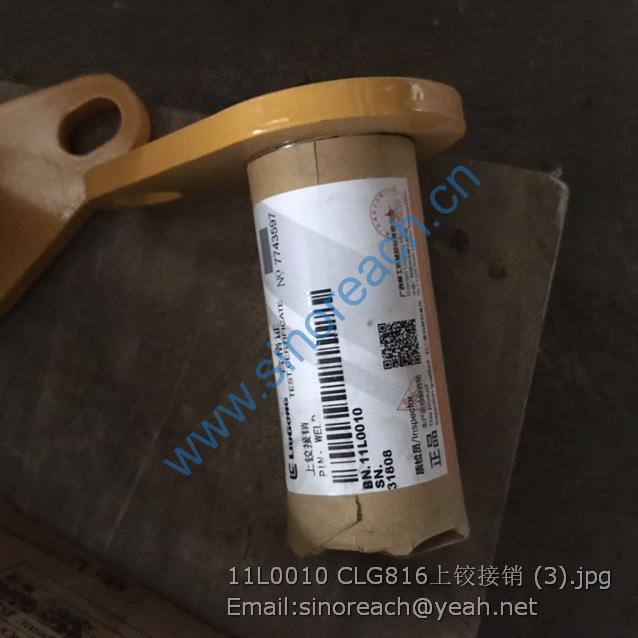

LIUGONG PARTS UPPER PIVOT PIN 11L0010 FOR LIUGONG WHEEL LOADER

1 00B0038 GB5783-86 螺栓 Bolt M14×30-8.8-Zn.D 5
2 06B0013 GB93-87 垫圈 Washer 14 5
3 06B0009 GB97.1-85 垫圈 Washer 14-140HV-Zn.D 1
4 10B0014 GB1152-89 油杯 Fitting M10×1 2
5 55H0015 轴套 Sleeve 1
6 11L0010 上铰接销 Pin 1
7 13H0033 压板 Plate 1
8 60H0015 下铰接销 Pin 1
9 00B0012 GB5783-86 螺栓 Bolt M10×25-8.8-Zn.D 4
10 06B0002 GB93-87 垫圈 Washer 10 6
11 53H0010 轴承盖 Cover 1
12 25B0011 GB/T9163-2001 关节轴承 Plain Bearing GE50ES50×75×35 1
13 56H0003 垫套 Sleeve 1
14 53H0009 盖板 Plate 1
15 00B0002 GB5783-86 螺栓 Bolt M10×35-8.8-Zn.D 2
16 28K0006 调整垫片 Washer 1

1 21L0010 摇臂 lever 1
2 21L0009 动臂 Arm 1
3 16L0007 拉杆 Rod 1
4 00B0017 GB5783-86 螺栓 Bolt M12×30-8.8-Zn.D 2
5 06B0007 GB97.1-85 垫圈 Washer 12-140HV-Zn.D 2
6 55H0014 垫套 Sleeve 2
7 11L0016 动臂缸销 Pin 2
8 55A0288 ZL15.10.1-1 衬套 Sleeve 2
9 34C0052 ZL15.11.5 防尘圈 Seal 40×50×7 4
10 55A0286 ZL20.11-3 斗杆钢套 Sleeve 2
11 11L0014 摇臂销 Pin 2
12 55A0287 ZL20.11-2 动臂下钢套 Sleeve 4
13 34C0034 ZL20.11.3 密封圈 Seal 50×64×8 12
14 11L0009 摇臂中销 Pin 1
15 06B0015 GB93-87 垫圈 Washer 16 3
16 06B0012 GB97.1-85 垫圈 Washer 16-140HV-Zn.D 3
17 00B0093 GB5783-86 螺栓 Bolt M16×30-8.8-Zn.D 3
18 10B0014 GB1152-89 油杯 Fitting M10×1 5
19 80A0092 ZL20.11.7 密封圈 Seal 60×76×8 2
20 55A0285 ZL20.11-8 摇臂钢套 Sleeve 1

1 11L0015 销 Pin 3
2 56H0005 垫片 Gasket 4
3 10B0014 GB1152-89 油杯 Fitting M10×1 3
4 06B0015 GB93-87 垫圈 Washer 16 3
5 06B0012 GB97.1-85 垫圈 Washer 16-140HV-Zn.D 3
6 00B0093 GB5783-86 螺栓 Bolt M16×30-8.8-Zn.D 3
7 22L0014 铲斗 Bucket 1

1 11L0015 销 PIN 3
2 28C0115 调整垫片 GASKET 4
3 10B0014 GB1152-89 油杯 GREASE FITTING M10×1 3
4 06B0315 GB93-87 垫圈 Washer 16-Zn.D 3
5 06B0012 GB97.1-85 垫圈 Washer 16-140HV-Zn.D 3
6 00B0093 GB5783-86 螺栓 bolt M16×30-8.8-Zn.D 3
7 22L0027 铲斗 BUCKET 1
8 43C0054 斗齿 TOOTH 7
