Description

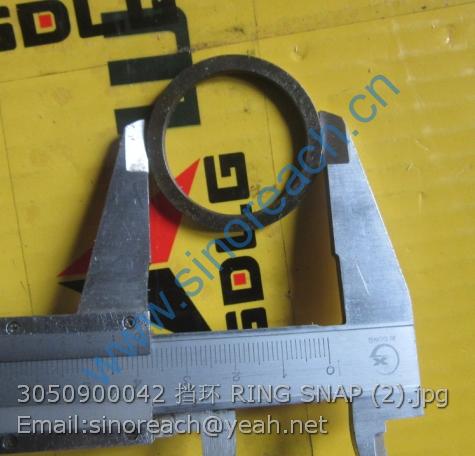

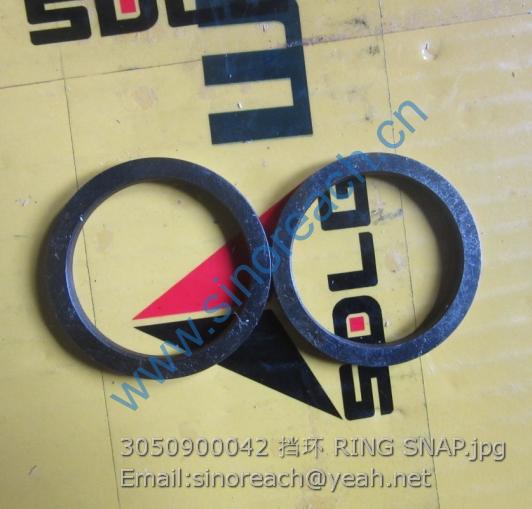

Snap ring 3050900042 for LG936 LG936L loader

31 4110000011103 阀杆YB315Z5-26A Valve rod Y 2
32 4110000011104 螺塞YB315Z5-15L① Plug Y 1
33 4110000011105 压板YB315Z5-19A Anchor plate Y 1
34 4110000011106 弹簧YB315Z5-20 Spring Y 1
35 4110000011108 垫圈12 01602-11236 Washer Y 1
36 4110000011109 螺栓M12*45 01010-51245 Screw Y 1
37 4110000011129 管接头YB315Z5-24K Nipple Y 1
38 4110000011116 圆垫板YB315Z5-04 Shim Y 1
39 4110000518015 涡轮组件YJSW315-8A-10000 Turbine Y 1
40 4110000011117 螺栓M12*30 01010-51230 Screw Y 6
41 4021000018 滚动轴承GB276-6210 Ball bearing Y 1
42 4110000011118 衬垫YB315Z5-05 Gasket Y 1
43 4030000712 O形圈GB3452.1-365*3.55G O-ring Y 1

1 4011000448 螺钉GB70.1-M8*30EpZn-8.8 Screw Y 6
2 4015000036 垫圈GB93-8-65Mn Spring washer Y 6
3 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 6
4 4110000507057 上壳体QF60M33G-1-001 Cover N 1
5 4110000507058 旁通阀QF60M33G-1-100 By-pass valve N 1
6 4030000305 O形圈GB3452.1-106*3.55G O-ring Y 1
7 4110000507007 滤清器滤芯（传动油滤清器滤芯） Filter insert Y 1
8 4110000507060 滤筒焊合件QF60M33G-1-200 Filter cartridge N 1
9 4014000119 螺钉GB70.1-M8*55EpZn-8.8 Screw Y 1
10 4110000507061 旁通阀壳体QF60M33G-1-101 Valve shelf N 1
11 4110000507062 密封垫DFM50S2T-10BG-204 Sealing washer N 1
12 4110000507063 弹簧座QF60M33G-1-102 Spring seat N 1
13 4110000507064 旁通阀弹簧QF60M33G-1-104 Spring N 1
14 4110000507065 弹簧盖QF60M33G-1-103 Spring plate N 1
15 4013000360 螺母GB6182-M8EpZn-9 Nut Y 1

1 4030000013 O形圈GB1235-32*3.1 O-ring Y 2
2 29040000041 密封垫 Gasket Y 1
3 4110000011083 密封环YB315Z5-12A Sealing ring Y 1
4 4110000011082 密封环YB315Z5-33 Sealing ring Y 1
5 4110000011113 调整垫YB315Z5-34 Washer N 1
6 4110000011096 调整垫YB315Z5-30/31/32 Washer Y 1
7 4030000712 O形圈GB3452.1-365*3.55G O-ring Y 1
8 4110002523001 变矩器（4110002523）维修包 Repair kit Y 1

1 4110000507002 上壳体PYQ120A-001 Housing Y 1
2 4110000507003 旁通阀SFM360-300 Valve Y 1
3 4110000507004 胶圈PYQ120A-002W Sealing ring Y 1
4 4110000507007 滤清器滤芯（传动油滤清器滤芯） Filter insert Y 1
5 4110000507005 下壳体PYQ120A-200 Housing Y 1
6 4014000128 螺钉GB70-M8*25EpZn-8.8 Screw Y 6
7 4015000036 垫圈GB93-8-65Mn Spring washer Y 6
