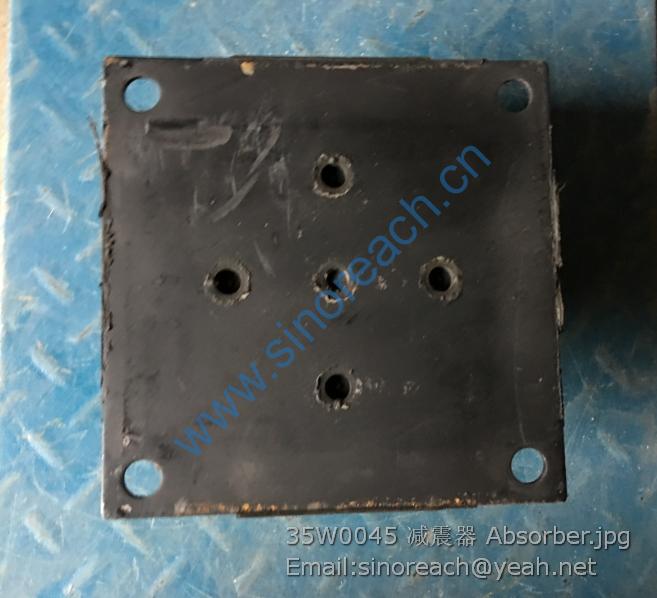

35W0045 Rubber Pad

1 01V0085 螺栓M24×110-8.8-Zn.D Bolt 16 GB5782-86
2 03V0535 锁紧螺母M24-8-Zn.D Lock Nut 16
GB/T889.1-
2000
3 06V0068 垫圈24-140HV-Zn.D Washer 16 GB97.1-85
4 11U0028 调整垫片Ⅰ Adjusting Shim 4
5 10U0024 调整垫Ⅱ Shim 4
6 06V0008 垫圈12 Spring Washer 108 GB93-87
7 00V0058 螺栓M12×45-8.8-Zn.D Bolt 96 GB5783-86
8 03V0003 螺母M12-8-Zn.D Nut 96 GB6170-86
9 01V0010 螺栓M12×60-8.8-Zn.D Bolt 6 GB5782-86
10 12V0447 O形圈180×2.65 “O” ring 2
GB3452.1-7
6
11 53U0027 端盖 Cover 1
12 35W0045 减振器 Rubber Pad 12
13 04V0185 螺钉M10×45-8.8-Zn.D Bolt 16 GB70-85
14 06V0002 垫圈10 Spring Washer 16 GB93-87
15 53U0029 压盖 Cover 1
16 22W0009 左振动室
Left Vibratory
housing
1
17 01V0027 螺栓M16×60-8.8-Zn.D Bolt 40 GB5782-86
18 06V0015 垫圈16 Spring Washer 40 GB93-87
19 22X0005 滚轮 Wheel 1
20 41W0013 中间轴 Midddle Axes 1
21 22W0010 右振动室
Right Vibratory
Housing
1
22 13V0208 密封圈B170×200×15 Dust Wiper Seal 2
GB9877.1-8
8
23 83U0010 密封圈 Dust Wiper Seal 2
24 75U0001 弹簧 Spring 1 18P0702
25 23V0064
双 列 圆 锥 滚 子 轴 承
2097722
bearing 2 GB299-85

26 71U0007 轴承支座 Bearing Seat 2
27 14U0044 支撑板 Support Plate 2
28 76U0001 密封挡圈 Spacer 1 18P3501
29 12V0429 O型密封圈36×3.5 “O” ring 1 GB1235-76
30 53U0030 端盖 Cover 1
31 07V0003 挡圈75 Spacer 2 GB893.1-86
32 13V0209 密封圈B60×75×8 Dust Wiper Seal 2
33 12V0117 O形圈67×3.55 “O” ring 2
GB3452.1-9
2
34 01V0160 螺栓M12×100-8.8-Zn.D Bolt 6 GB5782-86
35 71U0008 振动马达支座 Motor Bracket 1
36 55U0010 联轴套 Sleeve Joint 1 36P0901
37 22U0001 连接板 Plate 2
38 11U0002 盖板 Plate 2
39 00V0007 螺栓M8×16-8.8-Zn.D Bolt 8 GB5783-86
40 06V0006 垫圈8 Spring Washer 8 GB93-87
41 10V0014 油杯M10×1 Grease Nipple 1 GB1152-89

1 04U0021 振动室盖 Cover 1
2 04V0283 螺钉M12×25-8.8-Zn.D Screw 3 GB77-85
3 01V0027 螺栓M16×60-8.8-Zn.D Bolt 12 GB5782-86
4 06V0015 垫圈16 Spring Washer 12 GB93-87
5 12V0139 O形圈530×7 “O” Ring 1
GB3452.1-9
2
6 31W0001 油塞 Bolt 2 18P0010
7 12V0379 O形密封圈30×3.1 “O” Ring 2 GB1235-76
8 70U0005 振动室壳体 Shell 1
9 14W0009 左偏心轴总成 eccentric shaft 1
10 22V0012
圆 柱 滚 子 轴 承
110×240×50
Bearing 2 NJ322
