Description

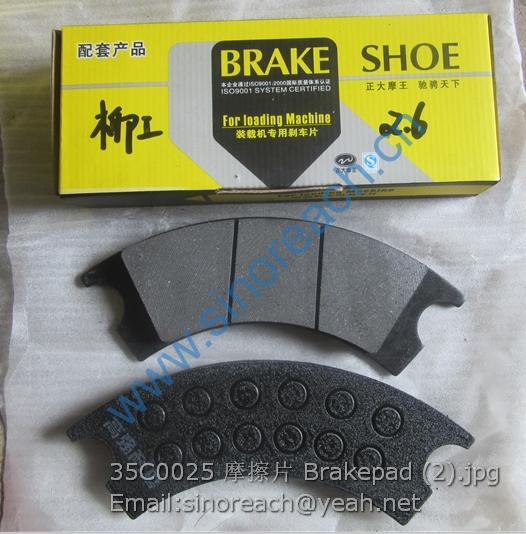

35C0025 BRAKE, Liu Gong Wheel Loader spare parts 2907002025143 SDLG

1 05C0007 002 油管总成 OIL PIPE AS 1
2 00A0040 000 接头 CONNECTOR 2
3 56A0045 000 垫圈 WASHER 4
4 00A0041 000 放气嘴座
DEFLATING
VALVE SEAT
2
5 00A0044 000 放气嘴
DEFLATING
VALVE
2
6 71A0018 000 夹钳 CLAMP 1
7 12B0481 000 O 形圈 O-RING 4
8 35C0025 000 摩擦衬块总成
FRICTION LINING
AS
2
9 50A0009 000 活塞 PISTON 4
10 13B0108 000 矩形密封圈 SEAL 4
11 13B0008 000 防尘圈 DUST RING 4
12 00B0019 000 螺栓 BOLT 16
13 06B0002 000 垫圈 WASHER 16
14 00A1965 001 管接头 CONNECTOR 1
15 12B0245 000 O 形圈 O-RING 2
16 00A0356 000 管接头螺栓 BOLT 1
17 53A0042 000 下油缸盖 CYLINDER HEAD 1
18 01B0043 000 螺栓 BOLT 7
19 06B0014 000 垫圈 WASHER 7
20 04B0027 002 止动螺钉 LOCK SCREW 4
21 03B0053 000 螺母 NUT 4
22 61A0045 001 销轴 PIN 4
23 53A0043 000 上油缸盖 CYLINDER HEAD 3

1 04A0212 000 法兰 FLANGE 1
2 00B0075 000 螺栓 BOLT 4
3 06B0006 000 垫圈 WASHER 4
4 53A0243 000 油封座 OIL SEAL SEAT 1
5 12B0288 000 O 形圈 O-RING 1
6 43A0043 004
主传动螺旋锥齿轮
(左旋)
BEVEL GEAR 1
7 71A0094 000 轴承座
BEARING
SUPPORT
1
8 23B0044 000
圆锥滚子轴承
31310
TAP.ROLLER BRG 1
9 57A0171 000 调整垫 SHIM 2
10 57A0172 000 调整垫 SHIM 1
11 55A0491 002 轴套 BUSHING 1
12 57A0173 000 调整垫 SHIM 2
13 81A0074 000 垫片 SHIM 1
14 12B0375 000 O 形圈 O-RING 1
15 43A0044 004
大螺旋锥齿轮(右
旋）
BEVEL GEAR 1
16 01B0617 001 螺栓 BOLT 16
17 03B0717 螺母 NUT 16
18 06B0176 001 垫圈 WASHER 16
19 21A0040 000 锁紧片 FASTENER 2
20 02B0012 000 螺栓 BOLT 2
21 06B0002 000 垫圈 WASHER 2
22 02B0141 000 螺栓 BOLT 4
23 06B0271 002 淬硬垫圈 HARD WASHER 4
24 40B0006 000 铁丝 STEEL WIRE 2
25 41C0087 000 差速器 DIFFERENTIAL 1
26 03B0429 000 调整螺母 ADJUSTING NUT 2
27 23B0043 000
圆锥滚子轴承
33113
TAP.ROLLER BRG 2
28 51C0090 000 托架总成 CARRIER AS 1

1 2907002025014 垫圈 06B0002 Washer Y 16
2 2907002025142 螺栓 00B0019 Bolt Y 16
3 2907002025143 摩擦衬块总成 35C0025 Slide block Y 2
4 2907002025144 上油缸盖 53A0043 Cover Y 3
5 2907002025145 O形密封圈 12B0481 O-ring Y 4
6 2907002025146 防尘圈 13B1147 Sealing ring Y 4
7 2907002025147 夹钳 71A1094 Clamp Y 1
8 2907002025148 矩形密封圈 13B0108 Sealing ring Y 4
9 2907002025149 缸盖 53A1577 Cylinder head Y 1
10 2907002025150 活塞 50A0735 Piston Y 4
11 2907002025151 垫圈 06B0014 Washer Y 7
12 2907002025152 螺栓 01B0043 Bolt Y 7
13 2907002025153 放气嘴 00A6103 Nozzle Y 2
14 2907002025154 O形圈 12B1875 O-ring Y 4
15 2907002025155 螺塞 03B0066 Plug Y 4
16 2907002025156 止动螺钉 04B0027 Rubber stop Y 4
17 2907002025157 螺母 03B0053 Nut Y 4
18 2907002025158 销轴 61A0045 Pin Y 4
