Description

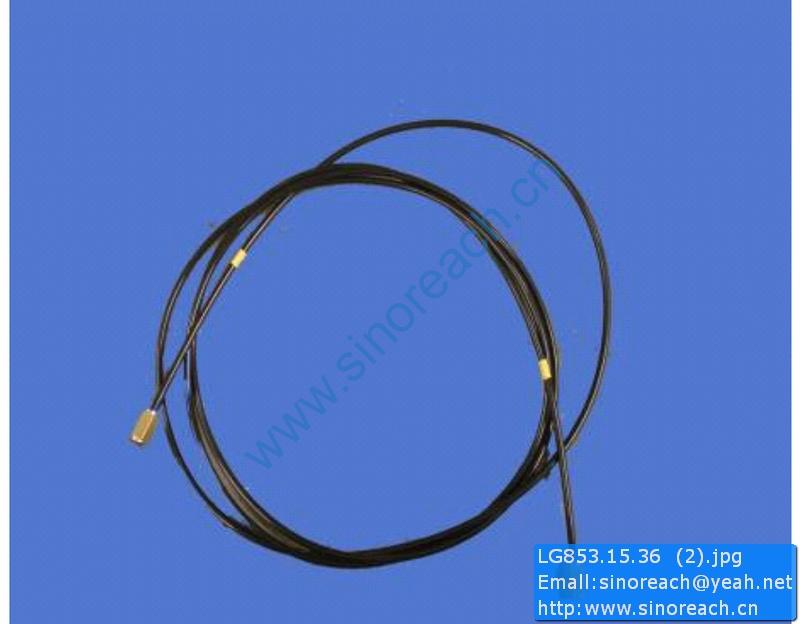

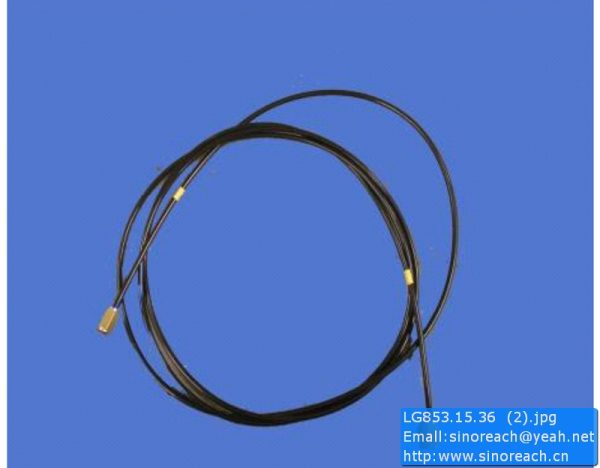

LG853.15.36 Diesel engine pressure gauge hose CDM843 CDM853 CDM855 CDM855E CDM856 CDM858 parts

1 Z60H.4.2.1 接管 Tube
2 B-G03452A-00012 O形图30×3.55 O-ring
3 Z60H.4.1.2 接管 Tube
4 B-Q020750-00171 胶管接头25I-3310 Hose
5 B-Q020710-00050 O形图32×3.1 O-ring
6 B-Q020750-00170 胶管接头25I-3200 Hose
7 Z60H.4.1.1 接管 Tube
8 B-J010000-00001 螺塞M10×1 Plug
9 B-J010020-00001 垫圈10 Washer
10 Z60H.4.1-1 接头 Joint
11 B-J010020-00010 垫圈30 Washer
12 W-03-00002 变速器4WG200 T/C&T/M a’ssy
13 B-G057830-00011 螺栓M10×35-10.9 ZnD Bolt
14 B-G000930-00001 垫圈10 Washer
15 B-G057820-00124 螺栓M22×140 ZnD Bolt
16 Z60F.4-1 垫圈 Washer
17 Z60F.4.4.1 缓冲座 Support
18 Z60F.4.4-1 缓冲橡胶 Cushion
19 B-Q020490-00013 垫圈22 Washer
20 B-G061720-00009 螺母M22 ZnD Nut
21 B-G061700-00020 螺母M22 ZnD Nut
22 B-G057830-00104 螺栓M20×80 ZnD Bolt
23 B-G061720-00008 螺母M20 ZnD Nut
24 Z60F.4.3 变速器支承座 Support
25 B-G057830-00100 螺栓M20×55 ZnD Bolt
26 B-G000930-00008 垫圈20 Washer

1 Z60F.5-5 垫圈 Washer
2 Z60F.5-1 螺栓 Bolt
3 B-G057850-00001 螺栓M12×1.25×110 Bolt
4 B-G000930-00003 垫圈12 Washer
5 B-G061710-00003 螺母M12×1.25 Nut
6 85Z.01.3-6 垫板 Plate
7 85Z.01.3-5 锁板 Lock spacer
8 B-G057830-00012 螺栓M10×35 Bolt
9 花键套叉 Spline spacer
10 Z60F.5-4 后盖 Rear cover
11 Z60F.5-3 垫环 Ring
12 B-G09877A-00010 密封圈B85×110×12B Seal ring
13 B-G002760-00033 轴承6312 Bearing
14 Z60F.5-2 前盖 Front cover
15 B-J07940A-00001 油杯M10×1 Crease fitting
16 花键轴叉 Spline shaft
17 2V7153 万向节总成 Cross shaft ass’y
18 Y2-20VNF-2A 螺栓 Bolt
