Description

4041000725 SOFT HOSE LGB164-012160

1 4011000320 螺栓GB16674-M12*40EpZn-8.8 BOLT GB16674-M12*40EpZn-8.8 N 4
2 4190000459 散热器 RADIATOR Y 1
3 4120001061 液压油散热器B1342 OIL COOLER B1342 Y 1
4 4030000279 O形圈GB3452.1-25.0*3.55G O-RING GB3452.1-25*3.55G Y 2
5 4011000475 螺栓GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 N 8
6 4041000137 分体法兰LGB117-306400 FLANGE LGB117-306400 Y 2
7 29030007811 过渡钢管 TRATNSITION STEEL PIPE Y 2
8 29030007891 发动机进水管 HOSE Y 1
9 4017000014 喉箍JB8870-d80 CLAMP JB8870-d80 N 2
10 4041000713 软管LGB165-012250 SOFT HOSE LGB165-012250 Y 1

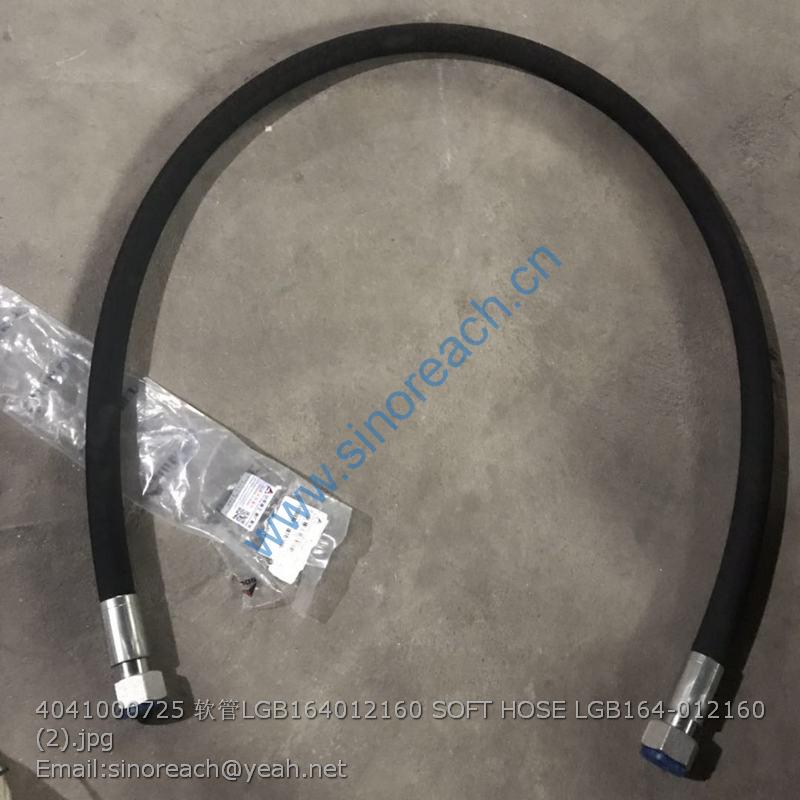

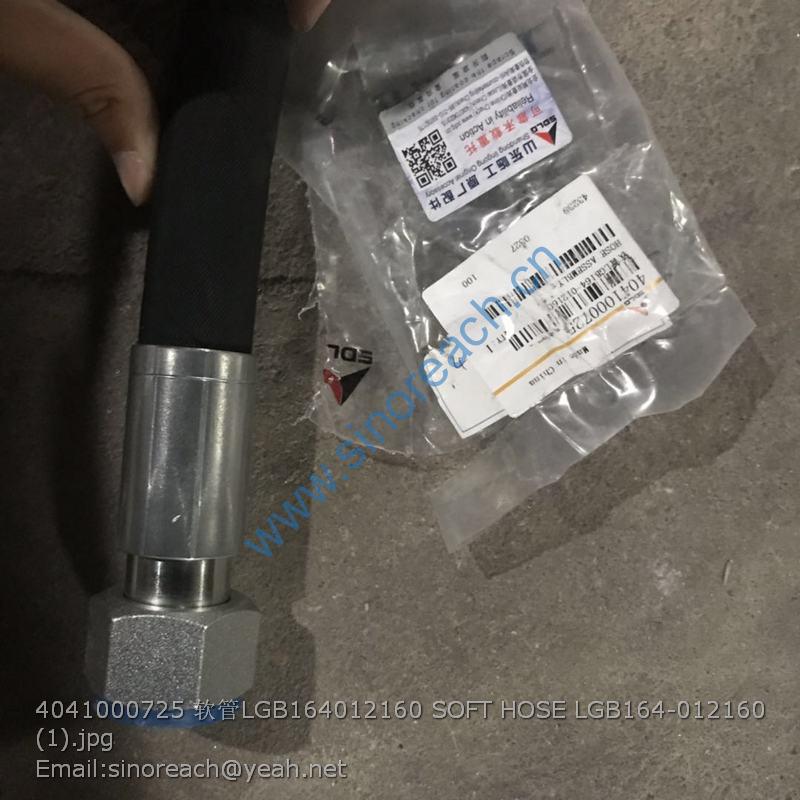

11 4041000725 软管LGB164-012160 SOFT HOSE LGB164-012160 Y 1
12 4041001037 软管LGB164-014235 SOFT HOSE LGB164-014235 Y 1
13 4041001036 软管LGB165-014250 SOFT HOSE LGB165-014250 Y 1
14 29030008271 接头体 CONNECTOR Y 4
15 4015000073 垫圈JB1002-30-T2 WASHER JB1002-30-T2 N 4
16 4041001181 软管LGB165-010110 HOSE LGB165-010110 Y 1
17 29030009991 三通接头 TEE OF THE OIL LINE Y 1
18 29030010001 三通接头 TEE OF THE OIL LINE Y 1
19 29030007842 发动机出水胶管 HOSE Y 1
20 4120000388 胶管JB8406-B10*800 HOSE JB8406-B10*800 Y 1
21 4017000018 喉箍JB8870-d70 CLAMP JB8870-d70 N 2
22 4017000010 喉箍JB8870-d20 CLIP JB8870-d20 N 2
23 29030007861 压板 PRESS PLATE Y 1
24 29030007851 挡风橡胶板 RUBBER PLATE Y 1

25 4011000458 螺栓GB16674-M8*20EpZn-8.8 BOLT GB16674-M8*20EpZn-8.8 N 5
26 4011000481 螺栓GB16674-M8*30EpZn-8.8 BOLT GB16674-M8*30EpZn-8.8 N 6
27 4015000072 垫圈GB97.1-8EpZn-300HV WASHER GB97.1-8EpZn-300HV N 6
28 4013000033 螺母GB6170-M8EpZn-8 NUT GB6170-M8EpZn-8 N 6
29 4120001790 传动油散热器LG938 SHAFTING OIL RADIATOR LG938 Y 1

1 4013000167 螺母GB6172-M12EpZn-05 NUT GB6172-M12EPZN-05 N 4
2 4015000168 垫圈GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV N 4
3 29010006681 连接叉 JOINT FORK Y 1
4 4016000138 销轴GB882-B6*22EpZn-35 PIN GB882-B6*22EpZn-35 N 2
5 4016000114 销GB91-2*16EpZn-Q235A PIN GB91-2*16EpZn-Q235A N 2
6 4013000028 螺母GB6170-M6EpZn-8 NUT GB6170-M6EpZn-8 N 3
7 4015000207 垫圈GB97.1-6EpZn-300HV WASHER N 6
8 4011000101 螺栓GB5783-M6*20EpZn-8.8 BOLT GB5783-M6*20EpZn-8.8 N 3
9 4120000096 油门踏板ZY75-00 ACCELERATOR PEDAL ZY75-00 Y 1
10 29010011921 操纵软轴 CABLE SHAFT Y 1

1 4011000320 螺栓GB16674-M12*40EpZn-8.8 BOLT GB16674-M12*40EpZn-8.8 N 4
2 4110000416 水散热器总成 RADIATOR Y 1
3 4030000279 O形圈GB3452.1-25.0*3.55G O-RING GB3452.1-25*3.55G Y 2
4 4011000475 螺栓GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 N 8
5 4041000829 管夹LGB167-0322 CLAMP LGB167-0322 Y 1
6 4041001269 管夹LGB167-0530 CLAMP LGB167-0530 Y 1
7 29030007891 发动机进水管 HOSE Y 1
8 4017000014 喉箍JB8870-d80 CLAMP JB8870-d80 N 2
9 4041001162 软管LGB164-012300 HOSE LGB164-012300 Y 1
10 4041001163 软管LGB165-012300 HOSE LGB165-012300 Y 1
11 4041000683 软管LGB165-014240 HOSE LGB165-014240 Y 1
12 4041001268 软管LGB164-014290 HOSE LGB164-014290 Y 1
13 29030008271 接头体 CONNECTOR Y 4
14 4015000073 垫圈JB1002-30-T2 WASHER JB1002-30-T2 N 4
15 4041001181 软管LGB165-010110 HOSE LGB165-010110 Y 1
16 29030009991 三通接头 TEE OF THE OIL LINE Y 1
17 29030010001 三通接头 TEE OF THE OIL LINE Y 1
18 29030009271 发动机出水管 HOSE Y 1
19 4120000388 胶管JB8406-B10*800 HOSE JB8406-B10*800 Y 1
20 4017000018 喉箍JB8870-d70 CLAMP JB8870-d70 N 2
21 4017000010 喉箍JB8870-d20 CLIP JB8870-d20 N 2
22 29030007861 压板 PRESS PLATE Y 1
23 29030007851 挡风橡胶板 RUBBER PLATE Y 1
24 4011000458 螺栓GB16674-M8*20EpZn-8.8 BOLT GB16674-M8*20EpZn-8.8 N 5

25 4011000481 螺栓GB16674-M8*30EpZn-8.8 BOLT GB16674-M8*30EpZn-8.8 N 6
26 4015000072 垫圈GB97.1-8EpZn-300HV WASHER GB97.1-8EpZn-300HV N 6
27 4013000033 螺母GB6170-M8EpZn-8 NUT GB6170-M8EpZn-8 N 6
28 4120001959 油散热器总成 OIL RADIATOR Y 1
