Description

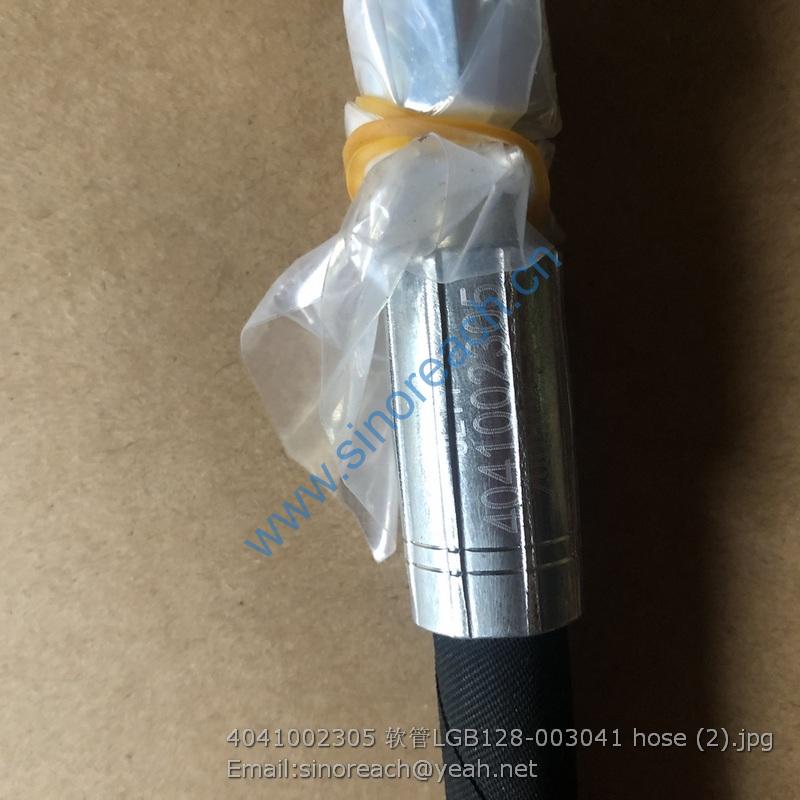

4041002305 LGB128-003041 hose SDLG

1 4041002113 软管LGB127-204165 Hose Y 2
2 4041000604 直接头LGB120-01614 Nipple Y 2
3 4041000767 O形圈LGB168-11124 O-ring Y 4
4 4041000133 直接头LGB120-01414 Nipple Y 2
5 4014000527 螺钉GB70.1-M8*45flZnyc-8.8-480 Screw Y 2
6 4015000036 垫圈GB93-8-65Mn Spring washer Y 2
7 4120001741 液压锁BQ2201-7E Check valve Y 1
8 29180015041 胶管A Hose assembly Y 1
9 29180015051 胶管B Hose assembly Y 1
10 29180012921 隔板接头 Nipple Y 1
11 4013000380 螺母GB6173-M14*1.5flZnyc-05-480 Nut Y 2
12 4015000435 垫圈GB97.1-14flZnyc-300HV-480 Washer Y 2
13 29180012391 隔板接头 Nipple Y 1
14 4041002306 软管LGB128-003030 Hose assembly Y 1
15 4041002305 软管LGB128-003041 Hose assembly Y 1
16 4011001244 螺栓GB16674-M12*40flZnyc-8.8-480 Screw Y 4
17 4120004913 双杆缸HSGF-50*30*135-460 Hydraulic cylinder Y 1
18 29180012441 调整垫片 Shim Y 4
19 29180012451 调整垫片 Shim Y 4

1 4041000598 堵塞LGB142-01604 Plug Y 2
2 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 2
3 29180013981 固定压板 Plate Y 4
4 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 4
5 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4
6 29180013961 快换钢管 Pipe Y 4
7 4190001832 扎丝RTGB-200ST Cable tie Y 4
8 4041002840 软管LGB127-404170 Hose assembly Y 2
9 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 3
10 29180015001 板 Plate Y 1
11 4120002001 过渡接头EW10LOMDCF Nipple N 4
12 4041000767 O形圈LGB168-11124 O-ring Y 5
13 4041000604 直接头LGB120-01614 Nipple Y 5
14 4041000050 软管LGB128-004068 Hose Y 1
15 4041002050 软管LGB127-004060 Hose Y 1
16 4120000368 电磁阀4WE6E61B/CG24NZ4B08 Solenoid valve Y 1
17 29180007862 电磁阀座 Valve seat Y 1
18 4014000513 螺钉GB70.1-M8*30flZnyc-8.8-480 Screw Y 4
19 29180016141 胶管M16-M18 Hose assembly N 1
20 4041000592 软管LGB125-004055 Hose assembly Y 1

1 4120004913002 活塞杆241000540 Piston rod Y 2
2 4120004913001 密封件包 Sealing ring kit Y 2
3 4120004913001 密封件包 Sealing ring kit Y 2
4 4120004913001 密封件包 Sealing ring kit Y 2
5 4120004913001 密封件包 Sealing ring kit Y 2
6 4120004913001 密封件包 Sealing ring kit Y 2
7 4120004913003 缸盖243000153 Cover Y 2
8 4120004913004 缸体242000281 Cylinder tube Y 1
9 4120004913001 密封件包 Sealing ring kit Y 2
10 4120004913005 活塞244000151 Piston Y 2
11 4120004913001 密封件包 Sealing ring kit Y 2
12 4120004913001 密封件包 Sealing ring kit Y 2
13 4014000335 螺钉GB77-M8*8-45H Screw Y 2
14 4090000063 钢球GB308-4.5-GCr15 Ball Y 1 29220001251 制动器管接头 Nipple Y 4
2 29220009991 桥油管 Brake pipe Y 4
3 4030000552 O形圈 O-ring Y 16
4 29220009021 接头块 Block Y 8
5 29220009011 管接头 Nipple Y 4
6 29220010421 后桥右油管 Brake pipe Y 1
7 29220010441 板 Plate Y 2
8 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 3
9 29220009031 三通接头 Three-way nipple Y 2
10 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 10
11 29220010681 加力泵至后桥油管 Hose Y 1
12 4041001390 软管LGB144-105130 Hose assembly Y 1
13 4011000281 螺栓GB16674-M6*40EpZn-8.8 Bolt Y 2
14 4120002025 梭阀VS22 Shuttle valve Y 1
15 4041001682 软管LGB153-202300 Hose assembly Y 1
16 4041001244 软管LGB145-205036 Hose assembly Y 1
17 29220001201 弯接头总成 Nipple Y 2
18 4030000055 螺塞JB1000-M22*1.5EpZn-35 Plug Y 2
19 4120003758 气制动阀LY60E Brake valve Y 2
20 4120003757 制动灯开关YK209KLA Pressure switch Y 2
21 29220008981 压板 Plate Y 4
22 4011000180 螺栓GB5783-M8*12EpZn-8.8 Screw Y 8
23 29220010381 前桥右油管 Brake pipe Y 1
24 29220010361 前桥左油管 Brake pipe Y 1
25 29220013841 板 Plate Y 1
26 29220001191 直接头 Nipple Y 5
27 29220008771 三通接头总成 Three-way nipple Y 1
28 4041001410 软管LGB144-105150 Hose assembly Y 1
29 4041001946 软管LGB145-205063 Hose assembly Y 1
30 4041001210 软管LGB145-205043 Hose assembly Y 1
