Description

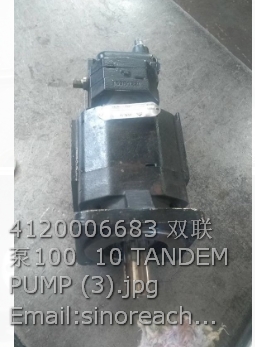

4120006683 TANDEM PUMP

1 4110001383001 液压油散热器S9110087A Hydraulic oil cooler Y 1
2 4110002851001 水散热器S9112271B Radiator Y 1
3 4110001381202 导风罩DB0016 Fan shroud Y 1
4 4110002851002 左框架KB0377 Framework N 1
5 4110002851003 传动油散热器 Oil cooler Y 1
6 4110002851004 下钢架 Framework Y 1
7 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 60
8 4011000723 螺栓GB5783-M8*20-8.8 Bolt Y 12
9 4015000036 垫圈GB93-8-65Mn Spring washer Y 12
10 4015000315 P-垫圈GB97.1-8-300HV Washer Y 16
11 4011001273 螺栓GB5783-M6*20flZnyc-8.8-480 Screw Y 8
12 4015000230 P-垫圈GB97.1-6-300HV Washer N 8
13 4015000035 垫圈GB93-6-65Mn Spring washer Y 8
14 4110002025012 蒸汽管∮8 L=1000mm 8010081000 Rubber pipe Y 1
15 4110002025013 蒸汽管∮8 L=800mm 8010080800 Rubber pipe Y 1
16 4110002851005 卡箍 Clamp N 2
17 4110002506026 临工标牌700004 Name plate N 1
18 4110002851006 上钢架KB0378 Framework N 1
19 4110002851007 右框架KB0379 Framework N 1
20 4110002025008 护网部件HB0047 Hood Y 2
21 4110002851008 硬橡胶减震垫 Damper mat N 4
22 4110002851009 下挡风板330441 Wind deflector Y 1
23 4110002851010 U型密封条8290011200 Lip seal N 1
24 4110002851011 挡风板330440 Wind deflector Y 1
25 4110002851012 U型密封条8290012890 Lip seal N 1
26 4110002851013 U型密封条8290010255 Lip seal N 2

1 29050018471 接头体 Nipple Y 2
2 4030000013 O形圈GB1235-32*3.1 O-ring Y 2
3 4011000107 螺栓GB5783-M8*30EpZn-8.8 Bolt Y 4
4 4015000036 垫圈GB93-8-65Mn Spring washer Y 4
5 29040000021 变速箱至滤清器油管 Hose assembly Y 1
6 29040000031 滤清器至变速箱油管 Hose assembly Y 1
7 4011000207 螺栓GB5783-M12*45EpZn-8.8 Bolt Y 12
8 4015000026 垫圈GB93-12-65Mn Spring washer Y 14
9 29040000041 密封垫 Gasket Y 1
10 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 2
11 29040000051 滤清器支架 Bracket Y 1
12 4110000507 滤清器QF60M33G-1 Oil filter Y 1

1 4110000011081 导轮座YB315Z5-13A Seat Y 1
2 4110000011082 密封环YB315Z5-33 Sealing ring Y 1
3 4110000011083 密封环YB315Z5-12A Sealing ring Y 1
4 4110000011084 弹性圈YB315Z5-25 Spring washer N 1
5 4110000011085 壳体YB315Z5-08D Housing Y 1
6 4110000011086 螺栓M8*16 01010-50816 Screw Y 8
7 4110000011087 垫圈801602-10825 Washer Y 4
8 4110000011088 垫板YB315Z5-06D Spacer Y 1
9 4110000011089 胶垫YB315Z5-07D Gasket Y 1
10 4110000518016 齿轮YJSW315-8B-00001 Gear Y 1
11 4021000076 滚动轴承GB276-6017 Ball bearing Y 2
12 4110000011091 螺栓M8*35 01010-50835 Screw Y 38
13 4110000518001 泵轮YJSW315-8A-00003 Impeller Y 1
14 4110000518002 螺母01580-00806 M8 Nut Y 24
15 4110000011121 调整垫YB315Z5-35 Washer Y 1
16 4110000011094 压紧垫片YB315Z5-22A Washer Y 1
17 4110000518003 导轮YJSW315-8A-00002 Stator Y 1
18 4015000208 挡圈GB894.1-85-65Mn Retaining ring Y 1
19 4110000518013 罩轮YJSW315-8A-00001 Wheel Y 1
20 4110000011113 调整垫YB315Z5-34 Washer N 1
21 4110000011096 调整垫YB315Z5-30/31/32 Washer Y 1
22 4110000011114 弹性板总成YJSW315-20000 Plate Y 1
23 4110000011115 弹性板YJSW315-20001 Plate Y 2
24 4011000663 螺栓GB21-M10*25EpZn-8.8 Bolt Y 9
25 4110000011097 垫圈10 01602-11030 Washer Y 2
26 4110000518008 管接头YB315Z5-14S Nipple N 2
27 4110000011128 垫圈30 YB315Z5-09组合密封垫圈 Washer N 1
28 4110000011100 阀盖YB315Z5-17A Bracket Y 1
29 4110000011101 弹簧YB315Z5-18A Spring Y 1
30 4110000011102 调压垫YB315Z5-16.21 Washer Y 3
