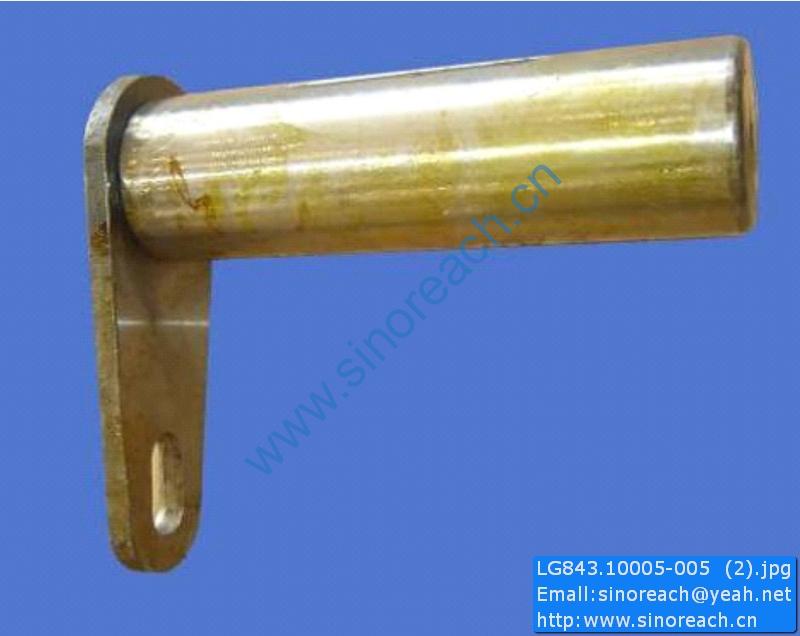

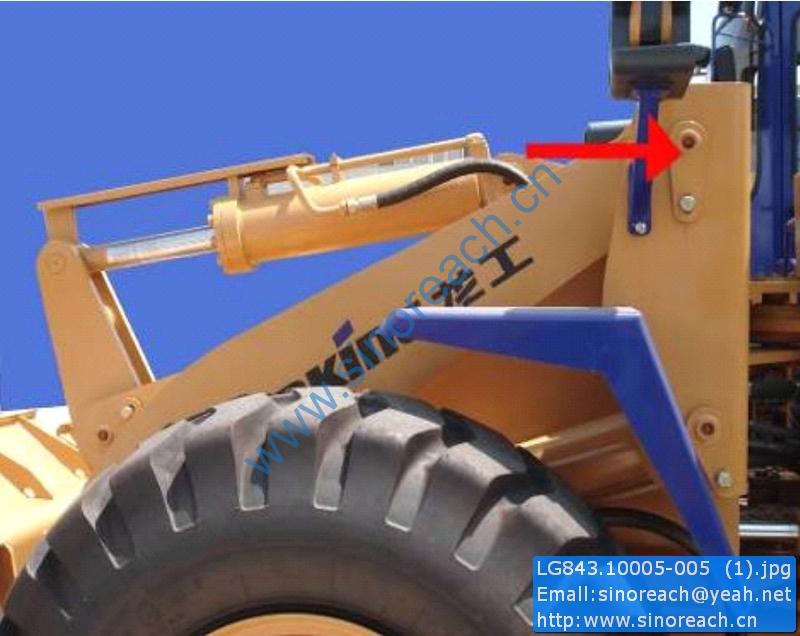

LG843.10005-005 Lift arm upper pin CDM843 parts

1 WZ30.13-6 挡圈50 Ring 6
2 WZ30.13-7 厚垫圈 Washer 16
3 WZ30.13-9 轴 Shaft 2
4 WZ30.13-8 薄垫圈 Washer 6
5 WZ30.13-5 轴 Shaft 1
6 WZ30.13.2-1 轴套50 Bushing 4
7 B-J07940A-00001 油杯M10×1 Grease cup 2
8 WZ30.13-4 橡胶圈 Rubber pad 1
9 WZ30.13.4 插销 Pin 1
10 WZ30.13.3 支承 Strut 1
11 B-G000930-00001 垫圈10 Washer 5
12 B-G061700-00003 螺母M10ZnD Nut 5
13 WZ30.13.2.1 动臂组件 Frame 1
14 WZ30.13.2-3 轴套40B Bushing 4
15 WZ30.13.7 轴 Shaft 2
16 WZ30.13-12 挡圈40 Washer 8
17 WZ30.13.2-2 轴套38 Bushing 4
18 WZ30.13-10 轴 Shaft 1
19 WZ30.13-11 轴 Shaft 1

1 B-G008890-00009 螺母M20-10ZnD Nut 4
2 B-Q020490-00011 垫圈20 Washer 8
3 WZ30.13.5-1 摇臂板 Rocker 3
4 WZ30.13-13 套 Shaft 4
5 B-G057820-00116 螺栓M20×200-10.9ZnD Bolt 4
6 WZ30.13.6.1 摇臂(右二) Rocker 1
7 WZ30.13.5-2 轴套 Bushing 4
8 WZ30.13-12 挡圈40 Washer 8
9 WZ30.13.8 轴 Shaft 2
10 B-G057830-00143 螺栓M8×25ZnD Bolt 2
11 B-G000930-00017 垫圈8 Washer 2
12 WZ30.13-3 指针板 Pointer 1
13 WZ30.13-2 右连杆 Left link 1
14 WZ30.13-1 左连杆 Right link 1
15 WZ30.13.7 轴 Shaft 2
