Description

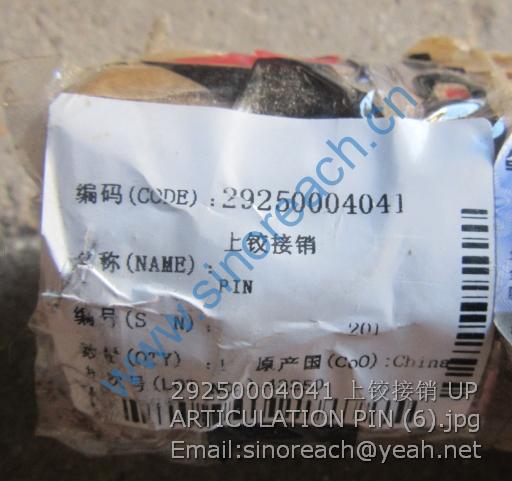

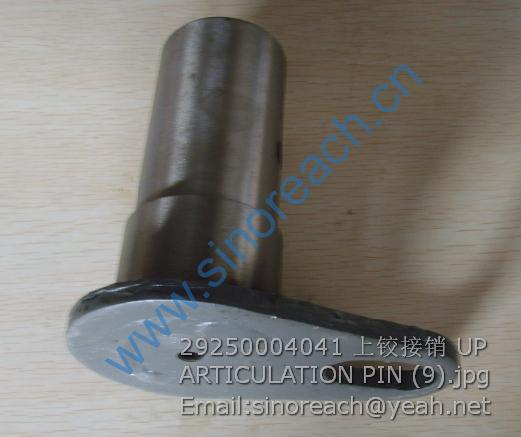

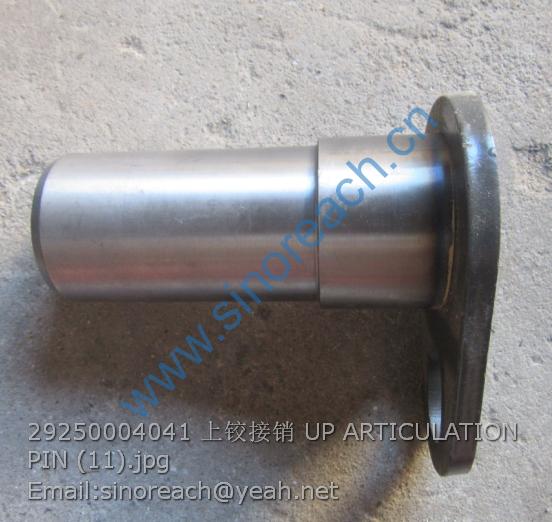

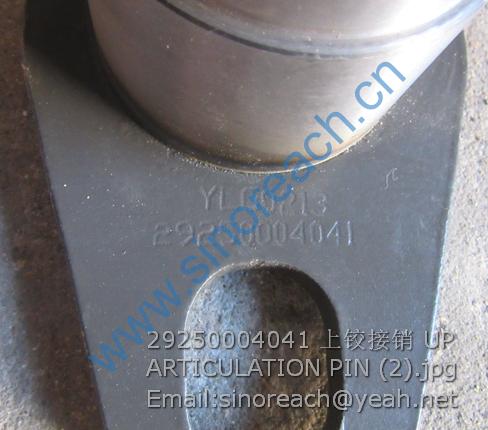

29250004041 UP ARTICULATION PIN for LG933 LG936

1 4016000143 销轴GB882-B8*26EpZn-35 PIN GB882-B8*26EpZn-35 N 2
2 4015000072 垫圈GB97.1-8EpZn-300HV WASHER GB97.1-8EpZn-300HV N 3
3 4016000183 开口销GB91-3.2*22EpZn-Q235A PIN GB91-3.2*22EpZn-Q235A N 3
4 29060007801 连接叉 CONNCECTING FORK Y 1
5 29060007761 支承架 BRACKET FRAME Y 1
6 4011000137 螺栓GB16674-M12*20EpZn-8.8 BOLT GB16674-M12*20EpZn-8.8 N 2
7 4016000141 销轴GB882-B8*22EpZn-35 PIN GB882-B8*22EpZn-35 N 1
8 29060000041 连接块 CONNECTING BLOCK Y 1
9 4190000871 变速操纵软轴LG06-BSCZ-936A TRANSMISSION CABLE SHAFT LG06-BSCZ-936 Y 1
10 29060000051 螺栓 BOLT Y 2
11 4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn N 2
12 29060007891 感应块 INDUCT BLOCK Y 1

1 4120000064005 阀体ZL30.05.17-1 VALVE BODY ZL30.05.17-1 N 1
2 4015000209 垫圈JB982-30 WASHER JB982-30 Y 2
3 4120000064003 螺栓ZL30.05.17-2 BOLT ZL30.05.17-2 N 2
4 4120000064007 减压阀杆ZL30.05.17-4 VALVE ROD ZL30.05.17-4 N 1
5 4120000064013 刹车阀杆ZL30.05.17-5a VALVE ROD ZL30.05.17-5a N 1
6 4120000064002 刹车弹簧ZL30.05.17-6 SPRING ZL30.05.17-6 Y 1
7 4120000064006 压力表接头403727-A MANOMETER JOINT 403727-A Y 1
8 4120000064028 弹簧ZL30.05.17-7 SPRING ZL30.05.17-7 N 2
9 4090000120 钢球GB308-12.7-GCr15 STEEL BALL GB308-12.7-GCr15 N 2
10 4120000064024 分配阀杆ZL30.05.17-8 VALVE ROD ZL30.05.17-8 N 1
11 4015000122 垫圈JB982-24 WASHER JB982-24 N 1
12 4120000064031 螺栓ZL30.05.17-10 BOLT ZL30.05.17-10 N 1
13 4120000064034 垫圈ZL30.05.17-11/2 WASHER ZL30.05.17-11/2 N 1
14 4030000012 O形圈GB1235-22*2.4 O-RING GB1235-22*2.4 Y 1
15 4030000731 0形圈GB1235-30*2.4 O-RING GB1235-30*2.4 Y 1
16 4120000064025 挡套ZL30.05.17-11 SPACER SLEEVE ZL30.05.17-11 N 1
17 4120000064026 骨架油封18*30*10 HG4-692-67 OIL SEAL 18*30*10 HG4-692-67 Y 1
18 4015000283 挡圈GB893.1-30-65Mn CHECK RING GB893.1-30-65Mn N 1

19 4120000064017 螺栓ZL30.05.17-19 BOLT ZL30.05.17-19 N 1
20 4120000064035 气阀座ZL30.05.17-12A VALVE SEAT ZL30.05.17-12A N 1
21 4120000064036 气阀杆ZL30.05.17-13B VALVE ROD ZL30.05.17-13B N 1
22 4030000268 O形圈GB3452.1-17.0*1.80G O-RING GB3452.1-17.0*1.80G Y 1
23 4030000011 O形圈GB1235-20*2.4 O-RING GB1235-20*2.4 Y 1
24 4015000308 挡圈GB893.1-20-65Mn RETAINER GB893.1-20-65Mn N 1
25 4120000064037 气阀体ZL50.6.18-16a/1 VALVE BODY ZL50.6.18-16a/1 N 1
26 4120000064018 螺母ZL25.1-09A NUT ZL25.1-09A N 1
27 4120000064014 圆柱塞ZL30.05.17-18 ROUND PLUG ZL30.05.17-18 N 1
28 4030000634 0形圈GB1235-13*1.9 O-RING GB1235-13*1.9 N 1
29 4120000064001 螺栓Φ55*31 ZL30.05.17-20 BOLT Φ55*31 ZL30.05.17-20 Y 1
30 4015000307 垫圈JB982-42 WASHER JB982-42 N 1
31 4120000064011 滑块ZL30.05.17-22 SLIDE BLOCK ZL30.05.17-22 N 1
32 4120000064033 圆板ZL30.05.17-26 CIRCULAR FLAT-PLATE ZL30.05.17-26 N 1
33 4090000154 钢球GB308-4.762-GCr15 STEEL BALL GB308-4.762-GCr15 N 1
34 4120000064010 弹簧ZL30.05.17-23 SPRING ZL30.05.17-23 Y 1
35 4120000064009 弹簧ZL30.05.17-24B SPRING ZL30.05.17-24B Y 1
36 4120000064008 弹簧座ZL30.05.17-25 SPRING SEAT ZL30.05.17-25 N 1
