Description

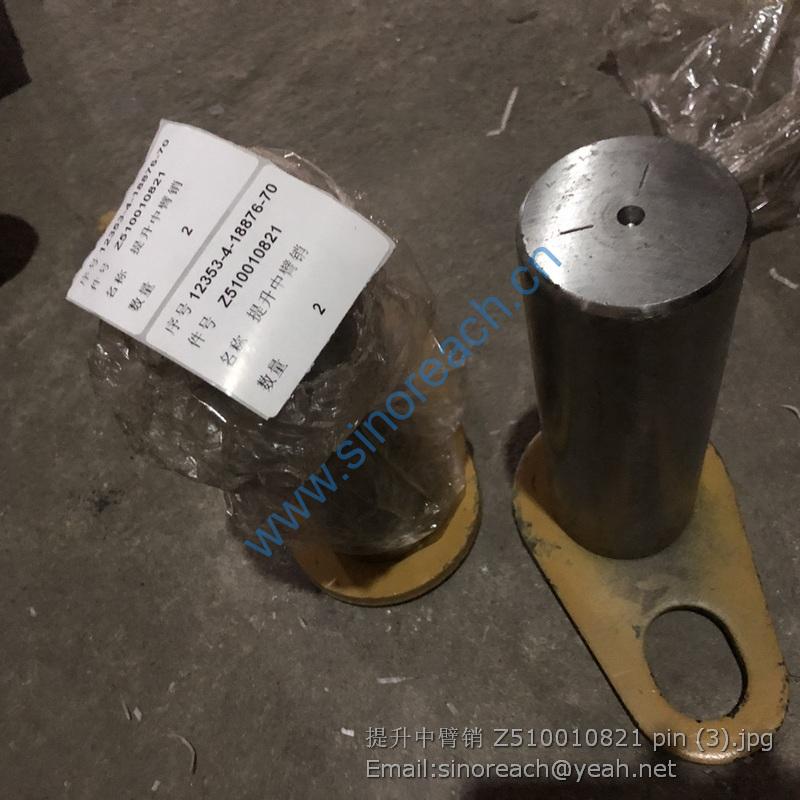

Z510010821 pin

1 螺栓 Bolt B040911625
8T4190 M16×25
GB/T5783-2000 6
2 动臂前销轴总成
lift arm front pin
assembly Z510010821 2
3 防尘圈 dust ring Z510010860 ZL50D.1-26 4
4 调整垫片 adjusting shim Z520010010 ZL50F.1-5 δ0.5 4
5 调整垫片 adjusting shim Z520010060 ZL50F.1-11 δ1 4
6 调整垫片 adjusting shim Z520010070 ZL50F.1-12 δ2 4
7 骨架油封 Skeliton oil seal B160420007
4314603 FB70×
90×10
GB/T9877.1-1988 8
8 铲斗动臂销衬套
bucket lift arm pin
bushing Z5100108502 2
9 平垫 washer Z520020890 2414934 6
10 摇臂主销轴总成 rocker arm main pin AS Z510010531 1
11 调整垫片 adjusting shim Z520010050
ZL50F.1-10 δ
0.5 4
12 调整垫片 adjusting shim Z520010120 ZL50F.1-17 δ1 4
13 调整垫片 adjusting shim Z520010130 ZL50F.1-18 δ2 2

14 螺栓 Bolt B040912040
8T5460 M20×40
GB/T5783-2000 2
15 平垫 washer Z510011080 2
16 隔套 Stell ring Z510011070 2
17 动臂中销轴总成 lift arm mid pin assembly Z510010501 2
18 动臂中销衬套
tile lever main pin
bushing Z5100100202 2
19 动臂后销衬套 lift arm rear pin bushing Z5100100102 2
20 动臂 lift arm Z510010662 1
21 摇臂上销轴总成 rocker arm upper pin AS Z510010561 2
22 650B2 摇臂组件 #N/A NZ5B05702000 1
23 拉杆组件 65XB #N/A NZ5A10400200 1
24 调整垫片 adjusting shim Z520010030 ZL50F.1-8 δ0.5 4
25 调整垫片 adjusting shim Z520010080 ZL50F.1-13 δ1 4
26 调整垫片 adjusting shim Z520010090 ZL50F.1-14 δ2 2
27 骨架油封 Skeliton oil seal B160420008
FB80×100×10
GB/T9877.1-1988 4
28 C-销轴组件（短） PIN AS. Z5A104009 1

1 摆动架总成 Bolt NZ5B01500100
8T4190 M16×25
GB/T5783-2000 1
2 衬套
lift arm front pin
assembly Z520150130 2
