Description

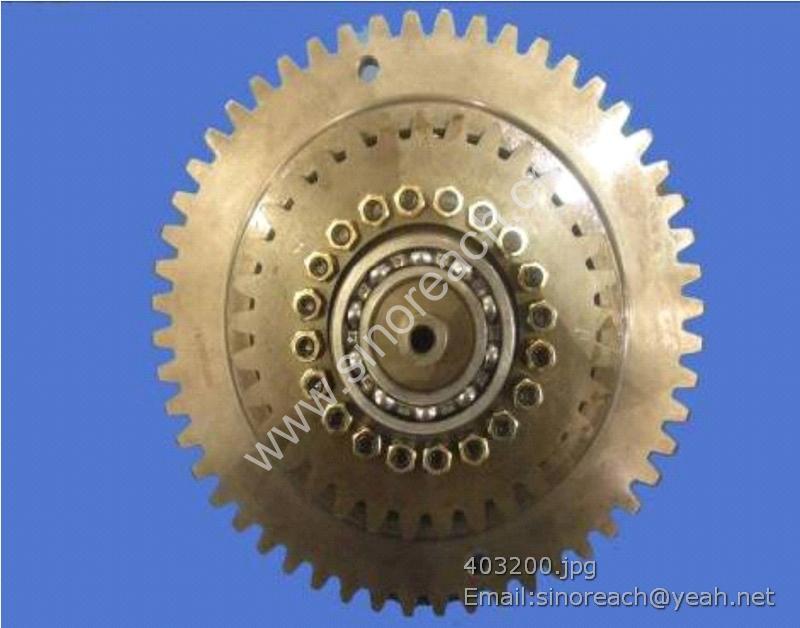

B00508+403201-211 LG853.03.01.02.01 Shaft Ⅱ assembly for LONKING spare part

GB/T97.1 垫圈8 Washer 8 4
GB/T93 垫圈8 Washer 8 4
GB/T5783 螺栓M8×16 Bolt M8×16 4
LG30F.08Ⅰ.01 储气筒 Air tank 1 308400D
408409-409 充气阀 Inflation valve 1
JN150-35011030 安全阀 Safety valve 1
LG853.15.27 低压报警开关 Low pressure alarm switch 1 SH361
MQP-3553 手动放水阀 Manual drain valve 1 JN162

LG853.09.03 手刹操纵装置 Manual brake control device 1
LG30F.09Ⅰ.01 手制动软轴 Manual brake flexible shaft 1 309001-001D
LG853.09-001 软轴连接叉 Flexible shaft connecting fork 1
GB/T882 销轴B10×35 Pin B10×35 1
GB/T91 开口销3×30 Cotter pin 3×30 1
GB/T97.1 垫圈10 Washer 10 1

LG30F.10Ⅰ.01 前车架 Front frame 1 LG30F.10100A
LG30F.10Ⅰ.02 后车架 Rear frame 1 LG30F.10200A(D)
LG30F.10Ⅰ.04 转斗缸后销轴 Tilt cylinder rear pin 1 411004-005
GB/T5782 螺栓 Bolt M12×30 30
GB/T93 垫圈12 Washer 12 42
JB/T7940.1-1995 油杯M10×1 Oil cup M10×1 11 GB1152-79
LG30F.10Ⅰ.05 动臂上销轴 Lift arm upper pin 2 310004-004D
GB/T5782 螺栓M10×20 Bolt M10×20 4
GB/T93 垫圈10 Washer 10 4
GB/T97.1 垫圈 10 Washer 10 4
LG30F.10Ⅰ-001 盖板 Cover board 1 310001D
LG30F.10Ⅰ-002 动臂油缸销轴 Lift cylinder pin 2 310003D
LG30F.10Ⅰ.03 摆动架 Oscillating suspension 1 310044-048D
LG30F.10Ⅰ.07 注油管 Oil filling pipe 2 410035-036B
LG853.10-010 铜垫 Copper spacer 2
LG853.10-012 套 Sleeve 2
LG853.10-011 副车架销 Oscillating suspension pin 2 410012-13A
LG30F.10Ⅰ-003 盖 Cover 1 310005D
LG30F.10Ⅰ-004 轴套 Shaft sleeve 1 310006D
LG30F.10Ⅰ-005 轴承盖 Bearing cover 2 310007D
GB/T5782 螺栓M12×100 Bolt M12×100 8
GB/T6170 螺母M12 Nut M12 8
GBHG4-692-67 油封90×70×12 Oil seal 90×70×12 2
