Description

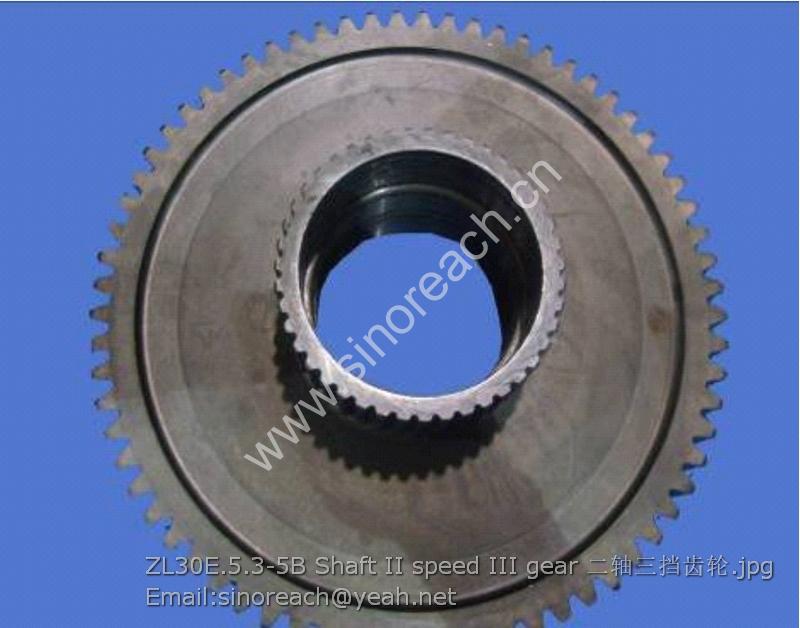

LONKING ZL30E.5.3-5B Shaft II speed III gear

ZL306300-30 活塞杆 Piston rod
A5 4030 N3587 防尘圈45×53×7 Dust ring 45×53×7
GB894.2-86 轴用弹性挡圈70 Elastic spacer for shaft 70
ZL306300-50 环 Ring
BS 4561 P5008 Y型圈45×60×11.4 Y-ring 45×60×11.4
ZL306300 弹簧挡圈80×4 Spring spacer 80×4
GB3452.1-82 ○形圈71×5.3 O-ring 71×5.3
OD 0450 052 00171 D OD密封圈45×60.1×6.3 OD seal 45×60.1×6.3
ZL306300-40 导向套 Guide sleeve
FR 4505 Q5029 支承环45×50×9.7 Support ring 45×50×9.7
FR 7506 Q5029 支承环75×80×9.7 Support ring 75×80×9.7
GB3452.3-88 ○形圈45×3.55 O-ring 45×3.55
OK 0080 00701 OK密封环80×59×8 OK seal 80×59×8
GB/T78-2000 螺钉M8×20 Screw M8×20
ZL306300-20 活塞 Piston
ZL306300-10 缸体 Cylinder body
GB893.2-86 挡圈62 Spacer 62
GB9163-90 关节轴承GE40ES Joint bearing GE40ES
GB2509-81 轴套40×48×45 Shaft sleeve 40×48×45

LG30F.07.01A 转斗油缸 Tilt cylinder 1 HSGK140/80X553
LG30F.07Ι.03 转斗缸后腔钢管 Pipe of tilt cylinder rear chamber 1 307011-013D
GB/T3452.1-1992 O形圈30×3.55 O-ring 30×3.55 2
GB/T5783 螺栓M10×30 Bolt M10×30 33
GB/T93 垫圈10 Washer 10 61
H-H/25/28-Ⅱ-L950 转斗油缸胶管 Tilt cylinder hose 2
LG30F.07Ι.04 多路阀至转斗缸后腔钢管 Pipe from implement valve to tilt cylinder rear chamber 1 307023-023D
LG853.07-007 压板 Press plate 6 407021B
GB1235-76 O形圈45×3.5 O-ring 45×3.5 6
GB/T5782 螺栓M10×42 Bolt M10×42 24
LG30F.07Ι.05 多路阀至转斗缸前腔钢管 Pipe from implement valve to tilt cylinder front chamber 1 307014-015D
LG30F.07Ι.06 前车架回油过渡接头 Front frame oil return transit connector 1 LG30F.07007-007A-1
H-H/32/34-Ⅱ-L880 铰接回油胶管 Articulated oil return hose 1
LG30F.07Ι.07 后车架回油过渡接头 Rear frame oil return transit connector 1 LG30F.07009-009A
90F(32)-H/25/28-Ⅱ-L800 工作泵出油胶管 Implement pump oil-outlet hose 2
LG30F.06.01 双联齿轮泵 Duplex gear pump 1 CBG2080/2040-B3BL
LG853.06-001 密封垫 Seal gasket 1
GB/T989 双头螺柱AM12×45 Stud AM12×45 4
GB/T6170 螺母M12 Nut M12 8
GB/T97.1 垫圈12 Washer 12 6
GB/T93 垫圈12 Washer 12 12
