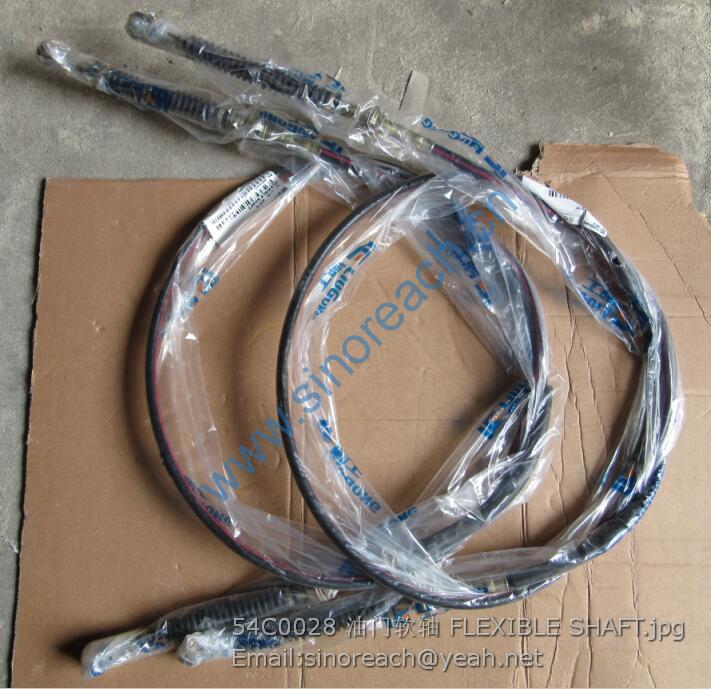

54C0028 FLEXIBLE SHAFT For Wheel Loader Clg842
1 00B0010 GB5783-86
螺栓
BOLT
M6×20-8.8-Zn.D 2
2 06B0003 GB93-87
垫圈
WASHER
6 7
3 50C0028 ZY75-00B
油门踏板
PEDAL-
1
4 00B0023 GB5783-86
螺栓
BOLT
M6×25-8.8-Zn.D 2
5 06B0024 GB97.1-85
垫圈
WASHER
6-140HV-Zn.D 4
6 03B0036 GB6170-86
螺母
NUT
M6-8-Zn.D 2
7 21A0859 ZL50CVIII.1-4 支板
SUPPORT
1
8 54C0028
油门软轴
FLEXIBLE SHAFT
1
9 00B0011 GB5783-86
螺栓
BOLT
M12×25-8.8-Zn.D 2
CLG842 2008.03.000
13
10 06B0008 GB93-87
垫圈
WASHER
12 2
11 02D0912
支座
SUPPORT
1
12 21A1045
油门手柄
LEVER
1
13 00B0021 GB5783-86
螺栓
BOLT
M6×12-8.8-Zn.D 2
14 02D1217
支座
SUPPORT
1
15 02D1218
油门手柄
LEVER
1
1 60A0011 ZL50C.2-26 定位销 PIN 2
2 62A0023 右半轴
RIGHT AXLE
SHAFT
1
3 41C0026
前桥主传动
-DL1600
PRIMARY
REDUCTION
1
4 74A1188 桥铭牌 NAMEPLATE 1
5 09B0002 GB827-86 铆钉
RIVET
2×5 4
6 03B0212 螺塞
OIL NUT
4
7 06B0055 垫圈 27 WASHER 27 4
8 81A0004 垫片 GASKET 1
9 00B0273 GB5783-86 螺栓 BOLT M14×40-8.8-Zn.D 54
10 06B0013 GB93-87 垫圈 WASHER 14 54
11 03B0406 通气塞 BREATHER Z1/8-27 1
13 01B0001 GB5785-86 螺栓 BOLT
M30×2×160-8.8-Zn
.D
8
14 03B0195 CB083033-3 锁紧螺母 LOCK NUT M30×2-8 8
15 45C0005 ZL50C.2.2A 夹钳总成
TORQUE PLATE
ASSEM.
4
16 24D0006
桥壳轮边支
承轴
AXLE HOUSING
SUPPORT
1
17 13B0213 BASL 9491 密封圈 SEAL BASL140×170×15 2
18 76A0019 卡环 SNAP 2
19 23B0001 GB/T297-1994
圆锥滚子轴
承 32022
ROLLER BEARING 110×170×38 2
20 70A0016 ZL40B.2-7 轮毂 WHEEL HUB 2
21 12B0093 O 形圈
O-RING
445×5 2
22 01B0181 ZL50C.2-10A 轮辋螺栓
BOLT
20
23 03B0201 120-3103018 轮辋螺母 NUT 20
24 03B0150 GB6171-86 螺母 NUT M20×1.5-8-Zn.D 20
25 06B0019 GB93-87 垫圈 WASHER 20 20
26 70A0017 行星轮架
PLANNET
CARRIER
2
27 46A0004 内齿轮 RING GEAR 2
28 20B0022 GB309-84 滚针 NEEDLE ROLLER P5×50 186
29 76A0020 ZL40B.2-12A 垫片 GASKET 12
30 60A0121 ZL40B.2-13 行星齿轮轴 PLANNET SHAFT 6
31 20B0026 GB308-89 钢球 BALL 9.525 6
32 53A0064 ZL40B.2-16 盖 COVER 2
33 41A0036 行星齿轮
PLANETARY
GEAR
6
34 41A0034 太阳轮 SUN GEAR 2
35 07B0028 GB894.1-86 挡圈 SNAP 55 2
36 61A0019 ZL50C.2-20 轴 SHAFT 2
37 03B0010 ZL50C.2-22 圆螺母 ROUND NUT 2
38 04B0022 GB70-85 螺钉 SCREW M10×25-8.8-Zn.D 4
39 06B0002 GB93-87 垫圈 WASHER 10 4
40 00B0017 GB5783-86 螺栓 BOLT M12×30-8.8-Zn.D 12
41 06B0008 GB93-87 垫圈 WASHER 12 12
42 81A0026 密封垫 GASKET 2
43 23B0010 GB/T297-1994
圆锥滚子轴
承 32221
ROLLER BEARING 105×190×53X43 2
44 52A0038 ZL40B.2-19 制动盘 BRAKE DISK 2
45 27A0052 ZL40B.2-20 防尘罩 DUST HOOD 2
46 62A0022 左半轴 LEFT AXLE SHAFT 1
