Description

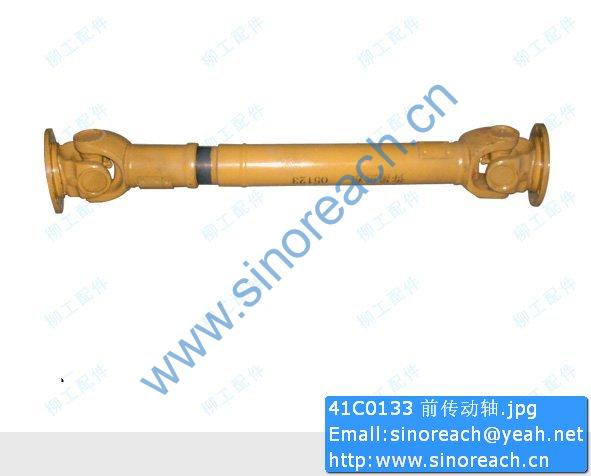

41C0133 Front drive shaft for LIUGONG part

46C5093X1 08C0638 Frame connection cable; assembly parts
46C5093X1 05B0072 Double-ended stud; 45
46C5093X1 83A0085 Rubber retaining ring; industrial rubber sheet A
46C5093X1 06B0097 Washer; GB97.1-85; 4-140HV-Zn.D; STL
46C5093X1 30B0121 pressure switch; assembly parts
46C5093X1 06B0022 Washer; GB93-87; 4; 65Mn
46C5093X1 06B0002 Washer; GB93-87; 10; 65Mn
46C5093X1 06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
46C5093X1 04B0198 screw; GB818-85; M4×12-4.8-Zn.D; STL
46C5093X1 03B0053 Nut; GB6170-86; M10-8-Zn.D; STL
46C5093X1 00B0056 bolt; GB5783-86; M10×16-8.8-Zn.D; STL
46C5093X1 37B0915 Fuse box; AGGL
46C5093X1 37B0776 Fuse; LITTELFUSE 30A; ASSY
46C5093X1 37B0749 connecting piece; H62
46C5093X1 37B0708 fuse; 60A-32V-BF1-M5
46C5093X1 30B0058 Air pressure sensor; assembly parts
46C4397X1 32B0038 Right rear small lamp; assembly parts
46C4295 00B0022 Bolt; GB5783-86; M6×16-8.8-Zn.D; STL
46C4295 00B0386 bolt; GB5783-86; M12×35-10.9-Zn.D; STL
46C4295 00D5296 bracket; WELD
46C4295 06B0024 Washer; GB97.1-85; 6-140HV-Zn.D; STL
46C4295 06B0003 Washer; GB93-87; 6; 65Mn
46C4295 06B0007 Washer; GB97.1-85; 12-140HV-Zn.D; STL
46C4295 11A5038 rear cover; Q235
46C4295 32B0099 Combined headlamp-right; fitting
46C4295 06B0008 Washer; GB93-87; 12; 65Mn
46C4295 00D5294 light box; WELD
46C4296 00B0022 Bolt; GB5783-86; M6×16-8.8-Zn.D; STL
46C4296 00B0386 bolt; GB5783-86; M12×35-10.9-Zn.D; STL
46C4296 00D5297 bracket; WELD
46C4296 06B0024 Washer; GB97.1-85; 6-140HV-Zn.D; STL
46C4296 06B0003 Washer; GB93-87; 6; 65Mn
46C4296 06B0007 Washer; GB97.1-85; 12-140HV-Zn.D; STL
46C4296 11A5038 rear cover; Q235
46C4296 32B0098 Combined headlight-left; assembly parts
46C4296 06B0008 Washer; GB93-87; 12; 65Mn
46C4296 00D5295 light box; WELD
46C4397X1 32B0037 Left rear small lamp; assembly parts
46C4396 08C0740 Battery positive to starter motor cable
46C4396 08C0485 battery connection cable; assembly parts
46C4396 03B0053 Nut; GB6170-86; M10-8-Zn.D; STL
46C4396 06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
46C4396 05B0072 Double-ended stud; 45
46C4396 08C3617 Grounding copper tape; ASSY
46C4460 00B0005 bolt; GB5783-86; M10×20-8.8-Zn.D; STL
46C4460 06B0002 Washer; GB93-87; 10; 65Mn
46C4460 06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
46C4460 21A6596 mounting plate; Q195
46C4460 34B0087 negative switch; assembly parts
46C4396 37B0108 battery; 120Ah/850CCA; assembly parts
46C4396 08C0735 Battery negative to negative switch cable
46C4396 06B0007 Washer; GB97.1-85; 12-140HV-Zn.D; STL
46C4396 06B0008 Washer; GB93-87; 12; 65Mn
46C4396 00B0017 bolt; GB5783-86; M12×30-8.8-Zn.D; STL
46C4396 08C0595 Starter motor grounding cable; assembly parts
46C4396 06B0002 Washer; GB93-87; 10; 65Mn
46C4396 83A0142 Guard ring; φ60; δ15-25
46C4395 08C5451 Front frame wiring harness; ASSY
46C4395 38B0187 Horn; ASSY
46C4395 21A6448 mounting plate; Q235
46C4395 06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
46C4395 00B0012 Bolt; GB5783-86; M10×25-8.8-Zn.D; STL
46C4395 21A1026 support plate
46C4395 06B0003 Washer; GB93-87; 6; 65Mn
46C4395 00B0021 Bolt; GB5783-86; M6×12-8.8-Zn.D; STL
09C0117 56A0183 Wire clamp 26; Q235
46C4395 83A0216 Guard ring; φ50; industrial rubber sheet A
46C4395 00B0011 Bolt; GB5783-86; M12×25-8.8-Zn.D; STL
46C4395 06B0008 Washer; GB93-87; 12; 65Mn
46C4395 06B0007 Washer; GB97.1-85; 12-140HV-Zn.D; STL
46C4395 00D5377 bracket; WELD
46C4395 00B0301 bolt; GB5783-86; M10×12-8.8-Zn.D; STL
46C4395 00D5381 mounting plate; WELD
46C4395 20A1851 Wire clamp; 10; assembly
46C4395 03B0021 Nut; GB6170-86; M8-8-Zn.D; STL
46C4395 00B0020 Bolt; GB5783-86; M8×30-8.8-Zn.D; STL
46C4395 00B0007 bolt; GB5783-86; M8×16-8.8-Zn.D; STL
46C4395 06B0006 Washer; GB93-87; 8; 65Mn
46C4395 00B0019 Bolt; GB5783-86; M10×30-8.8-Zn.D; STL
46C4395 37B0004 Nylon cable tie; nylon
46C4395 46C4364 Proximity switch assembly; ASSY
46C4395 00D5373 bracket; WELD
46C4395 20A9297 plug-in board; STL
46C4395 06B0002 Washer; GB93-87; 10; 65Mn
