Description

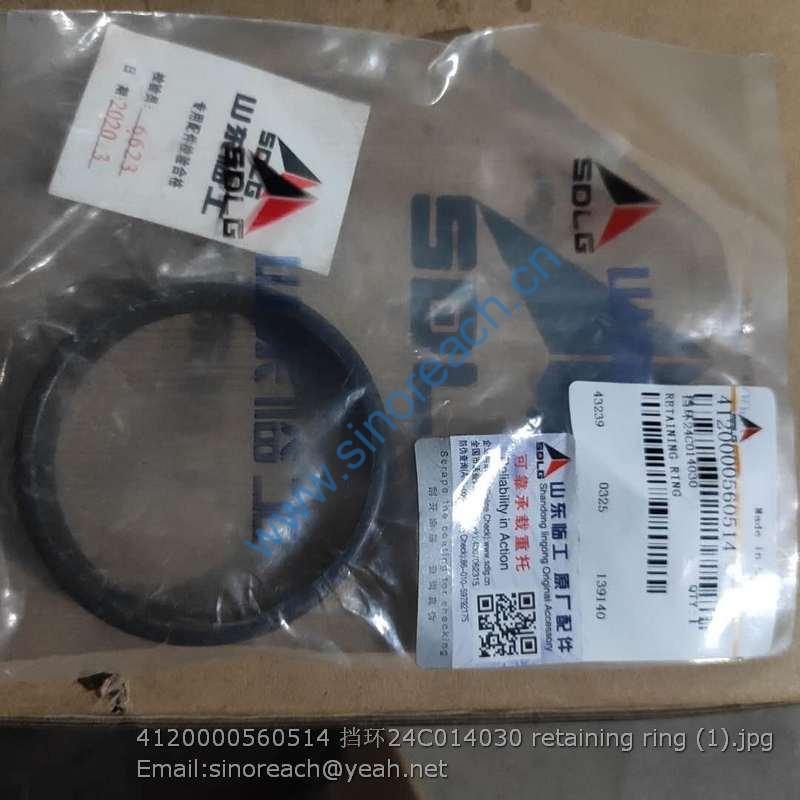

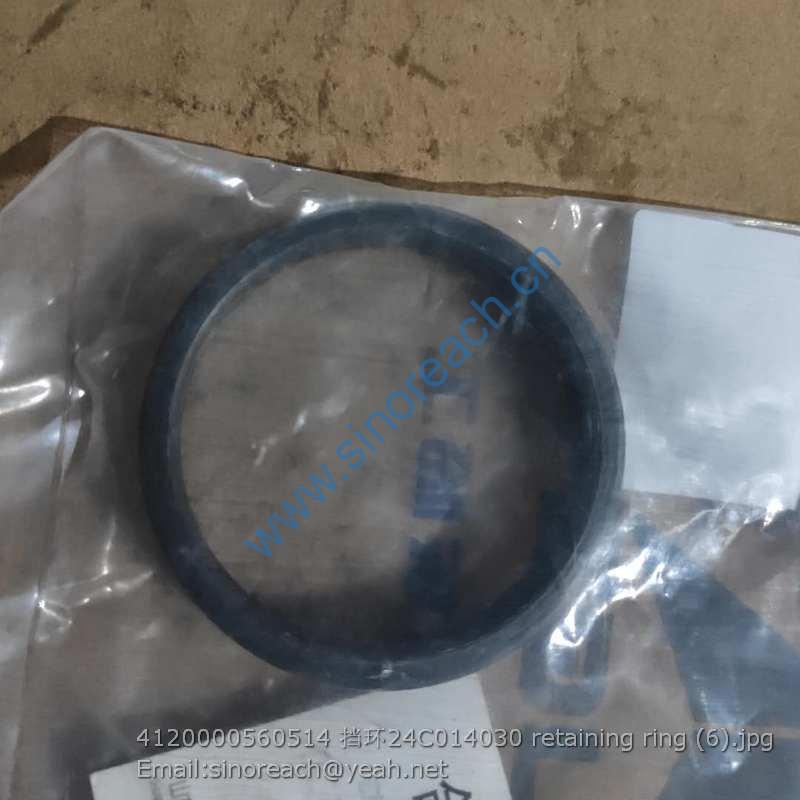

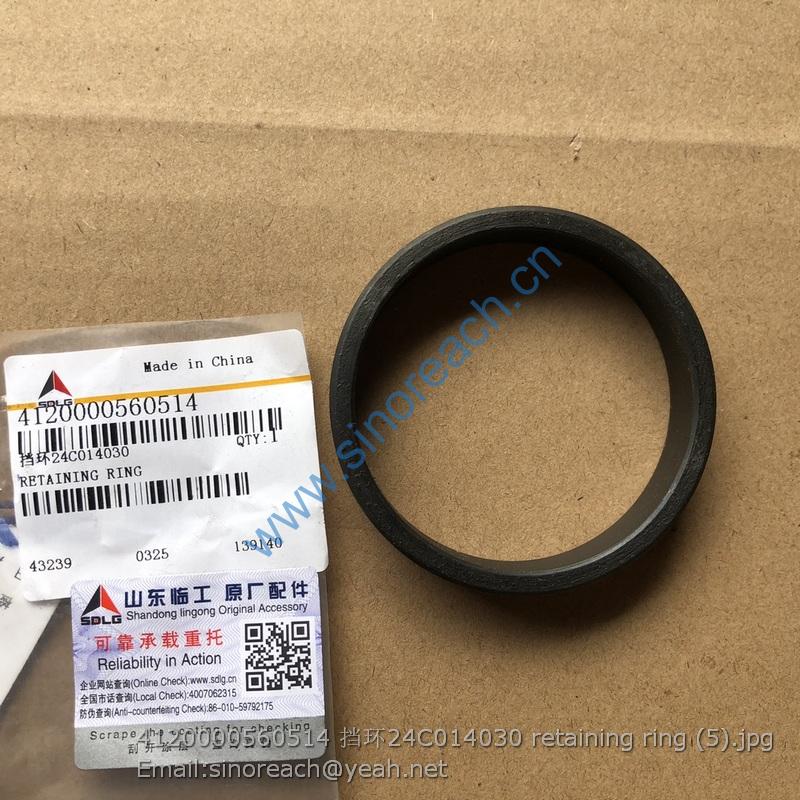

4120000560514 retaining ring 24C014030 SDLG

31 4120000171117 后盖CBGj2/1-XF-02 Cover Y 1
32 4120000171119 弹簧垫圈GB93-87-14 Spring washer Y 1
33 4120002486014 螺栓M14*133.5 CBGj1-01 Screw Y 1
34 4120000171120 密封件包 Sealing ring kit Y 1

1 4120000018 方向盘FXP-50F Steering wheel Y 1
2 4120005406 转向柱LG20-ZXZ-28 Steering column Y 1
3 29310024341 固定架 Bracket Y 1
4 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 4
5 4041000564 直接头LGB120-02620 Nipple Y 4
6 4041000783 O形圈LGB168-11724 O-ring Y 4
7 4011000479 螺栓GB16674-M12*30EpZn-8.8 Bolt Y 4
8 4041000131 直接头LGB120-01412 Nipple Y 3
9 4041000784 O形圈LGB168-10924 O-ring Y 3
10 4120003949 转向器BZZ5-320A Control valve Y 1
11 29200004031 转向器出油钢管B Hose assembly Y 1
12 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2
13 29200008561 转向器出油钢管A Pipe Y 1
14 4041000774 螺塞LGB135-01422 Plug Y 2
15 4041000767 O形圈LGB168-11124 O-ring Y 2
16 4041001047 组合接头LGB143-01406 Nipple Y 2
17 4030000289 O形圈GB3452.1-16.0*1.80G O-ring Y 2
18 4041002519 软管LGB128-003100 Hose assembly Y 1
19 4041000187 直接头LGB120-02622 Nipple Y 1
20 4041000771 O形圈LGB168-11924 O-ring Y 1
21 29200007931 直角接头 Nipple Y 1
22 4041000590 软管LGB127-010110 Hose assembly Y 1
23 4011000493 螺栓GB16674-M8*90EpZn-8.8 Bolt Y 2
24 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2
25 4120000709 优先阀VLE-150 Priority valve Y 1
26 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2
27 4041002438 软管LGB165-003095 Hose assembly Y 1
28 29200010851 过渡接头 Nipple Y 1
29 4041002437 软管LGB166-410095 Hose assembly Y 1
30 4041000133 直接头LGB120-01414 Nipple Y 1

1 29210004021 钢管 Pipe Y 1
2 29210004031 钢管 Pipe Y 1
3 29210006521 转向缸中间胶管 Hose assembly Y 2
4 4011000366 螺栓JB999-M18*1.5*40EpZn-35 Bolt Y 4
5 4030000058 垫圈JB1002-18-T2 Washer Y 8
6 4120001821 转向油缸HSGL-63*35*300-520 Steering cylinder Y 2
7 29210009671 转向缸进油胶管 Hose assembly Y 2
8 29210004061 固定座 Bracket Y 1
9 29210004071 橡胶板 Rubber plate Y 2
10 4011000051 螺栓GB5782-M10*70EpZn-8.8 Bolt Y 1
11 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 1

1 29220001251 制动器管接头 Nipple Y 4
2 4030000552 O形圈 O-ring Y 8
3 29220001261 制动器接头块 Block Y 4
4 29220021481 前桥右油管 Brake pipe Y 1
5 29220019991 至前桥油管 Hose assembly Y 1
6 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 10
7 29220000131 三通接头 Three-way nipple Y 2
8 29220021501 前桥左油管 Brake pipe Y 1
9 4041002629 软管LGB144-106065 Hose assembly Y 1
10 29220012381 三通接头 Three-way nipple Y 1
11 29220017601 直接头 Nipple Y 3
12 29220000811 垫圈 Washer Y 11
13 4030000055 螺塞JB1000-M22*1.5EpZn-35 Plug Y 2
14 4120003757 制动灯开关YK209KLA Pressure switch Y 2
15 29220007921 三通接管 Three-way nipple Y 1
16 4041001053 软管LGB145-102072 Hose assembly Y 1
17 4011000283 螺栓JB999-M10*1*18EpZn-35 Bolt Y 1
18 29220009121 垫圈 Washer Y 2
19 29220007711 转换钢管 Brake pipe Y 1
20 29220000171 垫圈 Washer Y 5
21 4120000248 梭阀SF-50G Shuttle valve Y 1
22 29010000041 螺栓 Screw Y 3
23 29220008501 直接头 Nipple Y 1
24 4041002137 软管LGB153-202270 Hose Y 1
25 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 1
26 4041002417 管夹LGB169-B20*12.5 Clamp Y 1
27 29220020892 后桥左油管 Brake pipe Y 1
28 29220020912 后桥右油管 Brake pipe Y 1
29 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 6
30 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 6
