Description

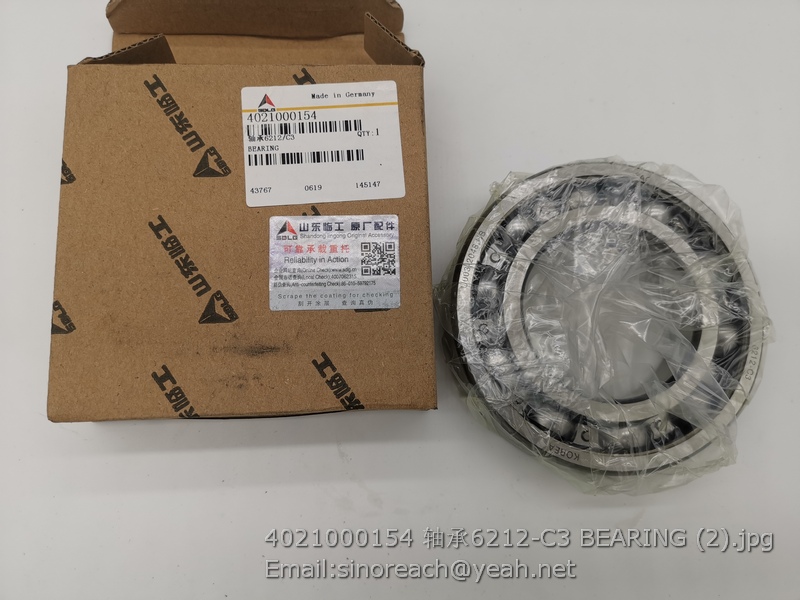

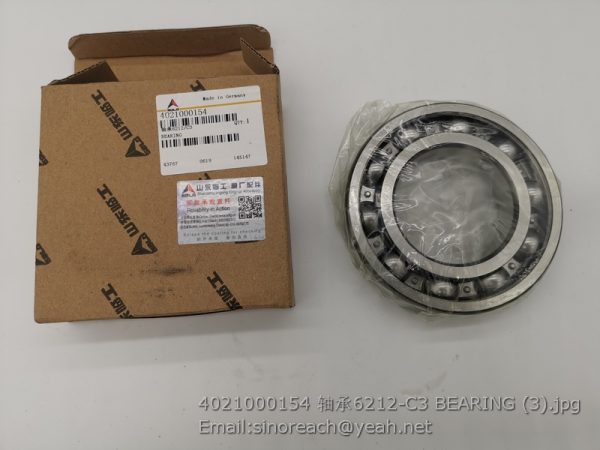

4021000154 BEARING

1 29050032101 6T齿轮R43 Gear Y 1
2 4019000025 铆钉GB827-3*10-BL2 Rivet Y 2
3 29050016181 板 Plate Y 1
4 29050016121 密封垫 Gasket Y 1
5 29050016141 透气管 Tube Y 1
6 4030000827 O形圈GB3452.1-103*3.55G-FPM O-ring Y 1
7 4015000155 挡圈GB894.1-60-65Mn Retaining ring Y 1
8 4015000288 垫圈GB1230-12EpZn-45 Washer Y 2
9 4011000795 螺栓GB5786-M12*1.25*30EpZn-8.8 Screw Y 2
10 4015000241 挡圈GB893.1-110-65Mn Retaining ring Y 1
11 4021000154 轴承6212/C3 Bearing Y 1
12 29050016151 盖 Cover Y 1
13 4011000106 螺栓GB5783-M8*25EpZn-8.8 Bolt Y 8
14 29050015471 垫圈8 Washer Y 8
15 29050016131 轴承套 Bearing bushing Y 1

1 4015000270 挡圈GB893.1-120-65Mn Retaining ring Y 1
2 29050032271 6T齿轮R33 Gear Y 1
3 29050016191 堵塞 Plug Y 1
4 4030000872 O形圈GB3452.1-32.5*3.55G-FPM O-ring Y 1
5 29050016101 密封垫 Gasket Y 1
6 4021000153 轴承NUP311ECJ Bearing Y 1
7 29050016031 锁紧板 Lock plate Y 1
8 4011000935 螺栓GB5782-M12*45-8.8 Screw Y 2
9 4015000288 垫圈GB1230-12EpZn-45 Washer Y 2
10 29050016091 盖 Cover Y 1
11 4011000195 螺栓GB5783-M8*35EpZn-8.8 Bolt Y 5
12 29050015471 垫圈8 Washer Y 5

1 29050032281 6T齿轮R51 Gear Y 1
2 29050032231 中间轴 Shaft Y 1
3 4021000151 轴承529X/522 Bearing Y 2
4 29050016061 调整垫片 Shim Y 2
5 29050016071 调整垫片 Shim Y 4
6 29050016081 调整垫片 Shim Y 6
7 29050026161 调整垫片 Shim Y 3
8 29050016051 轴承套 Bearing bushing Y 1
9 4030000814 O形圈GB3452.1-112*3.55G-FPM O-ring Y 1
10 4041000777 螺塞LGB135-02227 Plug Y 1
11 4041001265 O型圈LGB168-21924 O-ring Y 1
12 4011000106 螺栓GB5783-M8*25EpZn-8.8 Bolt Y 6
13 29050015471 垫圈8 Washer Y 61 29050015851 密封垫 Gasket Y 1
2 29050015461 垫圈6 Washer Y 4
3 4011000101 螺栓GB5783-M6*20EpZn-8.8 Bolt Y 4
4 29050015861 油标尺座 Pipe retainer Y 1
5 4030000805 O形圈GB3452.1-5.60*2.65G-FPM O-ring Y 1
6 29050015871 油标尺 Oil dipstick Y 1
7 4030000058 垫圈JB1002-18-T2 Washer Y 1
8 4041000508 螺塞LGB135-01824 Plug Y 1
9 29050032341 分动箱壳体 Drop box housing Y 1
10 29050032381 1/2档总成 Gear changing unit Y 1
11 29050032391 中间轴总成 Drive shaft Y 1
12 29050032371 3/4档总成 Gear changing unit Y 1
13 29050032361 输出轴总成 Output shaft Y 1
14 4041001264 O形圈LGB168-22331 O-ring Y 1
15 4041001057 螺塞LGB135-02732 Plug Y 1
16 29050016161 固定板 Anchor plate Y 1
17 4015000288 垫圈GB1230-12EpZn-45 Washer Y 9
18 4011000064 螺栓GB5782-M12*50EpZn-8.8 Bolt Y 9
19 4030000804 O形圈GB3452.1-28.0*2.65G-FPM O-ring Y 1
20 4041000140 直接头LGB155-02730 Nipple Y 11 4011000721 螺栓GB5782-M12*170EpZn－8.8 Screw Y 11
2 4015000288 垫圈GB1230-12EpZn-45 Washer Y 44
3 4011001251 螺栓GB5783-M12*45flZnyc-8.8-480 Screw Y 18
4 29050013211 工作泵取力器 Power take-off Y 1
5 29040013491 涡轮组总成 Turbine N 1
6 29050034091 变矩器总成 Torque converter N 1
7 4014000516 螺钉GB825-M16flZnyc-25-480 Screw Y 2
8 29050034111 离合器箱总成 Transmission N 1
9 29050025601 变速箱通用标牌 Name plate N 1
10 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
11 29050032431 分动箱总成 Transfer case Y 1
12 4011000421 螺栓GB5783-M16*65EpZn-8.8 Screw Y 8
13 4015000098 垫圈GB93-16-65Mn Spring washer Y 8
14 29050033801 连接座 Attachment bracket Y 2
15 4014000173 螺钉GB70.1-M10*110EpZn-8.8 Screw Y 8
16 29050013611 垫片 Shim Y 12
17 4041003224 直接头LGB120-13626*70 Nipple Y 1
18 4041001264 O形圈LGB168-22331 O-ring Y 2
19 4013000011 螺母GB6170-M12EpZn-8 Nut Y 2
20 4012000036 螺柱GB900-M12*35EpZn-8.8 Stud Y 1
21 4012000034 螺柱GB900-M12*55EpZn-8.8 Stud Y 1
22 29050016261 后法兰总成 Connection flange Y 1
23 4011000092 螺栓GB5783-M12*50EpZn-8.8 Bolt Y 1
24 29050016001 制动盘 Disc brake Y 1
25 29050034441 前输出法兰 Connection flange Y 1
26 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 12
27 29050013201 转向泵取力器 Power take-off Y 1
28 2022000110 密封垫III Gasket Y 1
29 2022000100 变速阀总成 Control valve Y 1
30 4011001652 螺栓GB16674.1-M8*140EpZn-10.9 Screw N 1
