Description

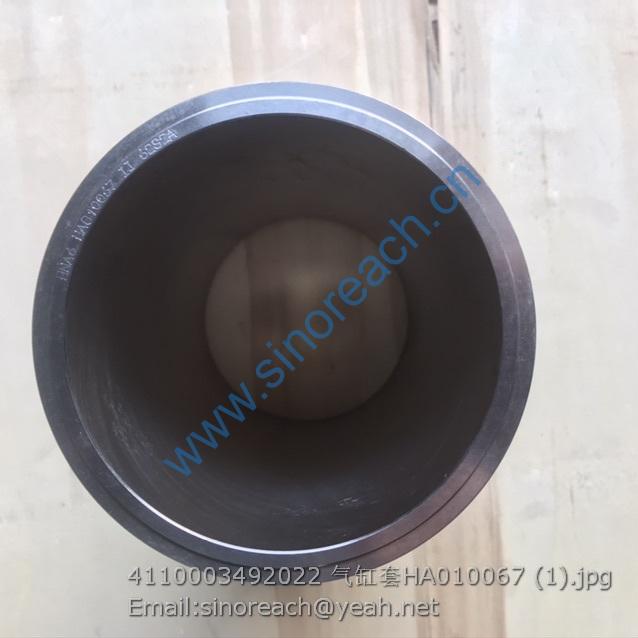

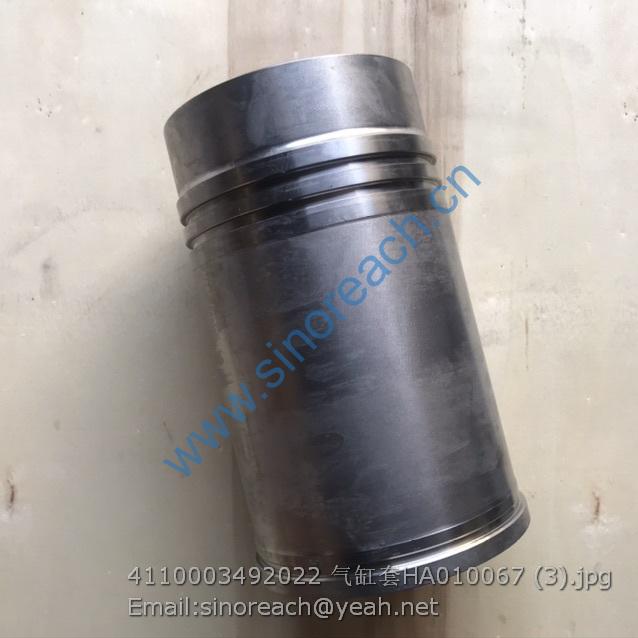

4110003492022 Cylinder liner HA010067
1 4110000011081 导轮座YB315Z5-13A STATOR SEAT YB315Z5-13A Y 1
2 4110000011082 密封环YB315Z5-33 SEAL RING YB315Z5-33 Y 1
3 4110000011083 密封环YB315Z5-12 SEAL RING YB315Z5-12 Y 1
4 4110000011084 弹性圈YB315Z5-25 SPRING WASHER YB315Z5-25 Y 1
5 4110000011085 壳体YB315Z5-08A HOUSING YB315Z5-08A Y 1
6 4110000011086 螺栓M8*16 01010-50816 BOLT M8*16 01010-50816 Y 8
7 4110000011087 垫圈801602-10825 WASHER 801602-10825 Y 4
8 4110000011088 垫板YB315Z5-06A FILLER YB315Z5-06A Y 1
9 4110000011089 胶垫YB315Z5-07 SPACER YB315Z5-07 Y 1
10 4110000011090 齿轮YB315Z5-11B GEAR YB315Z5-11B Y 1
11 4021000076 滚动轴承GB276-6017 BEARING GB276-6017 Y 1
12 4110000011091 螺栓M8*35 01010-50835 BOLT M8*35 01010-50835 Y 38
13 4110000011092 泵轮YJSW315-6C-00002 PUMP WHEEL YJSW315-6C-00002 Y 1
14 4110000011093 螺母M8 01580-10806 NUT M8 01580-10806 Y 2
15 4110000011121 调整垫YB315Z5-35 ADJUSTING SPACER YB315Z5-35 Y 1
16 4110000011094 压紧垫片YB315Z5-22A COMPRESSING SHIM YB315Z5-22A N 1
17 4110000011095 导轮YJSW315-6C-00001 GUIDE WHEEL YJSW315-6C-00001 Y 1
18 4015000208 挡圈GB894.1-85-65Mn RETAINER RING GB894.1-85-65Mn N 1
19 4110000011123 Ⅰ涡轮YJSW315-6C-10001 FIRST-STAGE TURNINE YJSW315-6C-10001 N 1
20 4110000011124 Ⅱ涡轮组YJSW315-6C-11000 SECOND-STAGE TURBINE YJSW315-6C-11000 N 1
21 4110000011096 调整垫YB315Z5-30/31/32 ADJUSTING SHIM YB315Z5-30/31/32 Y 1
22 4110000011125 挡圈52 YB315Z5.1-5 RETAINER RING 52 YB315Z5.1-5 N 1 23 4021000155 轴承6013 BEARING 6013 N 1
24 4011000663 螺栓GB21-M10*25EpZn-8.8 BOLT GB21-M10*25EpZn-8.8 N 1
25 4110000011097 垫圈10 01602-11030 WASHER 10 01602-11030 Y 2
26 4110000518008 管接头YB315Z5-14S FITTING YB315Z5-14S Y 1
27 4110000011128 垫圈30 07003-03036 WASHER 07003-03036 Y 2
28 4110000011100 阀盖YB315Z5-17A VALVE CAP YB315Z5-17A Y 1
29 4110000011101 弹簧YB315Z5-18A SPRING YB315Z5-18A Y 1
30 4110000011102 调压垫YB315Z5-16.21 ADJUSTING SHIM YB315Z5-16.21 N 3
31 4110000011103 阀杆YB315Z5-26A VALVE ROD YB315Z5-26A Y 2
32 4110000011104 螺塞YB315Z5-15L PLUG YB315Z5-15L Y 1
33 4110000011105 压板YB315Z5-19A PRESS PLATE YB315Z5-19A N 1
34 4110000011106 弹簧YB315Z5-20 SPRING YB315Z5-20 Y 1
35 4110000011108 垫圈12 01602-11236 WASHER 01602-11236 12 Y 1
36 4110000011109 螺栓M12*45 01010-51245 BOLT M12*45 01010-51245 Y 1
37 4110000011129 管接头YB315Z5-24K PIPE JOINT YB315Z5-24K Y 1
38 4019000063 铆钉GB869-8*15 RIVET GB869-8*15 N 1
39 4110000011131 涡轮毂YB315Z5.1-1 TURBINE WHEEL YB315Z5.1-1 N 1
40 4110000011132 涡轮罩YJSW315-6C-12001 TURBINE COVER YJSW315-6C-12001 N 1
41 4021000018 滚动轴承GB276-6210 BEARING GB276-6210 Y 1
42 4110000011134 销YB315Z5.1-4A PIN YB315Z5.1-4A N 8
43 4030000465 PO形圈GB3452.1-355*3.55 O-RING GB3452.1-355*3.55 Y 1
44 4110000011112 罩轮YB315Z5-02A WHEEL SHELL YB315Z5-02A Y 1
