Description

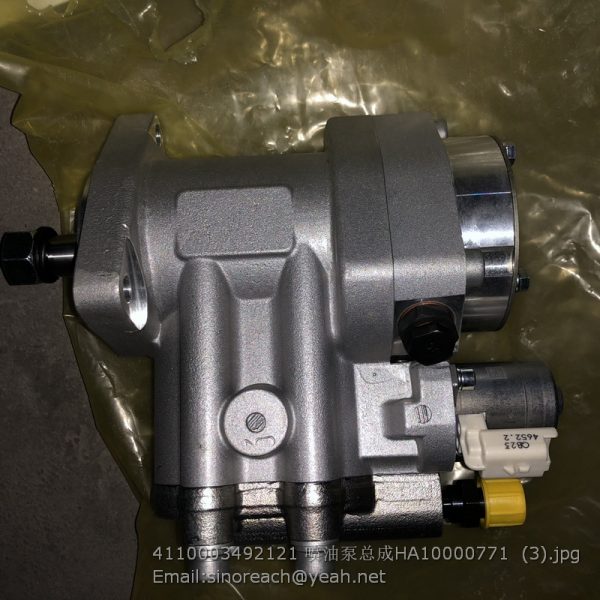

4110003492121 HA10000771 oil pump
| 4021000020 | 滚动轴承 GB276-6211 | BALL BEARING GB276-6211 |
| 4013000036 | 螺母 GB6171-M10*1EpZn-8 | NUT GB6171-M10*1EpZn-8 |
| 4015000008 | 垫圈 GB859-10-65Mn | WASHER GB859-10-65Mn |
| 3030900136 | 中间输入轴 | INTER-INPUT SHAFT |
| 4021000011 | 滚动轴承 GB276-6010 | BALL BEARIN GB276-6010 |
| 4015000015 | 挡圈 GB893.1-80-65Mn | RIONG SNAP GB893.1-80-65Mn |
| 3030900138 | 隔离套 | ISOLATED BUSHING |
| 3030900157 | 弹簧 | SPRING |
| 3030900166 | 销 | PIN |
| 3030900165 | 隔离环 | ISOLATED WASHER |
| 3030900155 | 滚柱Ф13*26 | ROLLER Ф13*26 |
| 3030900164 | 内环凸轮 | INNER RACE CAM |
| 3030900167 | 螺栓 | BOLT |
| 3030900137 | 外环齿轮 | OUT RACE GEAR |
| 4021000018 | 滚动轴承 GB276-6210 | BALL BEARING GB276-6210 |
| 3030900169 | 间隔环 | ISOLATED WASHER |
| 3030900168 | 间隔套 | ISOLATED BUSHING |
| 4015000017 | 挡圈 GB893.1-90-65Mn | RIONG SNAP GB893.1-90-65Mn |
| 3030900139 | 倒档活塞 | PISTION |
| 3030900143 | 外密封环 | EXTERNAL SEAL RING |
| 3030900163 | 内密封环 | INTERNAI SEAL RING |
| 3030900170 | 螺栓 M8*14 | BOLT M8*14 |
| 4015000036 | 垫圈 GB93-8-65Mn | WASHER GB93-8-65Mn |
| 3030900162 | 止动垫圈 | STOP WASHER |
| 3030900160 | 倒档行星轴 | REVERSE PLANET SPINDLE |
| 3030900147 | 垫片 | SPACER |
| 3030900154 | 挡圈 | RIONG SNAP |
| 4090000001 | 滚针 GB309-4*35-GCr15 | NEEDLE ROLLER GB309-4*35-GCr15 |
| 3030900148 | 行星轮 | PLANET |
| 3030900171 | 倒档行星架 | CARRIER OF REVERSE ASS’Y |
| 3030900140 | 倒档一档从动片 | REVERSE FIRST SPEED DRIVEN DISK |
| 2030900028 | 倒档一档主动片 | REVERSE FIRST SPEED DRIVE DISK |
| 3030900141 | 弹簧 | SPRING |
| 3030900176 | 销 | PIN |
| 3030900161 | 圆柱销 | ROUND PIN |
| 3030900175 | 摩擦片隔离架 | ISOLATED BRACKET |
| 3030900142 | 弹簧销轴 | SPRING PIN |
| 3030900158 | 倒档内齿圈 | REVERSE RANGE GEAR-RING |
| 3030900156 | 挡圈 | RIONG SNAP |
| 3030900151 | 一档行星架 | CARRIER OF THE FIRST RANGE PLANET GEAR |
| 3030900149 | 一档行星轴 | FIRST SPEED PLANET SPINDLE |
| 3030900150 | 止动盘 | LOCK PLATE |
| 3030900153 | 太阳轮 | GEAR-SUN |
| 3030900152 | 直接档连接盘 | CONNECTING DISH FOR THE DIRECT RANGE |
| 4015000026 | 垫圈 12 | WASHER 12 |
|
4011000125 |
螺栓
GB5786-M12*1.25*35EpZn-8.8 |
BOLT GB5783-M12*35EpZn-8.8 |
| 3030900172 | 内齿圈 | INTERNAL GEAR-RING ASSEMBLY FOR FIRST RANGE |
| 3030900144 | 一档活塞 | FIRST RANGE PISTION |
| 3030900113 | 密封环 | SEAL RING |
| 3030900145 | 一档油缸 | CYLINDER-HOUSING FOR THE FIRST RANGE |
| 3030900146 | 矩形密封圈 | SQUARE SEAL |
| 3030900159 | 固定板 | MOUNTING PLATE |
| 4021000019 | 滚动轴承 GB276-6210N | BALL BEARING GB276-6210N |
| 4015000024 | 挡圈 90 | RING SNAP 90 |
| 4021000015 | 滚动轴承 GB276-6022 | BALL BEARING GB276-6022 |
| 3030900112 | 销 | PIN |
| 3030900103 | 直接档受压盘 | BACK DISK FOR THE SECOND SPEED |
| 4013000162 | 螺母 GB6170-M8-8 | NUT GB6170-M8-8 |
| 4015000036 | 垫圈 GB93-8-65Mn | WASHER GB93-8-65Mn |
| 2030900020 | 直接档主动片 | DRIVE DISK ASS’Y FOR THE SECOND SPEED |
| 3030900104 | 直接档轴 | SHAFT FOR THE SECOND SPEED |
| 3030900106 | 直接档从动片 | DRIVEN DISK FOR THE SECOND SPEED |
| 4011000105 | 螺栓 GB5783-M8*20EpZn-8.8 | BOLT GB5783-M8*20EpZn-8.8 |
| 4021000016 | 滚动轴承 GB276-6204 | BALL BEARING GB276-6204 |
| 4015000023 | 挡圈 GB894.1-65-65Mn | RIONG SNAP GB894.1-65-65Mn |
| 3030900114 | 蝶形弹簧 | DISH SPRING |
| 3030900107 | 直接档活塞 | PISTION |
| 3030900113 | 密封环 | SEALING RING |
| 3030900115 | 销 | PIN |
| 3030900109 | 直接档油缸 | CYLINDER ASS’Y FOR THE SECOND SPEED |
| 3030900108 | 中间输出齿轮 | OUTPUT GEAR OF THE INTER-SHAFT |
| 4021000024 | 滚动轴承 GB276-6312 | BALL BEARING GB276-6312 |
| 3030900111 | 旋转油封 | SEAL |
| 4090000010 | 低碳钢丝 GB343-1.2*1200-SZ | MILD STEEL WIRE GB343-1.2*1200-SZ |
| 3030900105 | 螺栓 | BOLT |
| 4015000026 | 垫圈 GB93-12-65Mn | WASHER GB93-12-65Mn |
| 3030900110 | 旋转油封 | SEAL |
