Description

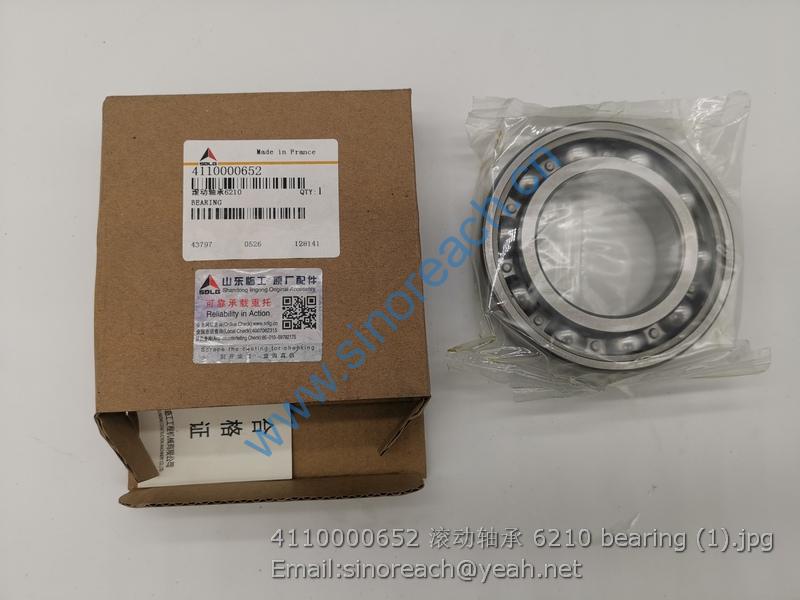

4110000652 bearing

1 29050013541 轴 Shaft Y 1
2 29050015471 垫圈8 Washer Y 5
3 4011000725 螺栓GB5783-M8*30-8.8 Screw Y 5
4 29050013561 隔套 Spacer sleeve Y 1
5 4021000157 轴承NJ208ECP Bearing Y 2
6 29050013552 齿轮R71 Gear Y 1
7 29050013571 垫片 Shim Y 1

1 4015000306 挡圈GB894.1-75-65Mn Retaining ring Y 1
2 29050015551 内圈 Sleeve Y 1
3 4110000707 轴承K85*92*20 Bearing Y 1
4 29050015571 导轮座 Converter base Y 1
5 29050015561 涡轮轴 Turbine shaft Y 1
6 4110000652 滚动轴承6210 Bearing Y 1
7 4015000046 挡圈GB894.1-50-65Mn Retaining ring Y 1

1 4041000775 O形圈LGB168-21124 O-ring Y 5
2 29050014411 螺塞 Plug Y 5
3 4011000106 螺栓GB5783-M8*25EpZn-8.8 Bolt Y 8
4 29050015471 垫圈8 Washer Y 16
5 29050013191 端盖 End plate Y 1
6 29050013181 密封垫 Gasket Y 1
7 4041000777 螺塞LGB135-02227 Plug Y 1
8 4041001265 O型圈LGB168-21924 O-ring Y 1
9 4016000243 销GB119.2-10*18-B Pin Y 4
10 4016000224 销GB119.2-20h6*45-B Pin Y 1
11 29050013651 安全阀 Safety valve Y 1
12 29050013371 销轴 Pin Y 1
13 4011000107 螺栓GB5783-M8*30EpZn-8.8 Bolt Y 8
14 29050013091 盖板总成 Cover plate Y 1
15 29050013081 密封垫 Gasket Y 1
16 29050012972 变矩器壳体 Converter housing Y 1
17 29050013781 垫片 Gasket Y 1
18 29050013601 定位销 Locating pin Y 1
19 29050013611 垫片 Shim Y 5
20 4011000777 螺栓GB5783-M10*30-8.8 Screw Y 5
21 29050015581 导轮座总成 Seat N 1
22 29050014522 取力器过渡齿轮总成 Gear N 2
23 29050014501 变矩器润滑系统 Lubricating system N 1

1 4041001264 O形圈LGB168-22331 O-ring Y 1
2 4041001057 螺塞LGB135-02732 Plug Y 1
3 4030000058 垫圈JB1002-18-T2 Washer Y 1
4 4041000508 螺塞LGB135-01824 Plug Y 1
5 29050015651 输出轴总成 Shaft N 1
6 29050015911 分动箱壳体 Drop box housing Y 1
7 29050015841 1/2档总成 Gear changing unit Y 1
8 29050016271 3/4档总成 Gear changing unit Y 1
9 29050016281 中间轴总成 Drive shaft N 1
10 4030000804 O形圈GB3452.1-28.0*2.65G-FPM O-ring Y 1
11 4041000140 直接头LGB155-02730 Nipple Y 1
12 29050016161 固定板 Anchor plate Y 1
13 4015000288 垫圈GB1230-12EpZn-45 Washer Y 9
14 4011000064 螺栓GB5782-M12*50EpZn-8.8 Bolt Y 9
15 29050015851 密封垫 Gasket Y 1
16 29050015871 油标尺 Oil dipstick Y 1
17 4030000805 O形圈GB3452.1-5.60*2.65G-FPM O-ring Y 1
18 29050015861 油标尺座 Pipe retainer Y 1
19 4011000101 螺栓GB5783-M6*20EpZn-8.8 Bolt Y 4
20 29050015461 垫圈6 Washer Y 4

1 4030000767 油封 65*80*8 Sealing ring Y 1
2 4021000152 轴承JM511946/910/Q Bearing Y 2
3 29050015991 齿轮 R61 Gear Y 1
4 4030000812 O形圈GB3452.1-180*5.30G-FPM O-ring Y 1
5 29050015951 调整垫片 Shim Y 6
6 29050015931 调整垫片 Shim Y 2
7 29050015941 调整垫片 Shim Y 4
8 29050015962 轴承套 Bearing bushing Y 1
9 29050013611 垫片 Shim Y 7
10 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 7
11 4030000596 油封75*100*10 Sealing ring Y 1
12 4030000813 O形圈GB3452.1-45.0*5.30G-FPM O-ring Y 1
13 29050016031 锁紧板 Lock plate Y 2
14 4011000090 螺栓GB5783-M12*35EpZn-8.8 Bolt Y 4
15 4015000288 垫圈GB1230-12EpZn-45 Washer Y 4
16 29050016021 轴 Shaft Y 1
17 29050026151 调整垫片 Shim Y 1

1 29050016111 齿轮 R43 Gear Y 1
2 4015000241 挡圈GB893.1-110-65Mn Retaining ring Y 1
3 4021000154 轴承6212/C3 Bearing Y 1
4 4015000155 挡圈GB894.1-60-65Mn Retaining ring Y 1
5 29050016121 密封垫 Gasket Y 1
6 4019000025 铆钉GB827-3*10-BL2 Rivet Y 2
7 29050016181 板 Plate Y 1
8 29050016131 轴承套 Bearing bushing Y 1
9 4015000288 垫圈GB1230-12EpZn-45 Washer Y 2
10 4011000795 螺栓GB5786-M12*1.25*30EpZn-8.8 Screw Y 2
11 29050016141 透气管 Tube Y 1
12 4011000106 螺栓GB5783-M8*25EpZn-8.8 Bolt Y 8
13 4030000827 O形圈GB3452.1-103*3.55G-FPM O-ring Y 1
14 29050016151 盖 Cover Y 1
15 29050015471 垫圈8 Washer Y 8
