Description

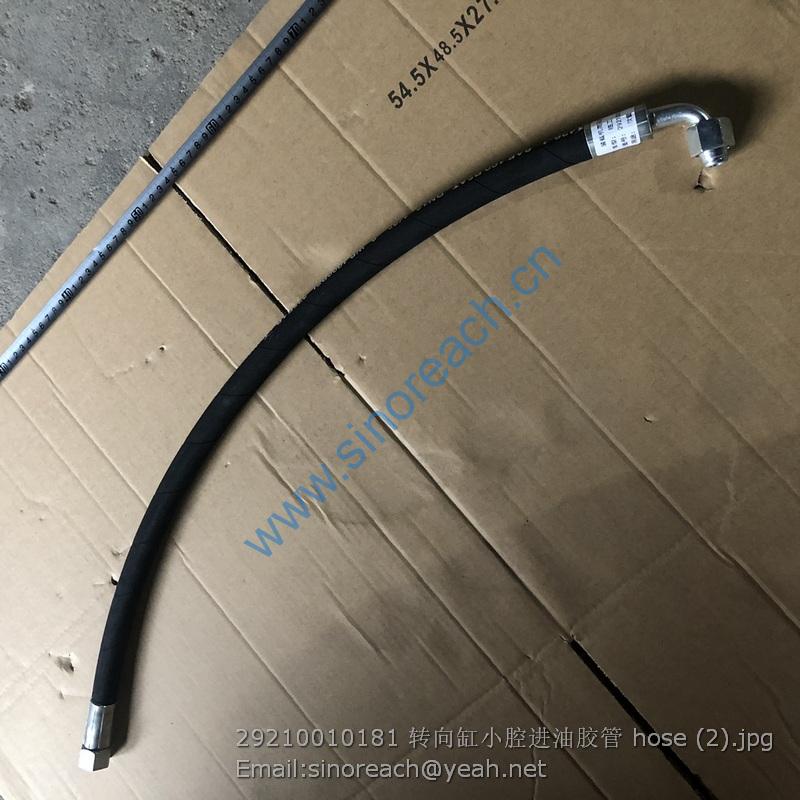

29210010181 hose SDLG

1 29190011601 法兰接头 Joint Y 1
2 4041000027 分体法兰LGB117-312551 Flange half Y 1
3 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 4
4 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 1
5 29190009431 开关阀总成 Valve Y 1
6 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 2
7 4011000314 螺栓GB16674-M10*80EpZn-8.8 Bolt Y 4
8 4120003981 直角接头1CH9-14OGZ Nipple Y 1
9 4041001937 软管LGB128-403047 Hose assembly Y 1
10 4041000133 直接头LGB120-01414 Nipple Y 1
11 4041000767 O形圈LGB168-11124 O-ring Y 4
12 4041001047 组合接头LGB143-01406 Nipple Y 1
13 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 1
14 29190011371 三通接头 3-way nipple Y 1
15 29190012401 M36-M30加高接头 Nipple Y 1
16 4041000685 O形圈LGB168-12631 O-ring Y 1
17 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4
18 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4
19 4012000003 螺柱GB898-M12*35EpZn-8.8 Stud Y 4
20 4120006676 双联泵80/63 Gear pump Y 1
21 4030000633 O形圈GB3452.1-128*3.55G O-ring Y 1
22 29190012441 流量信号阀总成 Flow valve Y 1
23 4011000282 螺栓GB16674-M10*75EpZn-8.8 Screw Y 4
24 4041000604 直接头LGB120-01614 Nipple Y 1
25 4120001100 三通接头EL10LOMDA3C Three-way nipple Y 1
26 4041000150 直接头LGB120-01814 Nipple Y 2
27 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 4
28 4041001063 组合接头LGB143-01810 Nipple Y 4
29 4017000013 喉箍JB8870-d90 Clamp Y 4
30 29190013991 转向泵吸油胶管 Hose N 1

31 29190013901 转向泵吸油钢管 Pipe Y 1
32 4030000163 O形圈GB3452.1-58.0*3.55G O-ring Y 1
33 4011000478 螺栓GB16674-M12*55EpZn-8.8 Bolt Y 4
34 29190009911 转向出油接头 Nipple Y 2
35 4041000765 O形圈LGB168-12931 O-ring Y 2
36 4041000862 软管LGB127-010055 Hose Y 1
37 4041001006 组合接头LGB143-02616 Nipple Y 3
38 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 3
39 4041000187 直接头LGB120-02622 Nipple Y 1
40 4041000771 O形圈LGB168-11924 O-ring Y 1
41 4041001950 软管LGB129-010076 Hose assembly Y 1
42 4120005164 顺序阀PS50-4302H-6T-V-35/M180 Valve Y 1
43 4011000281 螺栓GB16674-M6*40EpZn-8.8 Bolt Y 2
44 4190000147 接头GE12L9/16UNFOMDA3C Nipple Y 4
45 4041001495 软管LGB165-005110 Hose assembly Y 1
46 4041000766 直接头LGB120-01818 Nipple Y 1
47 4041000768 O形圈LGB168-11524 O-ring Y 1
48 29190014271 胶管 Hose assembly Y 1
49 4041001907 软管LGB128-005075 Hose Y 1
50 29190012241 胶管 Hose assembly Y 1
51 29190012411 优先阀进油胶管 Hose Y 1

1 4041000187 直接头LGB120-02622 Nipple Y 1
2 4041000771 O形圈LGB168-11924 O-ring Y 1
3 4041000133 直接头LGB120-01414 Nipple Y 1
4 4041000767 O形圈LGB168-11124 O-ring Y 1
5 4041001047 组合接头LGB143-01406 Nipple Y 3
6 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 3
7 4190001833 扎丝RTGB-300ST Cable tie Y 6
8 29200010591 转向柱总成 Steering column N 1
9 29200011181 转向器Xcel80-1000总成 Steering unit assembly N 1
10 4041002509 软管LGB127-410145 Hose assembly Y 1
11 4041002510 软管LGB124-410170 Hose assembly Y 1
12 4011001302 螺栓GB16674.1-M10*16flZnyc-8.8-480 Screw Y 1
13 4041002418 管夹LGB169-B35*12.5 Clamp Y 1
14 29200010191 板 Plate Y 1
15 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2
16 4011001335 螺栓GB5782-M12*130flZnyc-8.8-480 Screw Y 2
17 29200010471 平垫圈-12 Washer Y 4
18 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 4
19 29200011101 优先阀VLH-240S-16总成 Priority valve assembly N 1
20 29200009771 组合接头 Elbow nipple Y 1
21 4041002473 软管LGB127-403160 Hose assembly Y 1
22 4041001288 软管LGB124-003100 Hose assembly Y 1
