Description

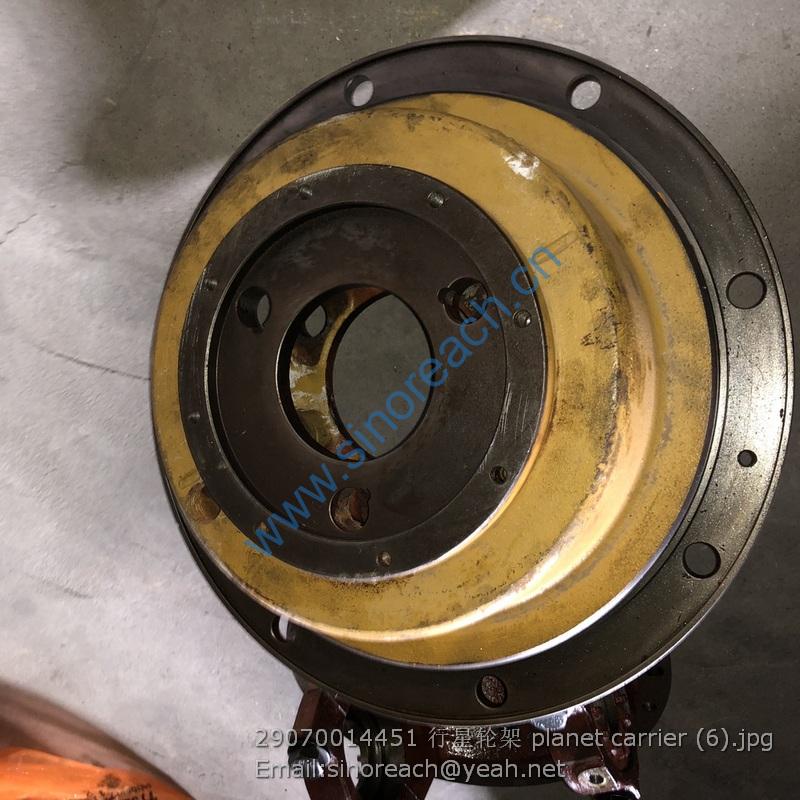

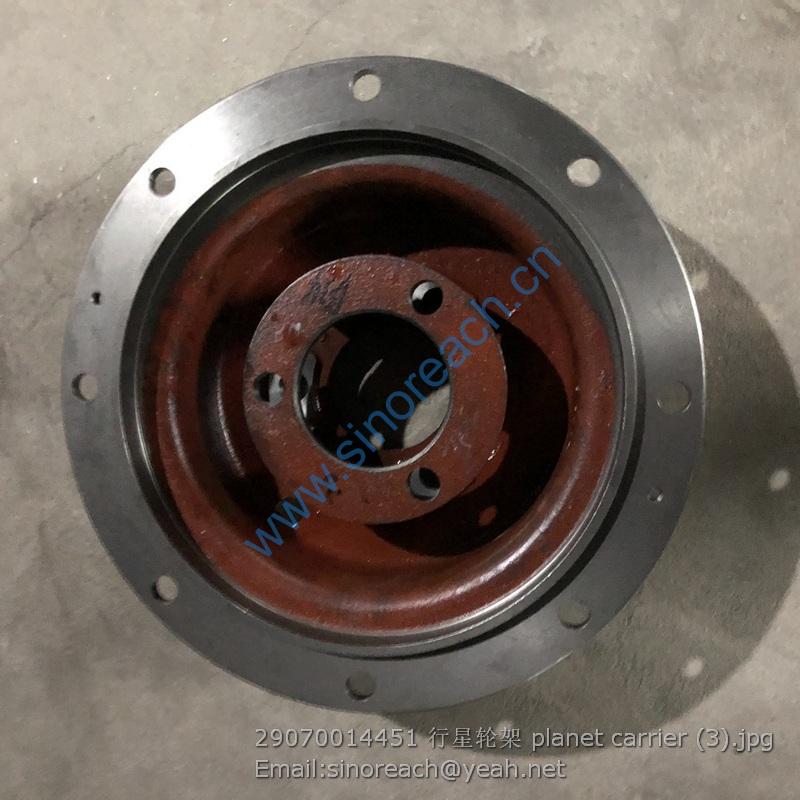

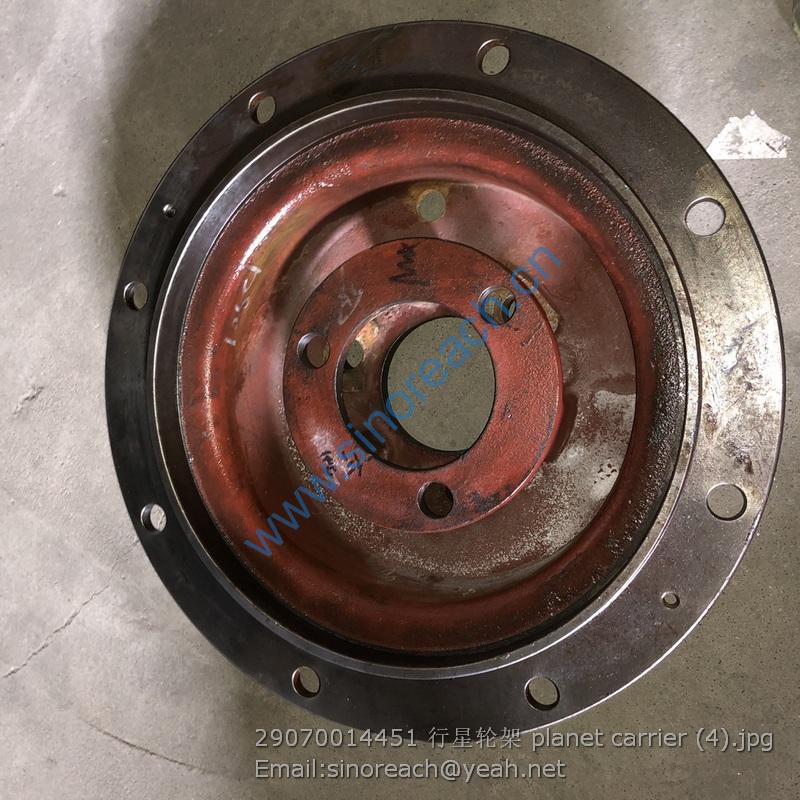

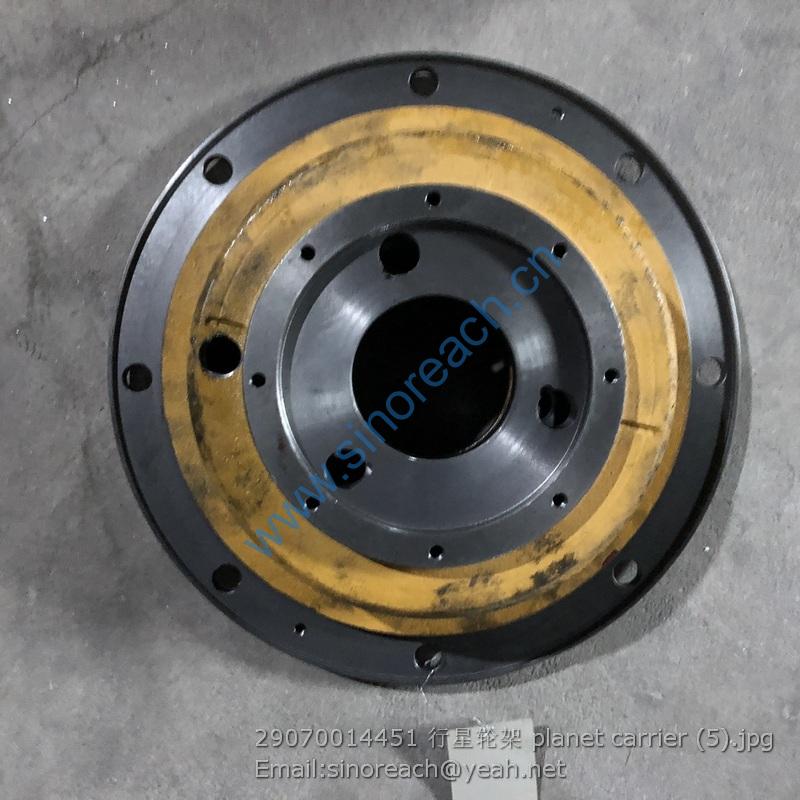

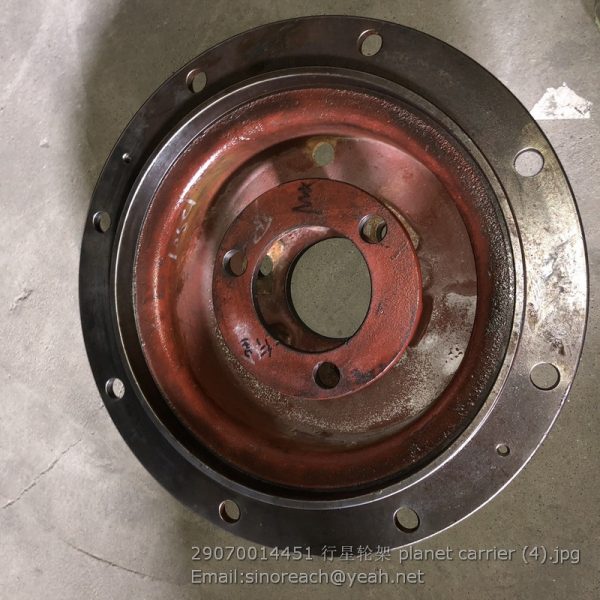

29070014451 planet carrier FOR SDLG LOADER LG918 L918
1 29070014451 行星轮架 Planet carrier Y 1
2 29070014461 内齿圈 Gear ring Y 1
3 29070012481 磁性螺塞 Plug Y 1
4 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 8
5 4015000025 垫圈GB93-10-65Mn Spring washer Y 8
6 29070014471 太阳轮 Sun gear Y 1
7 29070014481 端盖 End plate Y 1
8 4090000006 钢球GB308-17.462-GCr15 Ball Y 1
9 29070009161 定位块 Block Y 1
10 4015000325 挡圈GB894.1-34-65Mn Retaining ring Y 1
11 29070014491 行星齿轮 Planet gear Y 3
12 4090000007 钢球GB308-8-GCr15 Ball Y 3
13 29070014501 行星齿轮轴 Planet gear shaft Y 3
14 29070014511 挡环 Retaining ring Y 6
15 4090000002 滚针GB309-3*29.8-GCr15 Needle roller Y 87
16 29070014521 垫片 Shim Y 6
17 29070010441 轮辋螺栓 Stud Y 8
18 3050900045 O形圈 O-ring Y 1
19 29070010461 轮毂 Front wheel hub Y 1
20 4013000136 螺母GB6171-M18*1.5EpZn-8 Nut Y 8
21 4015000029 垫圈GB93-18-65Mn Spring washer Y 8
22 29070014531 制动盘 Disc brake Y 1
23 4011000568 螺栓GB5786-M12*1.25*40EpZn-10.9 Bolt Y 16
24 29070010131 垫圈 Washer Y 16
25 4030000559 密封圈GB9877.1-FB110*140*12D Sealing ring Y 1
26 29070014541 防尘罩 Dust cover Y 1
27 29070010491 轴承隔套 Spacer sleeve Y 1
28 4021000135 滚动轴承GB297-32017 Roller bearing Y 1
29 4021000036 滚动轴承GB297-32216 Roller bearing Y 1
30 4014000118 螺钉GB70-M8*1*20-8.8 Screw Y 2
31 29070010511 圆螺母 Round nut Y 1
32 4030000266 O形圈GB3452.1-185*3.55G O-ring Y 1
1 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 12
2 4015000025 垫圈GB93-10-65Mn Spring washer Y 8
3 4120001827009 封油分泵盖JF.A.ZL15.08 Pump cover Y 1
4 4120001827006 进油分泵盖JF.A.ZL15.06 Pump cover Y 1
5 4120001827010 防漏垫圈 Washer Y 2
6 4030000747 O形圈JB7757.2-50*3.1 O-ring Y 2
7 4120001740 放气嘴 Nipple Y 1
8 4120001827007 孔塞JF.A.ZL15.09 Plug Y 1
9 4120001827011 放气嘴座JF.A.ZL15.10 Seat Y 2
10 4120001827003 销轴JF.A.ZL15.02 Pin Y 4
11 4013000007 螺母GB6170-M10EpZn-8 Nut Y 4
12 4120001827001 摩擦片总成JF.A.ZL15.03 Friction disc Y 2
13 4120001827004 防尘罩JF.A.ZL15.04 Dust cover Y 4
14 4120001827005 矩型圈JF.A.ZL15.05 Sealing ring Y 4
15 4120001827008 活塞JF.A.ZL15.07 Cylinder piston Y 4
16 4120001827002 夹钳体JF.A.ZL15.01 Binder N 1
4120001827101 夹钳体JS-ZL18-001 Binder Y 1
2 4120001827102 销轴JS-ZL18-002 Pin Y 4
3 4120001827103 制动片JS-ZL18-003 Friction disc N 2
4 4120001827104 防尘罩JS-ZL18-004 Dust cover N 4
5 4120001827105 矩形密封圈JS-ZL18-005 Sealing ring N 4
6 4030000122 O形圈GB3452.1-50.0*3.10G O-ring N 2
7 4011001139 螺栓GB5783-M10*35-8.8 Screw Y 12
8 4015000025 垫圈GB93-10-65Mn Spring washer Y 8
9 4120001827106 进油分泵盖JS-ZL18-006 Cover Y 1
10 4120001827107 锡纸JS-ZL18-007 Corrosion proof paper Y 1
11 4120001827108 活塞JS-ZL18-008 Piston N 4
12 4120001827109 封油分泵盖JS-ZL18-009 Cover Y 1
13 4015000327 垫圈JB982-12 Washer Y 2
14 4120001827110 放气座JS-ZL18-010 Seat Y 2
15 4120001827111 放气嘴JS-ZL50-002 Nipple Y 1
16 4120001739001 橡皮帽JS-ZL50-001 Cover Y 1
17 4013000351 螺母GB41-M10-5 Nut Y 4
18 4120001827112 铭牌JS-ZL18-011 Name plate N 1
19 4120001827113 锥销JS-ZL18-012 Pin Y 4
20 4120001827114 内六角螺塞JS-ZL18-013 Plug Y 1
1 29080006521 前传动轴 Propeller shaft Y 1
2 4011000568 螺栓GB5786-M12*1.25*40EpZn-10.9 Bolt Y 2
3 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2
4 4013000072 螺母GB889.2-M12*1.25EpZn-10 Lock nut Y 18
5 29050006531 主传动轴 Drive shaft Y 1
6 29080001031 螺栓 Screw Y 4
7 29080008031 止动垫圈 Washer Y 2
8 29080006531 后传动轴 Propeller shaft Y 1
9 29050006541 螺栓 Screw Y 16
10 2908000653001 突缘叉130-2201023B Link yoke Y 5
11 2908000652002 万向节十字轴总成6700-33093 Spider Y 5
12 2908000653002 卡簧2201061N Lock ring Y 20
13 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 2
14 2908000652001 传动轴中间支撑 Intermediate housing Y 1
