Description
13b0251 Oil Seal for Front and Rear Axle Liugong Clg835 Wheel Loader Spare Parts
1 62A0058 001 半轴 HALF SHAFT 2
2 74A1193 000 桥铭牌 NAMEPLATE 1
3 09B0002 000 铆钉 RIVET 4
4 03B0212 000 螺塞 PLUG 4
5 06B0055 000 垫圈 WASHER 4
6 41C0086 007 主传动总成 BEVEL GEAR AS 1 Z
7 60A0011 000 定位销 DOWEL PIN 1
9 00B0025 000 螺栓 BOLT 12
10 06B0013 000 垫圈 WASHER 12
11 03B0406 002 通气塞 BREATHER PLUG 1
12 45C0004 001 夹钳总成 CLAMP AS 2 Z
13 24D0021 000 桥壳体轮边支承 SPINDLE 1

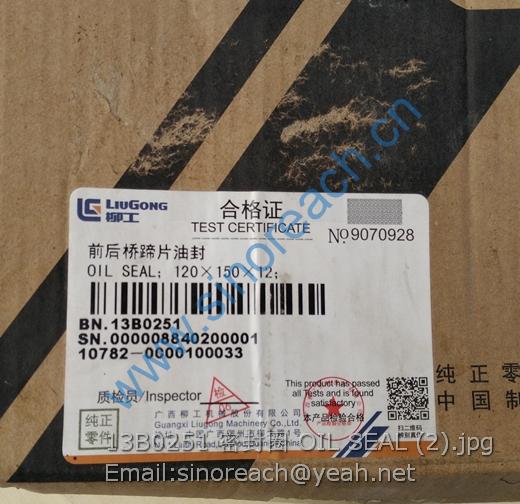

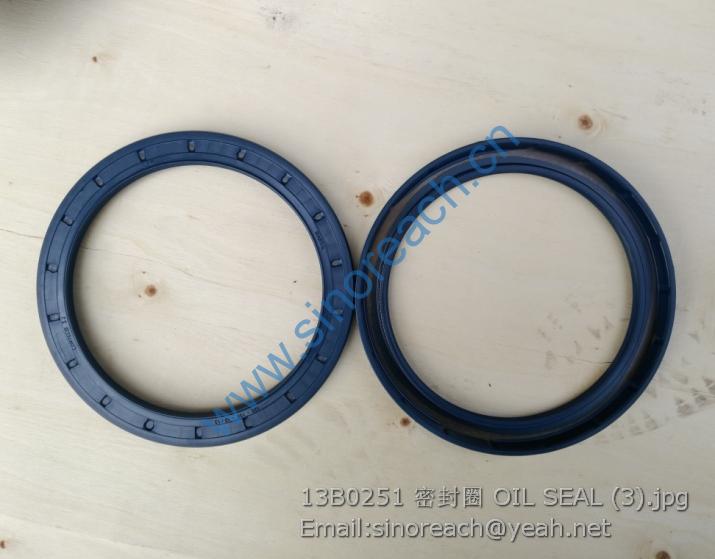

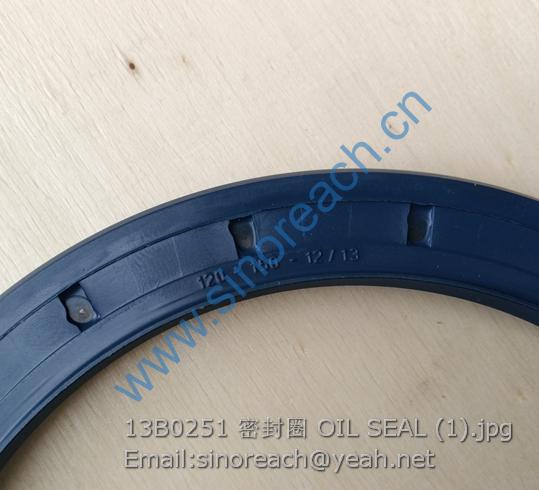

14 13B0251 000 油封 OIL SEAL 2
15 07B0066 000 挡圈 SNAP RING 2
16 23B0046 000
圆锥滚子轴承
32020
TAP.ROLLER BRG 2
17 71A0090 000 轮毂 HUB 2
18 12B0365 000 O 形圈 O-RING 2
19 01B0362 000 轮辋螺栓 BOLT 20
20 03B0201 000 轮辋螺母 NUT 20
21 03B0150 000 螺母 NUT 20
22 06B0019 000 垫圈 WASHER 20
23 70A0074 001 行星轮架
PLANETARY
CARRIER
2
24 41A0076 001 内齿轮 RING GEAR 2
25 41A0077 000 太阳轮 SUN GEAR 2
26 53A0244 001 盖 COVER 2
27 00B0019 000 螺栓 BOLT 12
28 06B0002 000 垫圈 WASHER 12
29 07B0049 000 挡圈 SNAP RING 2
30 61A0019 000 轴 SHAFT 2
31 53A0250 000 圆螺母 ROUND NUT 2
32 41A0078 000 行星齿轮
PLANETARY
GEAR
6
33 20B0042 000 滚针
ROLLING
NEEDLE
168
34 20B0037 000 钢球 STEEL BALL 6
36 20A2273 001 垫片 SHIM 12
37 60A0288 002 行星齿轮轴
PLANETARY
GEAR SHAFT
6
38 04B0049 000 螺钉 SCREW 4
39 06B0006 000 垫圈 WASHER 4
40 23B0045 000
圆锥滚子轴承
32219
TAP.ROLLER BRG 2
41 52A0038 000 制动盘 BRAKE DISC 2
42 27A0052 000 防尘罩 DUST COVER 2
43 00B0375 螺栓 BOLT 40
44 01B0211 000 前桥安装螺栓 BOLT 8
45 03B0195 001 锁紧螺母 LOCKNUT 8
46 41B0014 001 重负荷车轮齿轮油 GEAR OIL 6
47 06B0214 000 淬硬垫圈 HARD WASHER 40
1 05C0007 002 油管总成 OIL PIPE AS 1
2 00A0040 000 接头 CONNECTOR 2
3 56A0045 000 垫圈 WASHER 4
4 00A0041 000 放气嘴座
DEFLATING
VALVE SEAT
2
5 00A0044 000 放气嘴
DEFLATING
VALVE
2
6 71A0018 000 夹钳 CLAMP 1
7 12B0481 000 O 形圈 O-RING 4
8 35C0025 000 摩擦衬块总成
FRICTION LINING
AS
2
9 50A0009 000 活塞 PISTON 4
10 13B0108 000 矩形密封圈 SEAL 4
11 13B0008 000 防尘圈 DUST RING 4
12 00B0019 000 螺栓 BOLT 16
13 06B0002 000 垫圈 WASHER 16
14 00A1965 001 管接头 CONNECTOR 1
15 12B0245 000 O 形圈 O-RING 2
16 00A0356 000 管接头螺栓 BOLT 1
17 53A0042 000 下油缸盖 CYLINDER HEAD 1
18 01B0043 000 螺栓 BOLT 7
19 06B0014 000 垫圈 WASHER 7
20 04B0027 002 止动螺钉 LOCK SCREW 4
21 03B0053 000 螺母 NUT 4
22 61A0045 001 销轴 PIN 4
23 53A0043 000 上油缸盖 CYLINDER HEAD 3
