Description

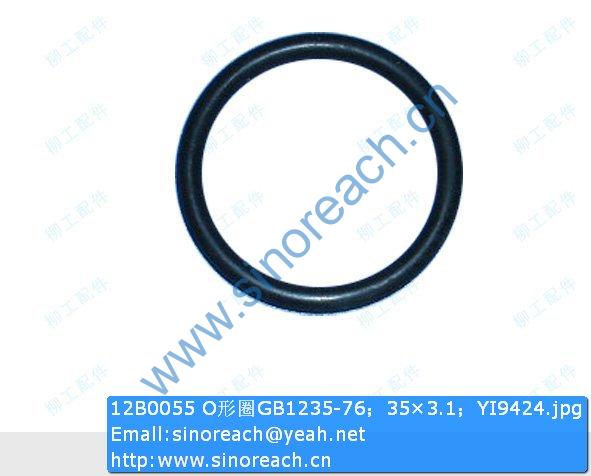

12B0055 O-ring GB1235-76; 35×3.1; YI9424 for LIUGONG part

05E0229X1 29A0476 Support plate; Q235
05E0229X1 52C0168 Thermostat; ASSY
05E0229X1 06B0006 Washer; GB93-87; 8; 65Mn
05E0229X1 00A4334 connector; CHSTL 50/35
05E0229X1 06J0001 Washer; 45; AGGL
05E0229X1 07C2771 Hose assembly; ASSY
05E0229X1 12B0287 O-ring; GB3452.1-92; 36.5×3.55; YI9424
15E0844X1 hydraulic system; ASSY
15E0844X1 00C3831 Unloading valve pipeline; ASSY
00C3831 12C3438 Unloading valve; ASSY
00C3831 72A0628 pressure plate; 45
00C3831 01B0033 Bolt; GB5782-86; M10×80-8.8-Zn.D; STL
00C3831 12B0294 O-ring; GB3452.1-92; 32.5×3.55; YI9424
00C3831 07C5664 Hose assembly; ASSY
00C3831 06B0002 Washer; GB93-87; 10; 65Mn
00C3831 07C5663 Hose assembly; ASSY
00C3831 00B0019 Bolt; GB5783-86; M10×30-8.8-Zn.D; STL
00C3831 07C5662 Hose assembly; ASSY
00C3831 12B0292 O-ring; GB3452.1-92; 21.2×1.8; YI9424
00C3831 15D1144 pipe joint; WELD
15E0844X1 10C0062X1 Boom cylinder assembly
10C0062X1 35C0004 Seal ring 110×130×8; 110×130×8; glued parts
10C0062X1 10C0062X0L boom cylinder; ASSY
10C0062X0L 14D0031 Piston rod; WELD
10C0062X0L 13D0102X1 Cylinder block assembly
10C0062X0L 13B0120 Dust ring; assembly
10C0062X0L 13B0119 Sealing ring; polyurethane
10C0062X0L 13B0118 sealing ring
10C0062X0L 12B0306 O-ring; GB3452.1-92; 190×5.3; YI9424
10C0062X0L 12B0117 O-ring; GB3452.1-92; 73×3.55; YI9424
10C0062X0L 06B0052 Washer; GB93-87; 24; 65Mn
10C0062X0L 01B0237 Bolt GB5785-86; M24×2×120-10.9-Zn.D
10C0062X0L 80A0128 Guide belt; 15×2.5; synthetic resin
10C0062X0L 76A0101 Circlip
10C0062X0L 76A0031 Guide ring; 100*105*15; synthetic resin
10C0062X0L 53A0216 Cylinder head; ZG270-500
10C0062X0L 50A0055 Piston; 45
10C0062X0L 34C0512 Nut
10C0062X0L 34C0121 Seal ring; 200; assembly
10C0062X0L 01B0057 Bolt GB5785-86; M24×2×90-10.9-Zn.D
10C0062X1 56A0050 Cushion cover; Q235
10C0062X1 10C0062X0R boom cylinder; ASSY
10C0062X0R 14D0031 Piston rod; WELD
10C0062X0R 13D0102X1 Cylinder block assembly
10C0062X0R 13B0120 Dust ring; assembly
10C0062X0R 13B0119 sealing ring; polyurethane
10C0062X0R 13B0118 sealing ring
10C0062X0R 12B0306 O-ring; GB3452.1-92; 190×5.3; YI9424
10C0062X0R 12B0117 O-ring; GB3452.1-92; 73×3.55; YI9424
10C0062X0R 06B0052 Washer; GB93-87; 24; 65Mn
10C0062X0R 01B0237 Bolt GB5785-86; M24×2×120-10.9-Zn.D
10C0062X0R 80A0128 Guide belt; 15×2.5; synthetic resin
10C0062X0R 76A0101 Circlip
10C0062X0R 76A0031 Guide ring; 100*105*15; synthetic resin
10C0062X0R 53A0216 Cylinder head; ZG270-500
10C0062X0R 50A0055 Piston; 45
10C0062X0R 34C0512 Nut
10C0062X0R 34C0121 Seal ring; 200; assembly
10C0062X0R 01B0057 Bolt GB5785-86; M24×2×90-10.9-Zn.D
10C0062X1 11D0112X0 Pin shaft assembly; welding parts
11D0112X0 10B0014 Oil cup; GB1152-89; M10×1; ASSY
11D0112X0 11D0112 Pin shaft assembly; welding parts
10C0062X1 06B0052 Washer; GB93-87; 24; 65Mn
10C0062X1 00B0016 bolt; GB5783-86; M18×40-8.8-Zn.D; STL
15E0844X1 44C1096 Steering gear mounting assembly; ASSY
44C1096 44C0173 Steering gear BZZ-125; assembly parts
44C1096 00A0381 connector; 35
44C1096 12B0285 O-ring; GB3452.1-92; 10.6×1.8; YI9424
44C1096 12B1016 O-ring; ISO 6149-2; 17.3×2.2; YI9424
44C1096 00B0005 bolt; GB5783-86; M10×20-8.8-Zn.D; STL
44C1096 06B0002 Washer; GB93-87; 10; 65Mn
15E0844X1 00C1544 Boom cylinder pipeline; ASSY
00C1544 09D1051X0 Steel pipe assembly
09D1051X0 12B0351 O-ring seal; GB1235-76; 16×2.4; YI9424
09D1051X0 05A0143 screw plug; 35
00C1544 09D1052X0 Steel pipe assembly
09D1052X0 12B0351 O-ring seal; GB1235-76; 16×2.4; YI9424
09D1052X0 05A0143 screw plug; 35
00C1544 27A0046 pipe clamp; Q235
00C1544 10D5609 Steel pipe assembly; WELD
00C1544 04B0676 Screw; GB/T70.1-2008; M12×50-8.8-Zn.D; STL
00C1544 06B0008 Washer; GB93-87; 12; 65Mn
00C1544 00B0033 Bolt; GB5782-86; M12×70-8.8-Zn.D; STL
00C1544 12B0821 O-ring; SAE J515:2010; 37.69×3.53; NBR-90
00C1544 12B0224 O-ring; GB3452.1-92; 23.6×1.8; YI9424
00C1544 00B0035 Bolt; GB5783-86; M12×35-8.8-Zn.D; STL
00C1544 72A0630 pressure plate; 45
00C1544 07C2441 Hose assembly; ASSY
00C1544 07C2440 Hose assembly; ASSY
00C1544 00B0005 Bolt; GB5783-86; M10×20-8.8-Zn.D; STL
00C1544 06B0002 Washer; GB93-87; 10; 65Mn
00C1544 10D5610 Steel pipe assembly; WELD
15E0844X1 10C0754 steering cylinder; ASSM
10C0754 81A0003 pad
10C0754 11A0003 cover
10C0754 00B0056 bolt; GB5783-86; M10×16-8.8-Zn.D; STL
