Description

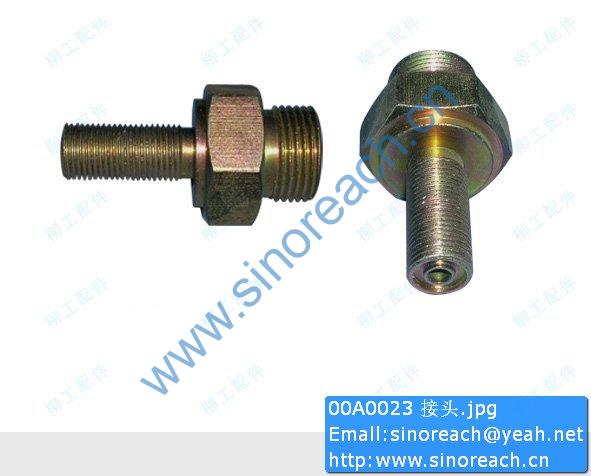

00A0023 connector for LIUGONG spare parts

D02A-005-04+B SP121808 Fuel pipe 1 D02A-004-01
D02A-328-01+A SP121842 Fuel filler cap sealing ring 1 D02A-004-01
B00000301 SP121499 O-shaped rubber sealing ring 1 D02A-004-01
B00002142 SP121663 Hexagon flange bolt 4 D02A-000-30B
D02A-107-40+A SP121815 Cylinder head long bolt 20 D02A-000-30B
D02A-108-40+A SP121816 cylinder head short bolt 6 D02A-000-30B
D02A-323-01+A crankshaft thrust bearing (lower) 1 D02A-000-30B
D02A-323-01C+A SP111836 crankshaft thrust bearing (lower) 1 D02A-323-01
D02A-323-01F+A crankshaft thrust bearing (lower) 1 D02A-323-01
D02A-109-30B+A 40C2087 Cylinder head gasket 1 D02A-000-30B
B00002114 SP121651 Hexagon flange bolt 8 D02A-000-30B
B00002153 SP121669 Hexagon flange bolt 7 D02A-000-30B
B00002165 SP121673 Hexagon flange bolt 6 D02A-000-30B
D02A-312-01+A SP111356 cylindrical pin 2 D02A-000-30B
B00002062 SP121643 Hexagon flange bolt 4 D02A-000-30B
B00002137 SP121660 Hexagon flange bolt 2 D02A-000-30B
B00002145 SP121665 Hexagon flange bolt 2 D02A-000-30B
B00001545 SP111422 Composite hard gasket 2 D02A-000-30B
D02A-174-43+A SP121836 Oil pump fixing bracket 1 D02A-000-30B
B00001811 SP121610 Oversized wool washer 1 D02A-000-30B
B00002147 SP121666 Hexagon flange bolt 2 D02A-000-30B
B00001724 SP121600 Hexagon Head Screw Plug 2 D02A-000-30B
D02A-168-01+A SP121829 Hexagon head plug 1 D02A-000-30B
B00001378 SP121571 O-shaped rubber sealing ring 1 D02A-000-30B
D19-000-80+D Oil line assembly 1 D6114ZG14B+DB0456-ZJ
D19-001-02+A SP101477 Suction pipe welding parts 1 D19-000-80
D19-106-01+A clamp band 1 D19-001-02
D19-103-01+A Suction pipe suction cap 1 D19-001-02
D19-104-01+A Suction pipe suction port 1 D19-001-02
D19-101-02+A Suction pipe 1 D19-001-02
D19-102-01A+A Suction pipe flange 1 D19-001-02
B00002111 SP121649 Hexagon flange bolt 2 D19-000-80
B00000790 SP121524 I type hexagon nut 1 D19-000-80
B00000913 SP121533 Hexagon socket head screw 2 D19-000-80
B00001252 SP121556 Spring washer 1 D19-000-80
B00002178 SP121676 Hinge bolt 1 D19-000-80
B00002193 SP111426 Washer 2 D19-000-80
D19-105-01+A SP111393 Suction pipe bracket 1 D19-000-80
D19-107-02A+A SP111394 connecting hose 1 D19-000-80
D19-110-01C+B SP101481 turbocharger oil inlet pipe 1 D19-000-80
D19-113-02+A SP101483 Gasket 1 D19-000-80
D19-118-01+B connector 1 D19-000-80
B00000505 SP121505 Hexagon head bolt 2 D19-000-80
B00001567 SP121588 hose clamp 2 D19-000-80
D19-002-46+A SP122007 turbocharger return pipe welding parts 1 D19-000-80
D19-112-02+B Turbocharger return pipe flange 1 D19-002-46
D19-111-46+A Turbocharger oil return pipe 1 D19-002-46
D19-114-01A+A SP111397 Suction pipe flange gasket 1 D19-000-80
B00002118 SP121652 Hexagon flange bolt 1 D19-000-80
B00001297 Flat washer 2 D19-000-80
B00001275 Flat washer 2 D19-000-80
D24C-000-112+B supporting water pipeline assembly 1 D6114ZG14B+DB0456-ZJ
D24B-113-01+B SP111406 clamp band 1 D24C-000-112
B00001575 SP121592 hose clamp 2 D24C-000-112
B00001563 SP121586 Hose clamp 2 D24C-000-112
D24C-003-112+B Water pump inlet pipe welding parts 1 D24C-000-112
B00001996 SP121623 Hexagon flange bolt 1 D24C-000-112
B00002263 Rubber water pipe 1 D24C-000-112
XSG-08-000+B SP122120 muffler combination group 1 D6114ZG14B+DB0456-ZJ
WG-08-000+A SP122113 exhaust tail pipe assembly 1 D6114ZG14B+DB0456-ZJ
B00000553 Hexagon head bolt 1 WG-08-000
B00000773 SP121523 I type hexagon nut 1 WG-08-000
B00001240 spring washer 1 WG-08-000
B00001279 Flat washer 1 WG-08-000
WG-08-001+A clamp 1 WG-08-000
WG-08-002+A take over 1 WG-08-000
WG-08-003+A long tube 1 WG-08-000
WG-08-004+A Elbow 1 WG-08-000
D33-000-181+A Diesel engine support assembly 1 D6114ZG14B+DB0456-ZJ
D33-102-01+A SP101546 Right front support 1 D33-000-181
D33-001-02+A Front support assembly part 1 D33-000-181
D33-002-01B+A SP122063 Rubber shock absorber component 1 D33-001-02
D33-101-03+A SP122064 Front support 1 D33-001-02
D33-103-01+A SP101547 Left front support 1 D33-000-181
B00000445 Hexagon head bolt 4 D33-000-181
B00000541 Hexagon head bolt 16 D33-000-181
D33-104-01+B Rear support 2 D33-000-181
B00001278 SP121559 Flat washer 20 D33-000-181
KLG-14J-000+B SP112148 air filter assembly 1 D6114ZG14B+DB0456-ZJ
F/KLG-KW2442A main filter element 1 KLG-14J-000+B
F/KLG-KW2442A (BX) Safety filter element 1 KLG-14J-000+B
D04-000-30A+D Cylinder head assembly 1 D6114ZG14B+DB0456-ZJ
D04-313-01+B SP101390 clamp band 1 D04-000-30A
D04-314-01B+A SP101391 Hose 1 D04-000-30A
D04-300-01A+A SP101385 Cover bolt sealing ring 6 D04-000-30A
D04-318-01+A SP101392 O-shaped rubber sealing ring 2 D04-000-30A
B00000846 SP121530 Hexagon flange nut 6 D04-000-30A
D04-136-30B+A SP111370 Cylinder head cover bolt 6 D04-000-30A
D04-111-31B+B SP106300 Exhaust valve 6 D04-000-30A
D04-147-32+A SP121918 Injector pressure plate 6 D04-000-30A
D04-302-02+A SP121920 Injector pressure plate spacer 6 D04-000-30A
D04-134-32+B SP121911 Cylinder head cover 1 D04-000-30A
D04-138-01A+A SP121913 Fuel cap 1 D04-000-30A
B00002148 SP121667 Hexagon flange bolt 12 D04-000-30A
D04-007-32+A SP121907 rocker arm assembly 6 D04-000-30A
B00001062 Circlip for shaft A type 2 D04-007-32
D04-124-01+A SP101354 Rocker arm thrust plate 2 D04-007-32
D04-129-01+A SP101360 Wave elastic gasket 2 D04-007-32
D04-005-30A+A Rocker arm shaft assembly 1 D04-007-32
D04-116-30A+C Rocker shaft 1 D04-005-30A
D04-117-01+B Bulkhead 2 D04-005-30A
D04-122-32+A SP121909 rocker arm 2 D04-007-32
D04-162-01A+A SP121919 Small hexagon nut 2 D04-007-32
