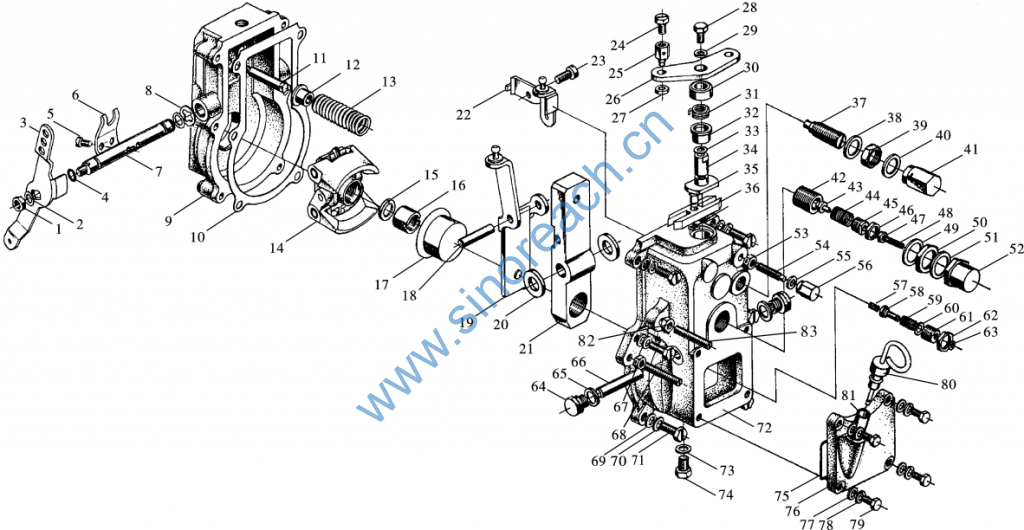

Fuel injection pump installation assembly (2) governor assembly YTO

1 GB6170-86 03B1111 03B1111 螺母M8 Nut M8
2 GB848-85 垫圈 Washer
3 05T104-008 SP119753 SP119753 操纵手柄 Control handle
4 05T104-0014 SP119750 SP119750 O型密封圈 O-sealing ring
5 GB818-85 螺钉M5×12 Screw M5×12
6 05T104-0004 SP119744 SP119744 调节板 Adjusting board
7 05T104-0005 SP119745 SP119745 操纵轴 Control shaft
8 GB896-86 挡圈9 Retaining ring9
9 05B129-0101 SP119740 SP119740 喷油泵体（调速器体） Fuel injection pump body
10 05T104-0016 SP119752 SP119752 垫片 washer
11 05T104-0003 SP119743 SP119743 弹簧导向轴 Guide shaft,spring
12 05T104-0002 SP119742 SP119742 弹簧座 Spring seat
13 按机型定 调速弹簧 Timing spring
14 05T51-03 SP119782 SP119782 飞锤部件 Fly hammer assy
15 04Q01001 SP119733 SP119733 弹簧垫圈 Spring washer
16 05YT43-0007 SP119786 SP119786 圆螺母 Round nut
17 05T104-0009 SP119746 SP119746 滑套 Sliding sleeve
18 05T104-0202 SP119759 SP119759 销轴 Pin shaft
19 05T104-06 SP119767 SP119767 支架部件 Bracket assemble
20 05T104-0015 SP119751 SP119751 垫圈 Washer
21 05T104-0201 SP119758 SP119758 支承杆 Cramp bar
22 05T104-08 SP119769 SP119769 齿杆连接杆部件 Connecting rod assembly,rack bar
23 GB5783-86 00B0540 00B0540 螺栓M5×8 Bolt M5×8
24 GB29.1-88-6.8Zn.D 螺栓M5×10 Bolt M5×10
25 05T27-1801 SP119775 SP119775 紧座 Holder
26 05T104-0701 SP119768 SP119768 停车手柄 Stop handle
27 05T27-1802 SP119776 SP119776 垫圈 Washer
28 GB5783-86 00B0540 00B0540 螺栓M6×10 Bolt M6×10
29 GB859-87 弹簧垫圈6 Spring washer6
30 05T104-0105 SP119757 SP119757 停车罩套 Stop sheath
31 05T104-0104 SP119756 SP119756 复位扭簧 Retoration torsion spring
32 05T7-0209 SP119783 SP119783 衬套 Bush
33 GB3452.1-82 SP104362 O型橡胶密封圈6.7×1.8 O-rubber sealing ring 6.7×1.8
34 05T104-0103 SP119755 SP119755 停车摇臂轴 Stop rocker shaft
35 05T27-11 SP119774 SP119774 浮动杆 Floating rod
36 GB896-86 挡圈4 Retaining ring4
37 0527-11 SP119739 SP119739 稳定器部件 Stabilizer assembly
38 04Q02011 SP119737 SP119737 铜垫圈 Copper washer
39 05YT43-0412 扁螺母 Flat nut
40 04Q02011 SP119737 SP119737 铜垫圈 Copper washer
41 05T21-0008A SP119770 SP119770 防护螺母 Protection nut
42 05T104-0302 SP119761 SP119761 螺套 Turnbuckle
43 05T104-0301-2 SP119760 SP119760 校正顶杆 Corrector mandril
44 按机型定 校正弹簧 Corrector spring
45 05T104-0303 SP119762 SP119762 调节螺套 Adjusting turnbuckle
46 05T104-0304 SP119763 SP119763 小螺母 Small nut
47 GB6170-86 03B1111 03B1111 螺母M5 Nut M5
48 GB75-85 螺钉M5×20 Bolt M5×20
49 04Q02018 SP119738 SP119738 铜垫圈 Copper washer
50 05T7B-0223 SP119785 SP119785 螺母 Nut
51 04Q02018 SP119738 SP119738 铜螺母 Copper screw cap
52 05T104-0013 SP119749 SP119749 防护螺帽 Defend crew cap
53 05T27-0009 SP119773 SP119773 小带孔螺母 Zonule hole nut
54 05T43-0003 SP119781 SP119781 挡钉 Stop screw
55 04Q020003 SP119734 SP119734 铜垫圈 Copper washer
56 05T7B-0010 SP119784 SP119784 防护螺母 Defend nut
57 05T104-0403 SP119765 SP119765 起动弹簧 Start spring
58 05T104-0401 SP119764 SP119764 顶杆 Mandril
59 按机型定 怠速弹簧 Idle spring
60 05T29-0504-1 SP119778 SP119778 调整垫圈 Adjusting washer
61 05T29-0506 SP119779 SP119779 弹簧支座 Bracket,spring
62 05T21-0506 SP119772 SP119772 螺母 Nut
63 GB896-86 挡圈4 Retaining ring
64 05T21-0010 SP119771 SP119771 闷头螺钉 Bolt
65 04Q02007 SP119736 SP119736 铜垫圈 Copper washer
66 05T104-0011 SP119748 SP119748 支撑销 Support pin
67 05T27-0009 SP119773 SP119773 小带孔螺母 Zonule hole nut
68 05T29-0104 SP119777 SP119777 小油门挡钉 Stop screw,small accelerator
69 GB848-85 挡圈6 Retaining ring6
70 GB859-87 弹簧垫圈 Spring washer
71 GB29.1-88 螺栓M6×16 Bolt M6×16
72 05T104-010 SP119754 SP119754 调速器盖 Cover ,governor
73 04Q02006 SP119735 SP119735 铜垫圈 Copper washer
74 GB5783-86 00B0540 00B0540 螺栓M8×10 Bolt M8×10
75 05T104-0010 SP119747 SP119747 橡胶密封圈 Rubber sealing ring
76 05T104-0501 SP119766 SP119766 油尺座盖 Cover,dipstick seat
77 GB848-85 垫圈5 Washer 5
78 GB859-87 弹簧垫圈5 Spring washer 5
79 GB5783-86 00B0540 00B0540 螺栓M5×16 Bolt M5×16
80 05T1-06B 油尺部件 Dipstick assembly
81 05T40-0212 SP119780 SP119780 油尺套 Dipstick sleeve
82 05T27-0009 SP119773 SP119773 小带孔螺母 Zonule hole nut
83 05T29-0104 SP119777 SP119777 大油门挡钉 Stop screw,big accelerator
