YTR4105T1.3100AZ Fuel injection pump installtion assy YTO
YTR4105T1.3100AZ Fuel injection pump installtion assy YTO

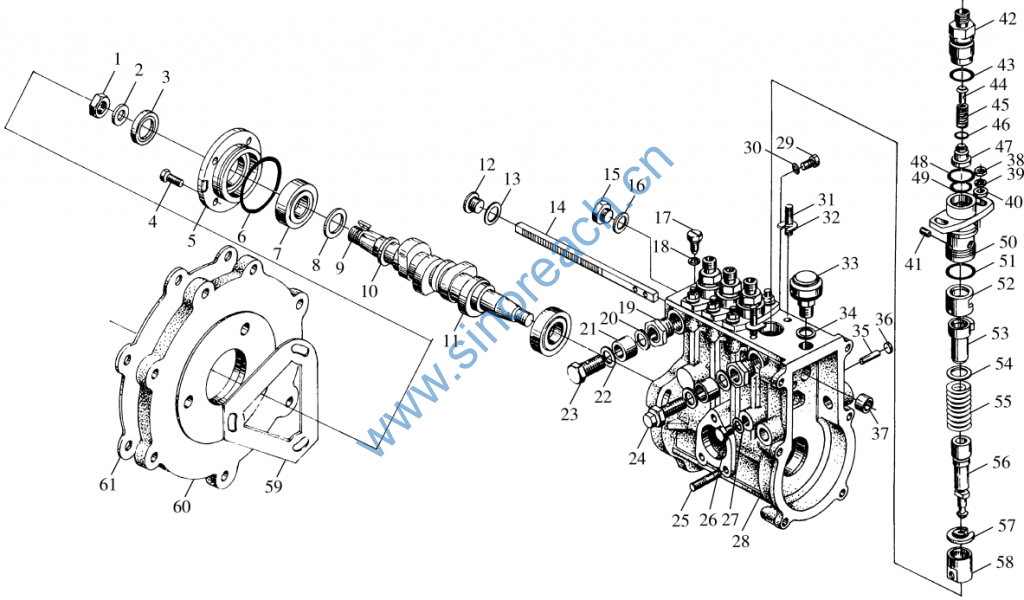

YTR4105T1.3100AZ 喷油泵安装总成 Fuel injection pump installtion assy
喷油泵 41W293A SP109146 改用SP127620，同时使用新轮毂SP127621 喷油泵总成 Fuel injection pump assy
1 04G30823012000(12GB 6170) I型六角薄螺母 Nut
2 04G501100120(12 GB93) 标准弹簧垫圈 Spring washer
3 05T21-17 轴承油封部件 Oil sealing assembly,bearing
4 04G1072100616(6X16 GB 819) 十字槽沉头螺钉 Cross bolt
5 05B129-0006(按机型定） 轴承侧盖 Side cover,bearing
6 05B129-0007 O型橡胶密封圈 O-rubber sealing ring
7 04G702000E7203(7203 GB 297) 圆锥滚子轴承 Conical roller bearing
8 05B88-0203(按需要调整） 调整垫圈 Control washer
9 05B129-0015（3X16 GB 1099） 半圆键3×16 Woodruff key 3×16
10 05B88-0202 凸轮轴挡圈 Retaining ring ,camshaft
11 按机型定 凸轮轴 Camshaft
12 05B129-0002 齿杆护帽 Protecting cap, rod
13 05B129-0003 铜垫圈 Copper washer
14 05B129-0001 调节齿杆 Control rod
15 05B129-0102-2 油道螺塞 Screw plug,oil way
16 05B129-0103 铜垫圈 Copper washer
17 04Q09002 放气螺钉 Deflate,screw plug,
18 04Q02003 铜垫圈 Copper washer
19 05B129-0104 油管接头 Pipe joint
20 05BT1-0106 紫铜垫圈 Copper washer
21 04Q06003 防污垫圈 Antipollution washer
22 05BT1-0106 紫铜垫圈 Copper washer
23 05TAX-0010 油管螺钉 Screw,pipe
24 05B129-09 溢油阀部件 Overflow fuel valve assembly
25 AM6×16GB898-88 双头螺柱M6×16 Double-edged bolt M6×16
26 M8×10GB5783-86 小六角螺栓M8×10 Small hexangular bolt M8×10
27 04Q02005 铜垫圈 Copper washer
28 05B129-0101（按机型定） 喷油泵体 Body,fuel injection pump
29 05TAX-0019 齿杆定位螺钉 Retaining bolt,rod
30 04Q02003 铜垫圈 Copper washer
31 04G4031540618(6×18.GB900) 双头螺柱 Double-edged bolt
32 05B129-05B 预行程调整垫片 Shim,beforehand control washer
33 05T7B-05B 呼吸器部件 Breather assembly
34 04Q02011 SP119737 SP119737 铜垫圈 Copper washer
35 05B129-0107 挺柱体定位销 Adjusting pin,tappet body
36 05B129-0106 铝封 Aluminous seal
37 05B129-0105 拉杆定位衬套 Securing bush,control rod
38 M6GB6173-86 六角扁螺母 Hexangular flat nut
39 6GB859-87 轻型弹簧垫圈 Ligt spring washer
40 05B129-0009 垫圈 washer
41 05B129-0313 柱塞套定位销 Adjusting pin，plunger sleeve
42 05B129-0301-3 出油阀接头 Joint,delivery valve
43 05B129-0302 O型橡胶密封圈 O-rubber sealing ring
44 B129-0314 出油阀限制器 Limitator,delivery valve
45 05B129-0315(按需选用） 出油阀弹簧 Spring,delivery valve
46 05B129-0310 高压密封圈 High pressure sealing ring
47 按机型定 出油阀 Delivery valve
48 05B129-0303 O型橡胶密封圈 O-rubber sealing ring
49 05B129-0311 O型橡胶密封圈 O-rubber sealing ring
50 05B129-0501-3 法兰套 Cover，flange
51 05B129-0303 O型橡胶密封圈 O-rubber sealing ring
52 05B129-0305 齿圈定位套筒 Retaining sleeve,ring gear
53 05B129-0306-4 油量控制套筒 sleeve,oil-cntroller
54 05B129-0307 柱塞弹簧上座 Upper seat,plunger spring
55 05B129-0308 柱塞弹簧 Plunger spring
56 按机型定 柱塞偶件 Plunger pair
57 05B129-0309 柱塞弹簧下座 Lower seat,plunger spring
58 05B129-04 挺柱体部件 Tappet body assembly
59 YTR310002 SP113906 喷油泵法兰垫片 Washer,fuel injection pump flange
60 YTR310001 SP113905 喷油泵连接板 Fuel injection pump joint board
61 YTR310003 SP113907 喷油泵连接板垫片 Washer,fuel injection pump joint board
