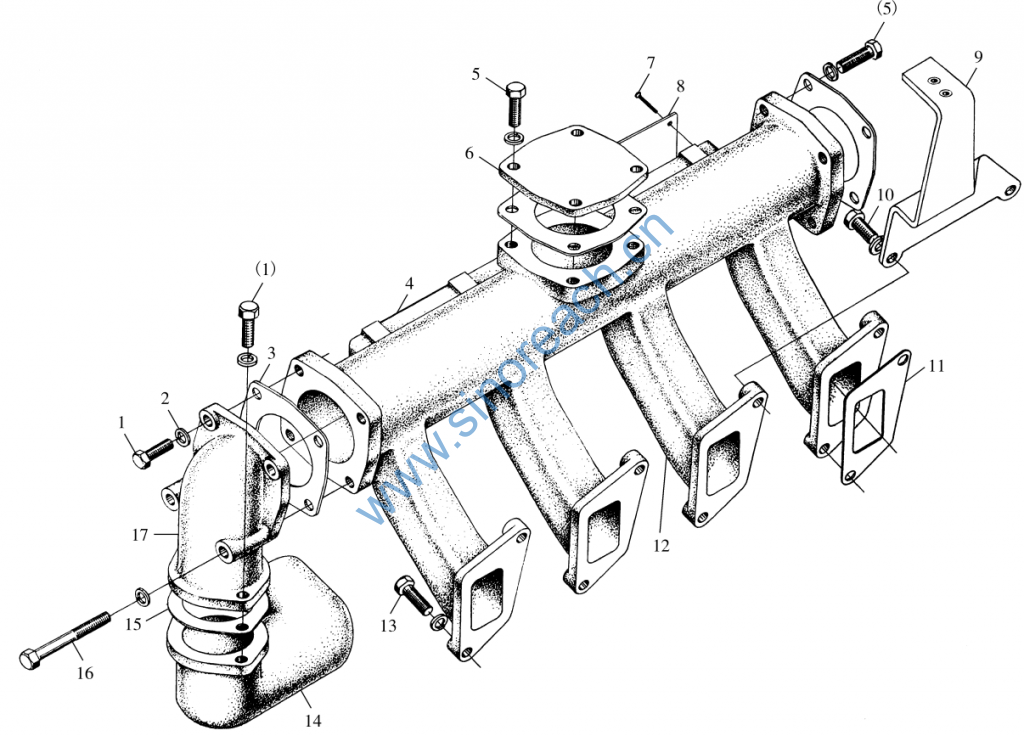

YTR4105T1.220000 Intake Tube Assy YTO

YTR4105T1.220000 进气管总成 Intake tube assy 1

1 GB/T5783-1986 螺栓M10×30-Zn.D Bolt M10×30 4

2 GB/T93-1987 垫圈10 Spring washer 10 22

3 4RG1.220002 SP111748 进气连接管垫片 Gasket,intake  manifold 3

4 4RG1.220007-1 SP119790 SP119790 加油须知牌 Oil notice 1

5 GB/T5783-1986 螺栓M10×20-Zn.D Bolt M10×20 8

6 4RT12.220004 SP113811 进气管盖板 Cover board，intake tube 2

7 GB/T827-1986 铆钉4×6 Rivet 4×6 4

8 YTR.220009A 标牌 Name plate 1 适用于YTR4105机型

8 YTR.220009B 标牌 Name plate 1 适用于YTR4108机型

9 YTR4105T2.910050 支架焊合件 Bracket weldment 1

10 GB/T5783-1986 螺栓M10×30-Zn.D Bolt M10×30 2

11 R220003 SP100559 进气歧管垫片 Air intake manifold gasket 4

12 4RG1.220001 SP111747 进气管 Intake tube 1

13 GB/T5783-1986 螺栓M10×35-Zn.D Bolt M10×35-Zn.D 6

14 YTR4105G69.220100-51 SP111779 进气连接胶管 Connecting tube，air cleaner 1

15 4RT19.220006 SP111750 空滤连接管垫片 Air inlet hose 1

16 GB/T5783-1986 螺栓M10×85-Zn.D Bolt M10×85 2

17 YTR4105G69.220005 SP111778 进气连接管 Connecting intake tube 1
