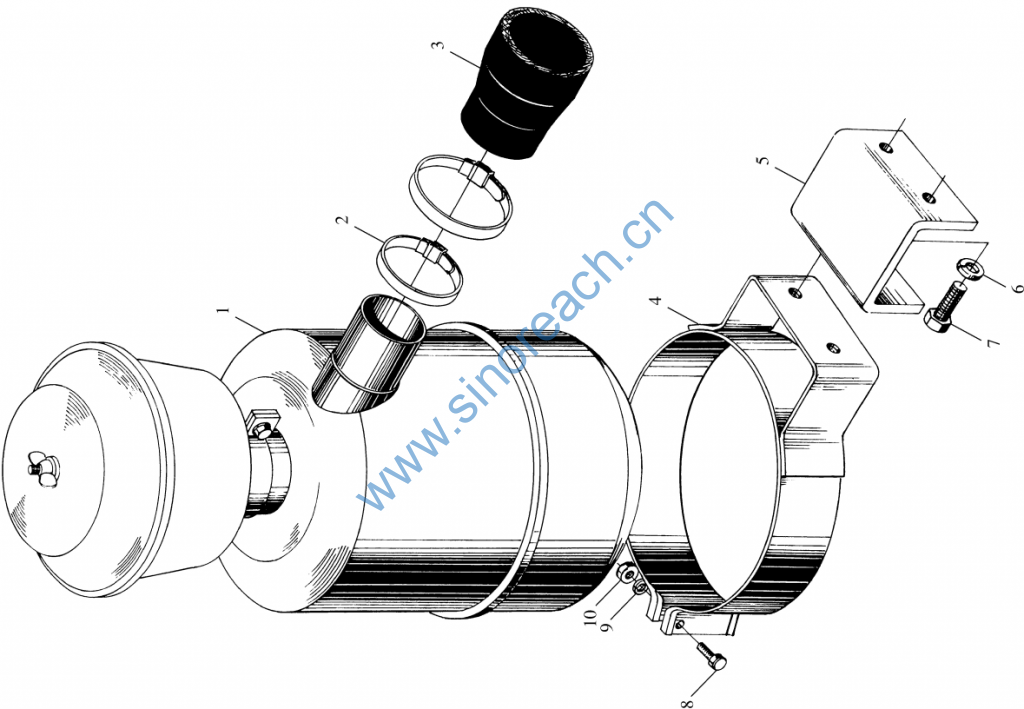

4RT19.210000 Air Clenner Installation Assy YTO

4RT19.210000 空气滤清器安装总成 Air cleaner installation assy

1 KW1833A34 SP109143 KW1833A34(用于816） 空气滤清器总成 Air cleaner assy

2 JK-4X SP113822 卡箍 Hoop

3 3RT5.210002 SP115145 空滤胶管 Hose，air cleaner

4 YTR4105G69.210200 SP120100 SP120100 空滤支架部件 Bracket,air cleaner

5 4RT19.210001 过渡支架 Transition bracket

6 GB/T93-1987 垫圈10 Spring washer 10

7 GB/T93-1987 螺栓M10×20 Bolt M10×20

8 GB/T5783-2000 螺栓M8×25-Zn.D Bolt M8×25

9 GB/T93-1987 垫圈8 Spring washer 8

10 GB/T6170-1987 螺母M8 Nut M8

11 YTR4105G69.210005 空滤垫子 Cushion, air cleaner

12 YTR4105G69.220007 空滤卡箍 Hoop, air cleaner

13 YTR4105G69.210202 卡箍带总成 Hoop strap assy
