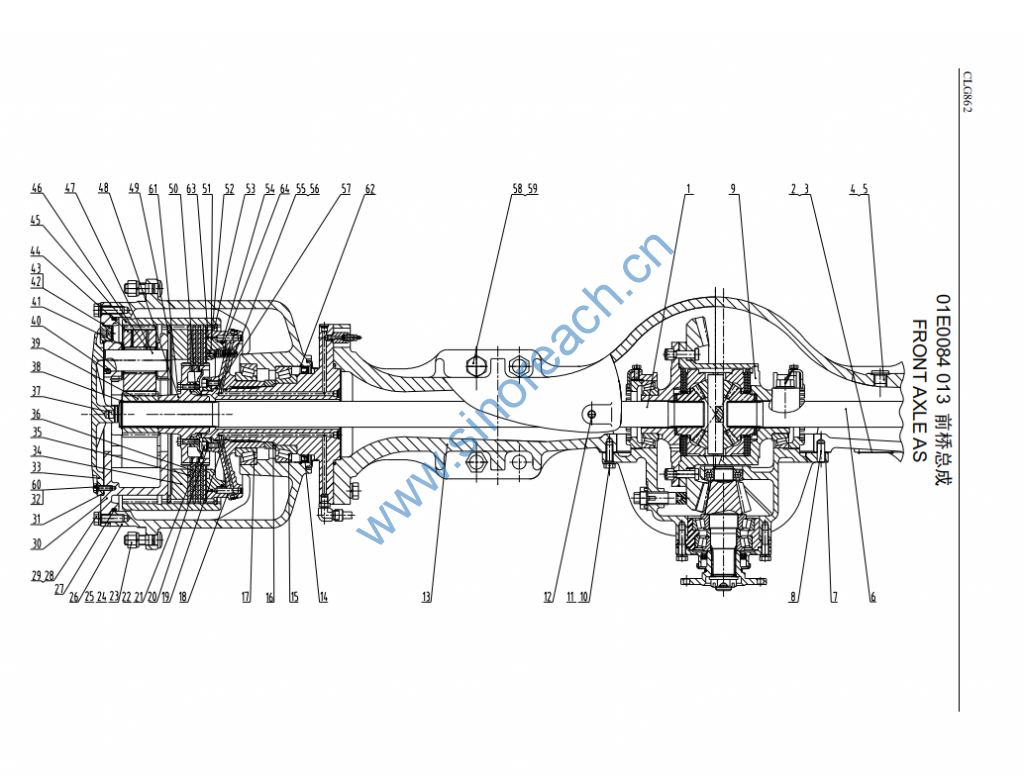

CLG862 01E0084 013 前桥总成 FRONT AXLE AS

1 62A0065 004 左半轴 HALF SHAFT-LH 1
2 74A4621 000 铭牌 NAMEPLATE 1
3 09B0002 000 铆钉 RIVET 4
4 03B0212 000 螺塞 PLUG 2
5 06B0055 000 垫圈 WASHER 2
6 62A0066 004 右半轴 HALF SHAFT-RH 1
7 81A0112 000 密封垫 GASKET 1
8 60A0011 000 定位销 DOWEL PIN 2
9 41C0111 006 主传动总成 PRIMARY REDUCTION 1 Z
10 06B0013 000 垫圈 WASHER 18
11 00B0188 000 螺栓 BOLT 18
12 03B0406 002 通气塞 BREATHER PLUG 1
13 41C0143 004 桥壳轮边支承 HUB CARRIER 1 Z
14 13B0282 000 密封圈 SEAL RING 2
15 23B0057 000 圆锥滚子轴承
HR32026XJ TAP.ROLLER BRG 2
16 51C0114 002 轴套 BUSHING 2
17 23B0055 000 圆锥滚子轴承
HR32028XJ TAP.ROLLER BRG 2
18 24D0051 000 内齿轮支承架焊接
件
BRACKET 2
19 12B0216 000 O 形圈 O-RING 2
20 03B0431 000 圆螺母 ROUND NUT 2
21 04B0022 000 螺钉 SCREW 4
22 06B0002 000 垫圈 WASHER 4
23 01B0379 001 螺栓 BOLT 40
24 03B0150 000 螺母 NUT 40
25 06B0019 000 垫圈 WASHER 40
26 70A0087 004 轮毂 HUB 2
27 12B0424 000 O 形圈 O-RING 2
28 00B0245 000 螺栓 BOLT 40
29 06B0177 001 垫圈 WASHER 40
30 70A0086 004 行星轮架 PLANETARY CARRIER 2
31 81A0080 000 垫片 SHIM 2
32 00B0017 000 螺栓 BOLT 16
33 53A0259 002 端盖 COVER 2
34 52A0329 000 承压盘 CARRIER PLATE 2
35 51C0094 000 对偶钢片 STEEL PLATE 8
36 37C0034 000 摩擦片 FRICTION PLATE 6
37 61A0019 000 轴 SHAFT 2

38 07B0028 000 挡圈 SNAP RING 2
39 41A0094 000 太阳轮 SUN GEAR 2
40 20B0026 000 钢球 STEEL BALL 8
41 56A0287 000 垫片 SHIM 16
42 03B0432 001 螺塞 PLUG 2
43 06B0054 000 垫圈 WASHER 2
44 41A0095 000 行星轮 PLANETARY GEAR 8
45 46A0008 004 内齿轮 RING GEAR 2
46 20B0045 000 滚针 ROLLING NEEDLE 224
47 61A0263 002 行星轮轴 PLANETARY GEAR
SHAFT 8
48 72A0291 000 摩擦片支承 SUPPORT 2
49 07B0075 003 挡圈 SNAP RING 2
50 72A0292 001 圆盘 DISC 2
51 50A0121 003 活塞 PISTON 2
52 12B0422 002 密封圈 SEAL RING 2
53 07B0076 002 挡圈 SNAP RING 2
54 12B0421 002 密封圈 SEAL RING 2
55 10B0070 003 弹簧 SPRING 16
56 75A0128 002 钢丝挡圈 SNAP RING 4
57 12B0423 000 O 形圈 O-RING 2
58 01B0380 000 螺栓 BOLT 8
59 03B0197 001 锁紧螺母 LOCKNUT 8
60 06B0008 000 垫圈 WASHER 16
61 00B0002 000 螺栓 BOLT 9
62 07B0106 000 挡圈 SNAP RING 2
63 88A0455 002 支承环 SUPPORT RING 2
64 88A0456 002 支承环 SUPPORT RING 2
