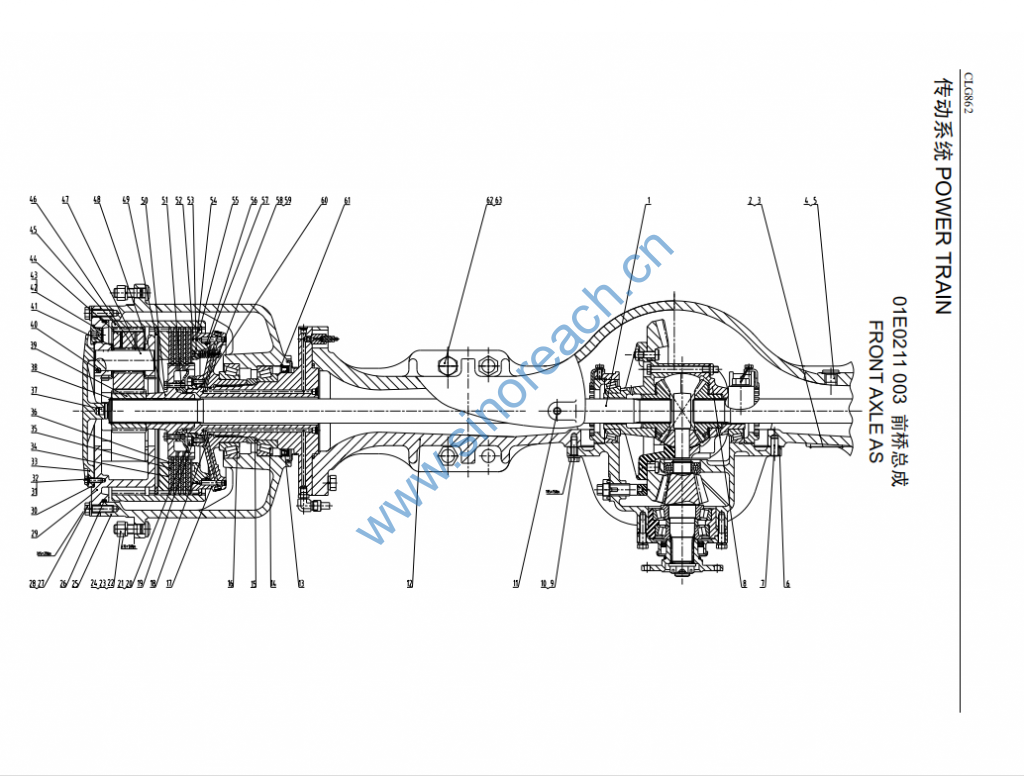

CLG862 01E0211 003 前桥总成 FRONT AXLE AS

1 62A0166 000 半轴 HALF SHAFT 2
2 74A4621 000 铭牌 NAMEPLATE 1
3 09B0002 000 铆钉 RIVET 4
4 03B0212 000 螺塞 PLUG 2
5 06B0055 000 垫圈 WASHER 2
6 81A0112 000 密封垫 GASKET 1
7 60A0011 000 定位销 DOWEL PIN 2
8 41C0292 002 主传动总成 PRIMARY REDUCTION 1 Z
9 06B0103 000 淬硬垫圈 HARD WASHER 18
10 00B0188 000 螺栓 BOLT 18
11 03B0406 002 通气塞 BREATHER PLUG 1
12 41C0143 004 桥壳轮边支承 HUB CARRIER 1 Z
13 13B0282 000 密封圈 SEAL RING 2
14 23B0057 000 圆锥滚子轴承
HR32026XJ TAP.ROLLER BRG 2
15 51C0114 002 轴套 BUSHING 2
16 23B0055 000 圆锥滚子轴承
HR32028XJ TAP.ROLLER BRG 2
17 24D0051 000 内齿轮支承架焊接
件
BRACKET 2
18 12B0216 000 O 形圈 O-RING 2
19 03B0431 000 圆螺母 ROUND NUT 2
20 04B0022 000 螺钉 SCREW 4
21 06B0002 000 垫圈 WASHER 4
22 01B0379 001 螺栓 BOLT 40
23 03B0150 000 螺母 NUT 40
24 06B0019 000 垫圈 WASHER 40
25 70A0087 004 轮毂 HUB 2
26 12B0424 000 O 形圈 O-RING 2
27 00B0245 000 螺栓 BOLT 40
28 06B0177 001 垫圈 WASHER 40
29 70A0086 004 行星轮架 PLANETARY CARRIER 2
30 81A0080 000 垫片 SHIM 2
31 00B0017 000 螺栓 BOLT 24
32 06B0008 000 垫圈 WASHER 16
33 53A0259 002 端盖 COVER 2
34 52A0329 000 承压盘 CARRIER PLATE 2
35 51C0094 000 对偶钢片 STEEL PLATE 8
36 37C0034 000 摩擦片 FRICTION PLATE 6
37 61A0019 000 轴 SHAFT 2

38 07B0028 000 挡圈 SNAP RING 2
39 41A0094 000 太阳轮 SUN GEAR 2
40 20B0026 000 钢球 STEEL BALL 8
41 56A0287 000 垫片 SHIM 16
42 03B0432 001 螺塞 PLUG 2
43 06B0054 000 垫圈 WASHER 2
44 41A0095 000 行星轮 PLANETARY GEAR 8
45 46A0008 004 内齿轮 RING GEAR 2
46 20B0045 000 滚针 ROLLING NEEDLE 224
47 61A0263 002 行星轮轴 PLANETARY GEAR SHAFT 8
48 72A0291 000 摩擦片支承 SUPPORT 2
49 07B0075 003 挡圈 SNAP RING 2
50 00B0002 000 螺栓 BOLT 9
51 72A0292 001 圆盘 DISC 2
52 88A0455 002 支承环 SUPPORT RING 2
53 50A0121 003 活塞 PISTON 2
54 12B0422 002 密封圈 SEAL RING 2
55 07B0076 002 挡圈 SNAP RING 2
56 12B0421 002 密封圈 SEAL RING 2
57 88A0456 002 支承环 SUPPORT RING 2
58 10B0070 003 弹簧 SPRING 16
59 75A0128 002 钢丝挡圈 SNAP RING 4
60 12B0423 000 O 形圈 O-RING 2
61 07B0106 000 挡圈 SNAP RING 2
62 01B0380 000 螺栓 BOLT 8
63 03B0197 001 锁紧螺母 LOCKNUT 8
