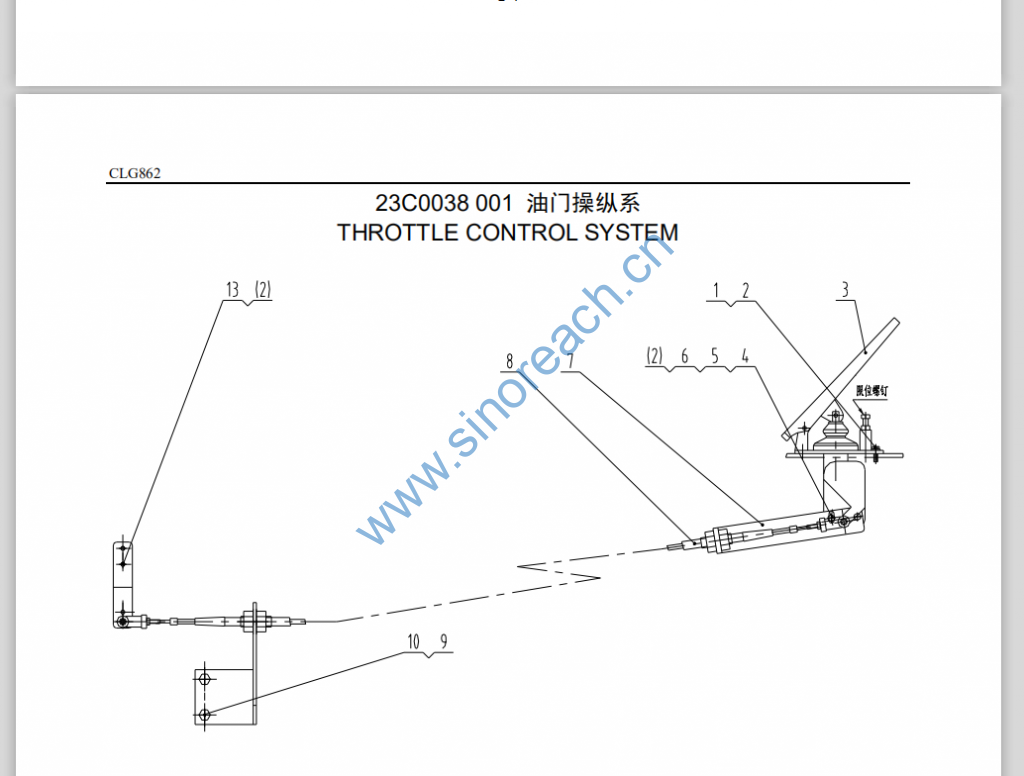

CLG862 23C0038 001 油门操纵系 THROTTLE CONTROL SYSTEM

1 00B0010 000 螺栓 BOLT 2
2 06B0003 000 垫圈 WASHER 7
3 50C0028 000 油门踏板 ACCELERATOR PEDAL 1
4 00B0023 000 螺栓 BOLT 2
5 06B0024 000 垫圈 WASHER 4
6 03B0036 000 螺母 NUT 2
7 21A0859 000 支板 PLATE 1
8 23C0039 000 油门软轴 FLEXIBLE SHAFT 1
9 00B0005 000 螺栓 BOLT 2
10 06B0002 000 垫圈 WASHER 2
13 00B0021 000 螺栓 BOLT 2
