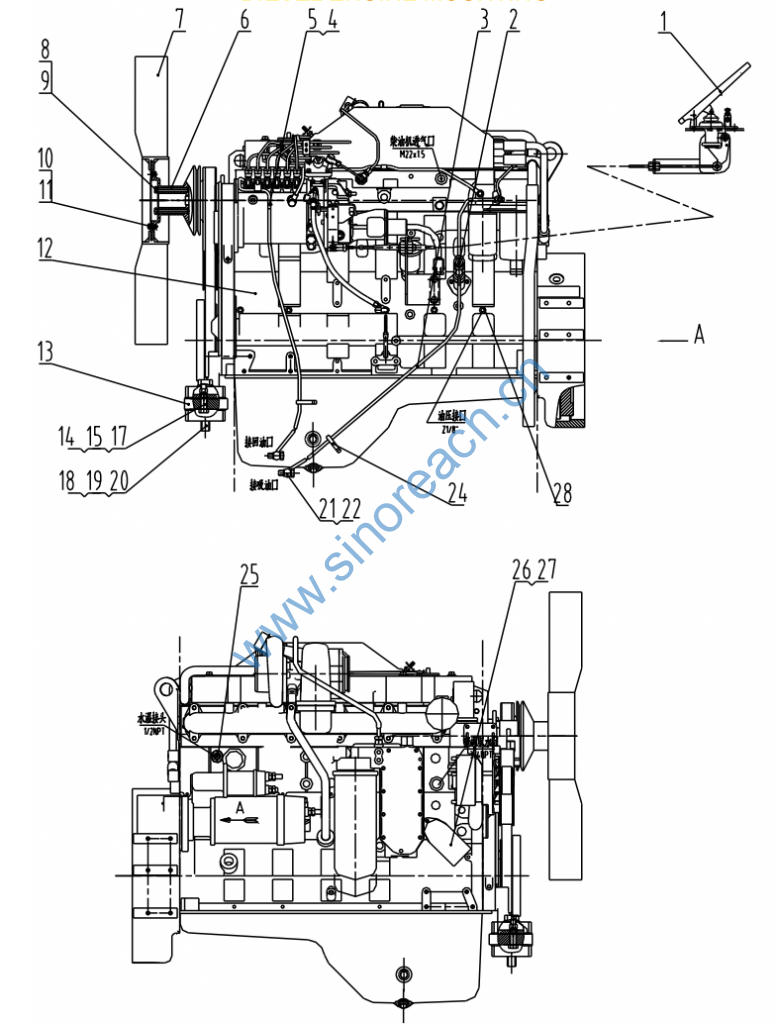

CLG862 00E0109 010 柴油机安装 DIESEL ENGINE MOUNTING

1 23C0038 001 油门操纵系 THROTTLE CONTROL
SYSTEM 1 Z
2 00A0808 000 接头 CONNECTOR 1
3 40C0092 001 柴油预滤装置 FUEL PRE-FILTER 1 Z
4 06C0219 001 柴油管 FUEL HOSE 1
5 09C0232 000 卡箍 CLAMP 1
6 53A0257 000 连接座 SUPPORT 1
7 40C0051 001 风扇 FAN 1
8 01B0141 000 螺栓 BOLT 4
9 06B0002 000 垫圈 WASHER 4
10 00B0075 000 螺栓 BOLT 6
11 06B0006 000 垫圈 WASHER 6
12 40C0273 001 柴油机 DIESEL ENGINE 1
13 40C0272 000 柴油机支撑 SUPPORT 1 Z
14 01B0163 000 螺栓 BOLT 2
15 06B0012 000 垫圈 WASHER 2
17 03B0210 002 锁紧螺母 LOCKNUT 2
18 01B0149 000 螺栓 BOLT 2
19 06B0068 000 垫圈 WASHER 2
20 06B0052 000 垫圈 WASHER 2
21 04B0002 003 螺钉 SCREW 2
22 06B0117 000 垫圈 WASHER 4
24 37B0009 000 扎带 CABLE TIE 2
25 00A1162 000 过渡接头 CONNECTOR 1
26 32A0251 001 胶管 HOSE 1
27 09C0245 000 卡箍 CLAMP 2
28 00A1021 000 接头 CONNECTOR 1
12-1 53C0051 000 油水分离器滤芯 FILTER ELEMENT 1
12-2 53C0052 000 柴油滤芯 FUEL FILTER ELEMENT 1
12-3 53C0053 机油滤芯 ENGINE OIL FILTER
ELEMENT 1
