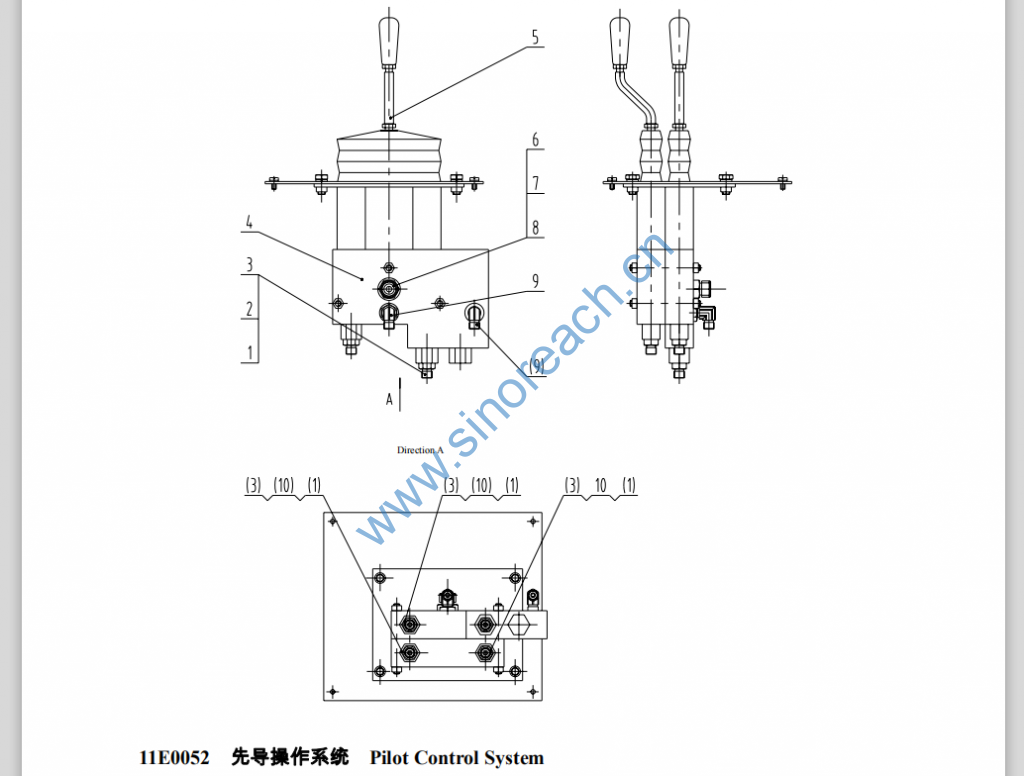

CLG842 11E0052 先导操作系统 Pilot Control System

1 12B0119 GB1235-76 O形圈 O-ring 16×2.4 4
2 00A0240 ZL50E.10.31-1 接头 Joint 1
3 12B0284 GB3452.1-92 O形圈 O-ring 7.5×1.8 4
4 12C0019 XDF6 先导阀 Pilot valve 1
5 23C0037 操纵杆总成 Control rod
assembly
1
Direction A
253
6 12B0207 GB1235-76 O形圈 O-ring 22×2.4 1
7 00A0217 JT062220 管接头 Pipe joint 1
8 12B0370 GB3452.1-92 O形圈 O-ring 15×1.8 1
9 31C0031 ZL50E.10.23 直角接头 Reight angle joint 2
10 00A0228 ZL50E.10.22-1 接头 Joint 3
