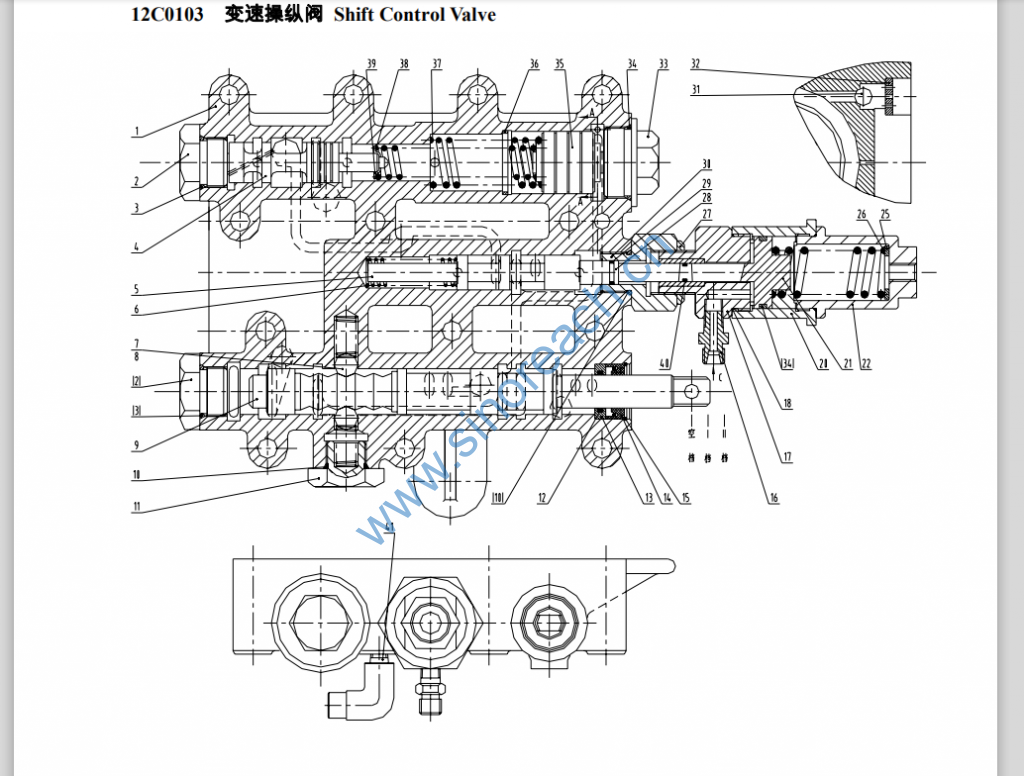

CLG842 12C0103 变速操纵阀 Shift Control Valve

1 70A0038 阀体 Valve body 1
2 02B0001 BF25-2 螺栓 Bolt 2
3 12B0379 GB1235-76 O形密封圈 O-ring 30×3.1 2
4 65A0003 BF25-4 减压阀杆 Reducing valve stem 1
5 65A0011 BF25-5 刹车阀杆 Brake valve stem 1
6 75A0016 BF25-6 弹簧 Spring 1
7 20B0012 GB308-89 钢球 Steel ball 12.7 2
8 75A0015 BF25-7 弹簧 Spring 2
9 65A0012 BF25-8 分配阀杆 Distributing valve
stem
1
10 12B0353 GB3452.1-92 O形圈 O-ring 19×2.65 2
11 00B0053 BF25-10 螺栓 Bolt 1
12 12B0040 GB3452.1-92 O形圈 O-ring 18×2.65 1
13 55A0075 BF25-11 挡套 Interstage sleeve 1
14 13B0130 GB9877.1-88 油封 Seal B 18 30 10 D 1
15 07B0016 GB893.1-86 挡圈 Retainer ring 30 1
16 00A0034 BF25-12A 接头 Joint 2
17 15C0002 BF25.1 左阀座 Left valve seat 1
18 12B0406 GB1235-76 0形密封圈 O-ring 45×3.1 2
20 78A0005 BF25-15 气阀体 Air valve body 1
21 65A0013 BF25-16 气阀杆 Air valve stem 1
22 78A0041 BF25-17 右阀座 Right valve seat 1
25 56A0039 BF25-18 垫 Pad 1
26 75A0017 BF25-19 弹簧 Spring 1
27 03B0061 BF25-20 螺母 Nut 1
28 61A0042 BF25-21 圆柱塞 Column plug 1
29 12B0095 GB3452.1-92 O形圈 O-ring 10×1.8 1
30 00A0037 BF25-22 接头 Joint 1
31 20B0006 GB308-84 钢球 Steel ball 47625G40±0 1
32 56A0040 BF25-23 圆板 Round plate 1
33 03B0024 BF25-24 螺栓 Bolt 1
34 12B0077 GB3452.1-92 O形圈 O-ring 40×3.1 2
35 61A0043 BF25-26 滑块 Sliding block 1
36 56A0041 BF25-27 调压圈 Pressure regulating
ring
1
37 75A0018 BF25-28 弹簧 Spring 1
38 75A0019 BF25-29 弹簧 Spring 1
39 53A0038 BF25-30 弹簧座 Soring seat 1
238
40 12B0036 GB3452.1-82 O形圈 O-ring 5.3X1.8 1
41 01A0432 接头 Joint 1
