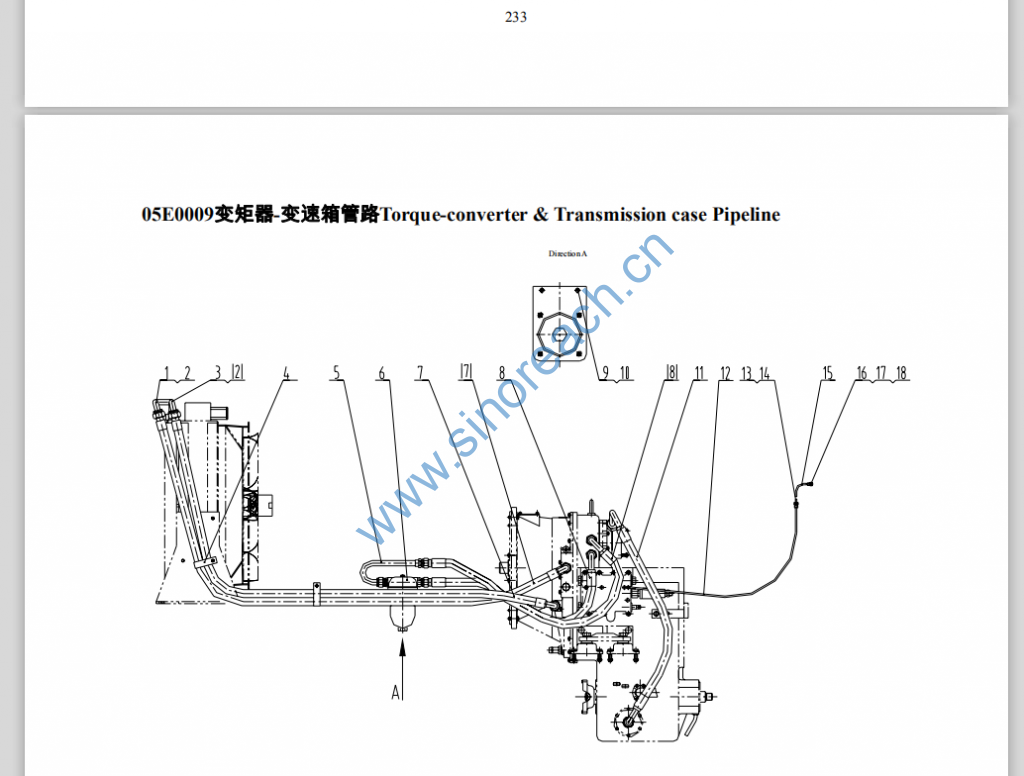

CLG842 05E0009 变矩器-变速箱管路 Torque-converter & Transmission case Pipeline

1 00C0062 弯管 Elbow Pipe 1
2 12B0271 GB3452.1-92 O形圈 O-ring 25.8×3.55 2
3 00C0060 弯管 Bend 1
4 20A0666 管夹 Pipe clamp 1
5 00C0001 ZL50C.3.2 弯管 Bend 1
6 53C0001 ZL50C.3.7 滤油器 Oil filter 1
7 00C0061 软管总成 Hose
assembly
2
8 07C0185 ZL30.3.2 变速箱-滤油器软管 Transmission
case-oil filter
hose
2
9 00B0031 GB5783-86 螺栓 Bolt M12×20-8.8-Zn.D 2
10 06B0008 GB93-87 垫圈 Washer 12 2
11 00C0002 ZL50C.3.5 变速泵进油管 Oil intake
pipe of shift
pump
1
12 11B0011 YD1150 尼龙管 Nylon pipe 1150 1
13 00A0051 ZL50C.12A-16 接头 Joint 1
14 03B0019 GB6171-86 螺母 Nut M12×1.25-8-Zn.D 1
Direction A
235
15 03C0004 YD900 尼龙管 Nylon pipe 1
16 00A0052 ZL50C.12A-17 气压表接头 Airgauge joint 1
17 82A0247 垫片 Spacer 1
18 12B0036 GB3452.1-92 O形圈 O-ring 5.3×1.8 1
