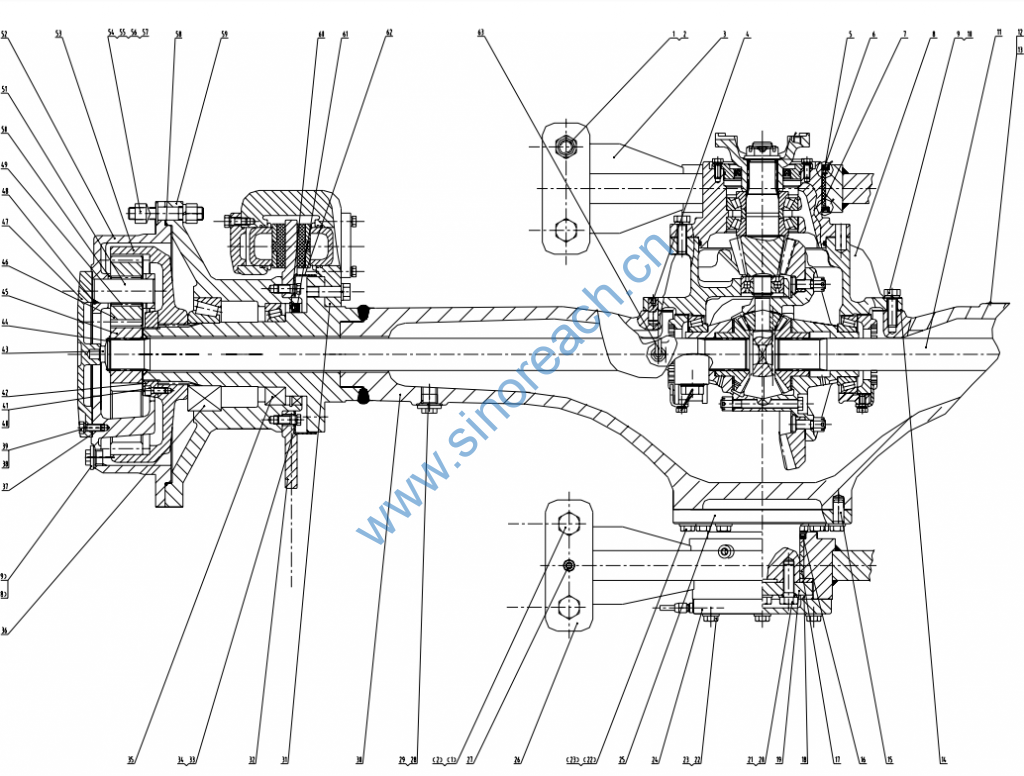

CLG842 01E0014 后桥总成 Rear Axle Assembly

1 01B0167 GB5785-86 螺栓 Bolt M24×2×130-10.9-Zn.
D
8
2 03B0200 CB082428-3 锁紧螺母 Lock nut M24×2 8
3 24D0047 前摆动支架 Front swinging bracket 1
4 60A0011 ZL50C.2-26 定位销 Locating pin 2
5 34C0087 ZL50F.3.4 密封圈 Seal ring 2
6 00A0259 ZL50C.3-1 卡环 Snap ring 1
7 83A0045 ZL50F.3.3-1 衬套 Bush 1
8 41C0030 后桥主传动 Rear axle main transmission 1
9 00B0245 GB5783-86 螺栓 Bolt M16×50-10.9-Zn.D 14
10 06B0177 GB93-87 淬硬垫圈 Quench hardening washer 16 14
11 62A0024 半轴 Half shaft 1
12 09B0002 GB827-86 铆钉 Rivet 2×5 4
13 74A1184 桥铭牌 Axle nameplate 1
14 81A0030 密封垫 Gasket 1
15 66A0013 ZL50F.3-8 销 Pin 2
16 35C0047 ZL50F.3.2 密封圈 Seal ring 1
17 83A0083 ZL50F.3.1-1 衬套 Bush 1
18 83A0157 ZL50F.3-6 止推垫片 Thrust plate 2
19 56A0088 ZL50F.3-5 压紧板 Locking plate 1
20 00B0159 GB5783-86 螺栓 Bolt M18×55-10.9-Zn.D 4
21 06B0102 ZL50F.3-4 淬硬垫圈 Quench hardening washer 4
22 00B0057 GB5783-86 螺栓 Bolt M14×45-8.8-Zn.D 20
23 06B0103 ZL50F.3-2 淬硬垫圈 Quench hardening washer 20
24 53A0073 ZL50G.3.1-1 盖 Cover 1
25 61A0109 ZL50F.3-7 后支承轴 Rear support trunnion 1
26 24D0048 后摆动支架 Rare swinging bracket 1
27 00A0260 ZL50CIII.3-2 销 Pin 2
28 06B0055 JB982-77 组合密封垫圈 Combination sealing gasket 27 4
29 03B0212 螺塞 Screw plug 4
30 24D0007 桥壳轮边支承
轴
Wheel support shaft of axle
housing
1
31 45C0005 ZL50C.2.2A 夹钳总成 Clamp assembly 2
32 52A0038 ZL40B.2-19 制动盘 Brake disk 2
33 00B0273 GB5783-86 螺栓 Bolt M14×40-8.8-Zn.D 40
34 06B0013 GB93-87 垫圈 Washer 14 40
35 23B0001 GB/T297-94 圆锥滚子轴承
32022
Tapered roller bearing 32022 110×170×38 2
224
36 23B0010 GB/T297-94 圆锥滚子轴承
32221
Tapered roller bearing 32221 105×190×53 2
37 81A0026 ZL40B.2-17 密封垫 Gasket 2
38 06B0008 GB93-87 垫圈 Washer 12 12

39 00B0017 GB5783-86 螺栓 Bolt M12×30-8.8-Zn.D 12
40
04B0022 GB70-85 螺钉 Screw M10×25-8.8- 氧 化
Oxidation
4
41 06B0002 GB93-87 垫圈 Washer 10 4
42 03B0010 ZL50C.2-22 圆螺母 Round nut 2
43 61A0019 ZL50C.2-20 轴 Shaft 2
44 07B0028 GB894.1-86 挡圈 Retainer ring 55 2
45 41A0034 太阳轮 Sun gear 2
46 41A0036 行星齿轮 Planet gear 6
47 53A0064 ZL40B.2-16 盖 Cover 2
48 20B0026 GB308-84 钢球 Steel ball 9.525 6
