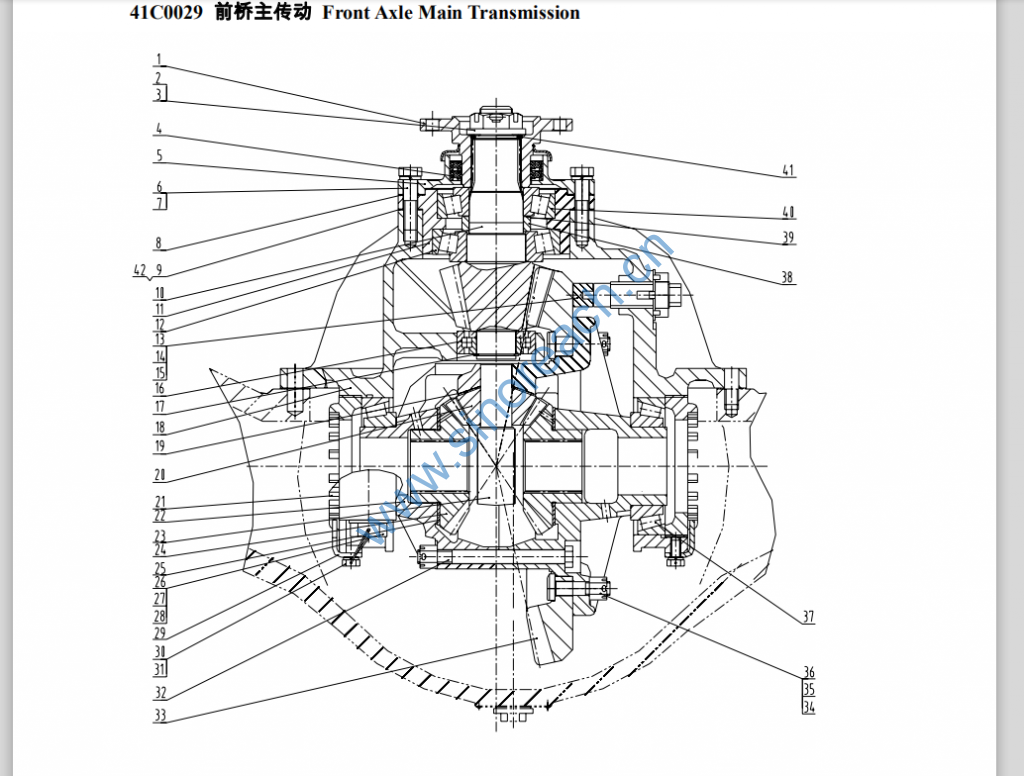

CLG842 41C0029 前桥主传动 Front Axle Main Transmission

1 12D0032 ZL50G.3A.1.1 输入法兰 Input flange 1
2 03B0050 BS305-31 带槽螺母 Castle nut 1
3 08B0032 GB91-86 销 Pin 6.3×60 1
4 13B0169 BLSL348203 油封 Oil seal 70×95×13 1
5 53A0307 密封盖 Seal cover 1
6 00B0275 GB5783-86 螺栓 Bolt M14×55-8.8-Zn.D 8
7 06B0013 GB93-87 垫圈14 Washer 14 14 8
8 80A0021 ZL50C.2.1-3 垫密片 Gasket 1
9 57A0024 ZL50C.2.1-4 调整垫片 Adjusting shim 1
10 43A0014 前桥主动螺旋锥齿
轮
Drive helical bevel gear of
front axle
1
11 55A0077 ZL50C.2.1-6 轴承套 Bearing shell 1
12 23B0019 GB/T297-94 圆锥滚子轴承
31312
Tapered roller bearing 31312 60×130×33.5 1
13 44C0019 ZL50C.2.1.2 止推螺栓 Thrust bolt 1
14 03B0154 GB6173-86 螺母 Nut M27×2-04-Zn.D 1
15 76A0011 ZL50C.2.1-7 锁紧片 Lock sheet 1
16 22B0006 NUP2208ET NSK圆柱滚子轴承 NSK cylindrical roller bearing 40×80×23 1
17 07B0038 GB894.1-86 挡圈 Retainer ring 40 1
18 34C0002 ZL50C.2.1.3 托架总成 Bracket assembly 1
19 56A0089 ZL50C.2.1-8 锥齿轮垫片 Bevel gear gasket 4
20 43A0002 ZL50C.2.1-9 锥齿轮 Bevel gear 4
21 03B0062 ZL50C.2.1-10 调整螺母 Adjusting nut 2
22 34C0003 ZL50C.2.1.4 差速器壳 Differential case 1
23 63A0005 ZL50C.2.1-11 十字轴 Cross 1
24 43A0016 半轴齿轮 Half axle gear 2
25 56A0042 ZL50C.2.1-13 半轴齿轮垫片 Half axle gear gasket 2
26 02B0015 GB32.1-88 螺栓 Bolt M22×100-8.8-Zn.D 4
27 06B0270 淬硬垫圈 Quench hardening washer 4
28 40B0006 铁丝φ1.5×450 Wireφ1.5×450 2
29 21A0040 ZL50C.2.1-14 锁紧片 Lock sheet 2
30 02B0012 GB32.1-88 螺栓 Bolt M10×20-8.8-Zn.D 2
31 06B0002 GB93-87 垫圈10 Washer 10 10 2
32 01B0041 ZL50C.2.1-15 螺栓 Bolt 8
33 43A0015 前桥大螺旋锥齿轮 Major helical bevel gear of
front gear
1
34 01B0042 ZL50C.2.1-17 螺栓 Bolt 12
35 03B0156 GB9457-88 螺母 Nut M14×1.5-8-Zn.D 20
221
36 08B0040 GB91-86 销 Pin 3.2×30 20
37 23B0012 GB/T297-94 圆锥滚子轴承
32216
Tapered roller bearing 32216 80×140×35.25 2
38 55A0078 ZL50C.2.1-18 轴套 Bearing bush 1
39 57A0027 ZL50C.2.1-19 垫片 Spacer 1
40 23B0018 GB/T297-94 圆锥滚子轴承
31311
Tapered roller bearing 31311 55×120×31.5 1
41 12B0105 GB3452.1-92 O形圈 O-ring 42.5×5.3 G 1
42 81A0072 垫片 Spacer 1
