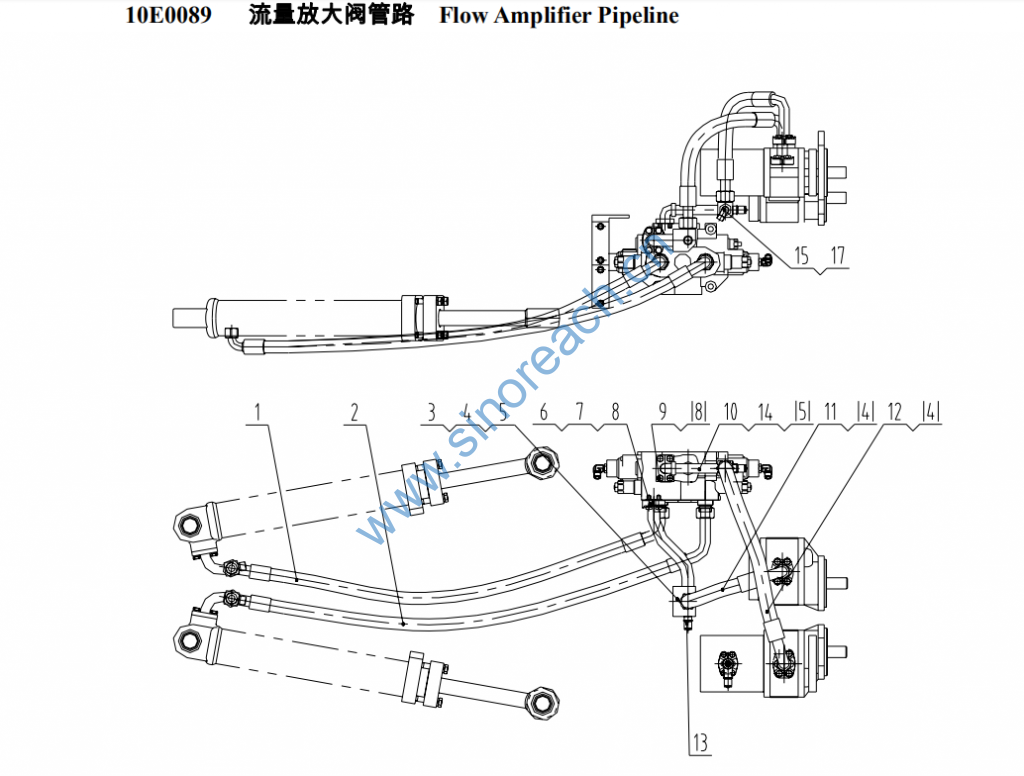

CLG842 10E0089 流量放大阀管路 Flow Amplifier Pipeline

1 06C0154 软管总成 Hose assembly 1
2 06C0401 软管总成 Hose assembly 1
3 10D0325 钢管总成 Steel pipe assembly 1
4 12B0251 GB3452.1-92 O 形圈 O-ring 30×3.55 3
5 12B0292 GB3452.1-92 O 形圈 O-ring 21.2×1.8 2
6 72A0027 ZL50C.9.17-6 压板 Pressboard 3
7 00B0019 GB5783-86 螺栓 Bolt M10×30-8.8-Zn.D 12
8 06B0002 GB93-87 垫圈 Washer 16
9 00B0012 GB5783-86 螺栓 Bolt M1100×25-8.8-Zn.D 4
10 10D1327 钢管总成 Steel pipe assembly 1
11 07C0095 软管总成 Hose assembly 1
12 07C0096 软管总成 Hose assembly 1
13 44C0022 SMK20-M14×1.5-PC 测压接头 Pressure measuring 1
189
joint
14 12B0271 GB3452.1-92 O 形圈 O-ring 25.8×3.55 1
15 31C0236 可调接头 Adjusting joint 1
17 12B0285 GB3452.1-92 O 形圈 O-ring 10.6×1.8 1
